urmet domus 1086 Installation Booklet

DS1086-017A
GEAR ACCESSORIES FOR SCANDINAVIAN
CYLINDER
Ref. 1086/27
FIRST INSTALLATION BOOKLET
1.

GENERAL DESCRIPTION

The Gear Ref. accessories 1086/27 allow the installation of the Sclak Gear
Ref. 1086/22 on doors with Scandinavian type cylinders.
2.

PACK CONTENTS

• Scandinavian cylinder adapter
• Bracket
• Closing plate
• 1.5mm male Allen key
• Torx key
• M3x6mm hex grub
• 2 x M5x30 mm screws
• 2 x M5x90 mm screws
• Latch
• Installation booklet
3.

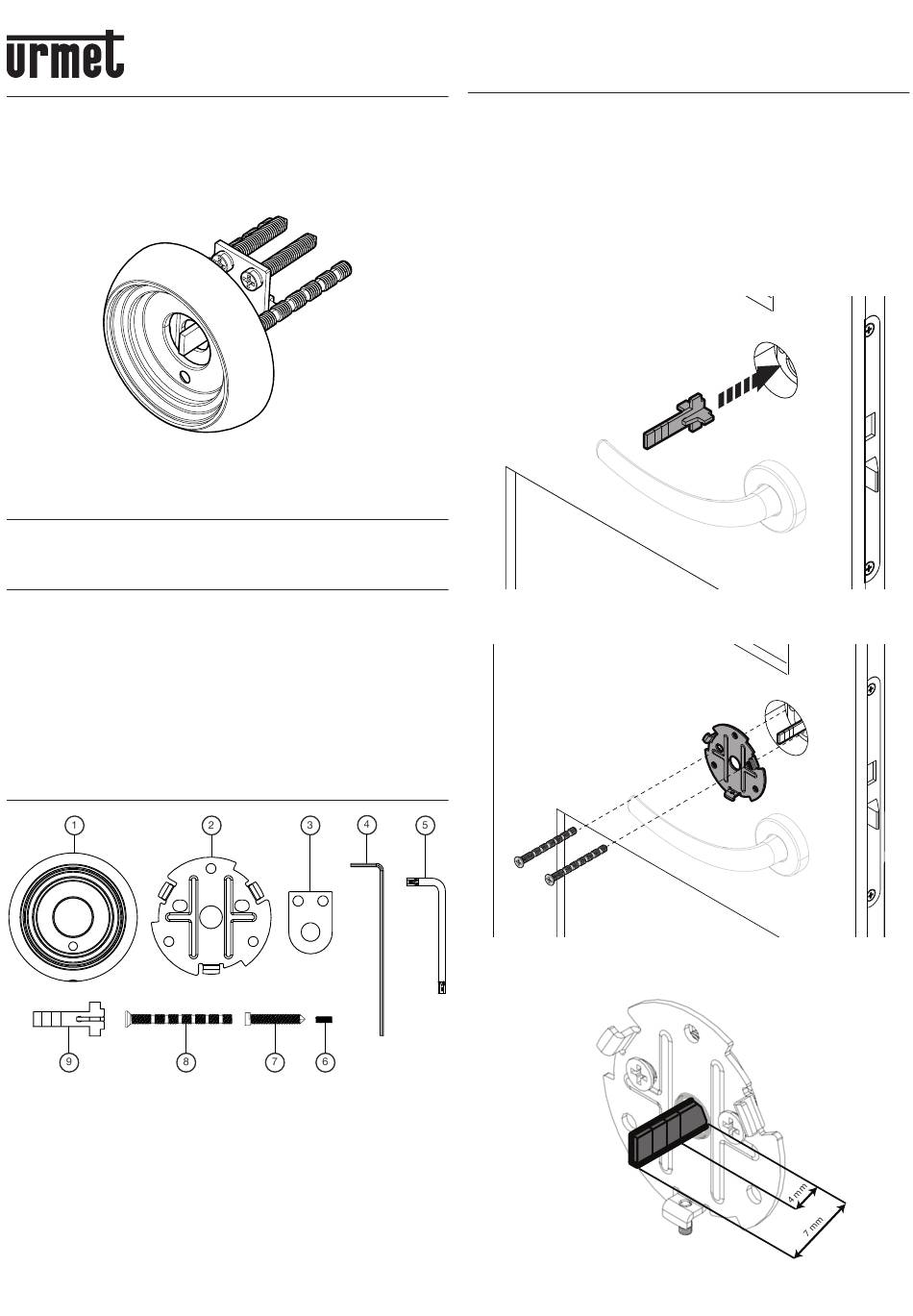

PARTS DESCRIPTION

1. Scandinavian cylinder adapter
2. Bracket
3. Closing plate
4. Allen key
5. Torx key
6. Hex grub
7. M5x30 mm screw
8. M5x90 mm screw
9. Latch
Mod.
4. INSTALLATION OF GEAR Ref. 1086/27
ACCESSORIES AND SCLAK GEAR Ref.
1086
1086/22 DEVICE
WARNING! Urmet S.p.a shall not be held liable for damage or
LBT21315
malfunctions of any nature deriving from or in any way connected to
installations not carried out following these instructions or by unskilled
personnel. This disclaimer also extends to the product warranty period.
Before installing, check that the distance between the door edge
and the center of the Scandinavian cylinder adaptert (present in Gear
accessories Ref. 1086/27) is at least 31 mm.
The following are the methods for the first installation of a Sclak Gear
Ref. 1086/22 device with Gear Ref. 1086/27 accessories on Scandinavian
cylinder.
1. At the front of the cylinder insert the latch provided with the accessories
for Gear Ref.1086/27.
2. Carry out a fastening test of the bracket (supplied with the Gear Ref.
1086/27 accessories) in order to measure and mark the correct length
of the latch.
The latch must be from a minimum of 4 mm to a maximum of 7 mm
3.
from the bracket, depending on the thickness of the door, in order to
correctly mount the Sclak Gear Ref. 1086/22.
