DS1086-038A
BLUETOOTH SCLAKGEAR SEGURDOMA
Ref. 1086/31
INSTALLATION HANDBOOK
1.
GENERAL DESCRIPTION
The SCLAK Gear Universal Bluetooth Ref. 1086/31 is an electric knob with an
elegant and modern design. The device is compatible with all euro cylinder
locks for both traditional and armoured doors.
The SCLAK Gear works via Bluetooth 4.0 technology with all smartphones
running iOS 8 or later or Android 4.3 or later. The device is managed from
a smartphone via the dedicated Sclak app. For added convenience, in
addition to the app, the door can also be opened or closed from the inside
by pressing the relevant buttons on the Sclak Gear. Its ease of installation
and use makes it the ideal solution for the front door of your home or a room
in a tourist facility.
2.
PACKAGE CONTENTS
• SCLAK Gear Universal Bluetooth Ref. 1086/31
• Card with activation code
• 2 rechargeable lithium batteries 3.7V
device)
• 2 Locking screws for the outer casing
• TSP screw M4X8 mm UNI7688
• Conical serrated washer 4 mm DIN 6798 V
• USB-C adapter
• Installation handbook
3.

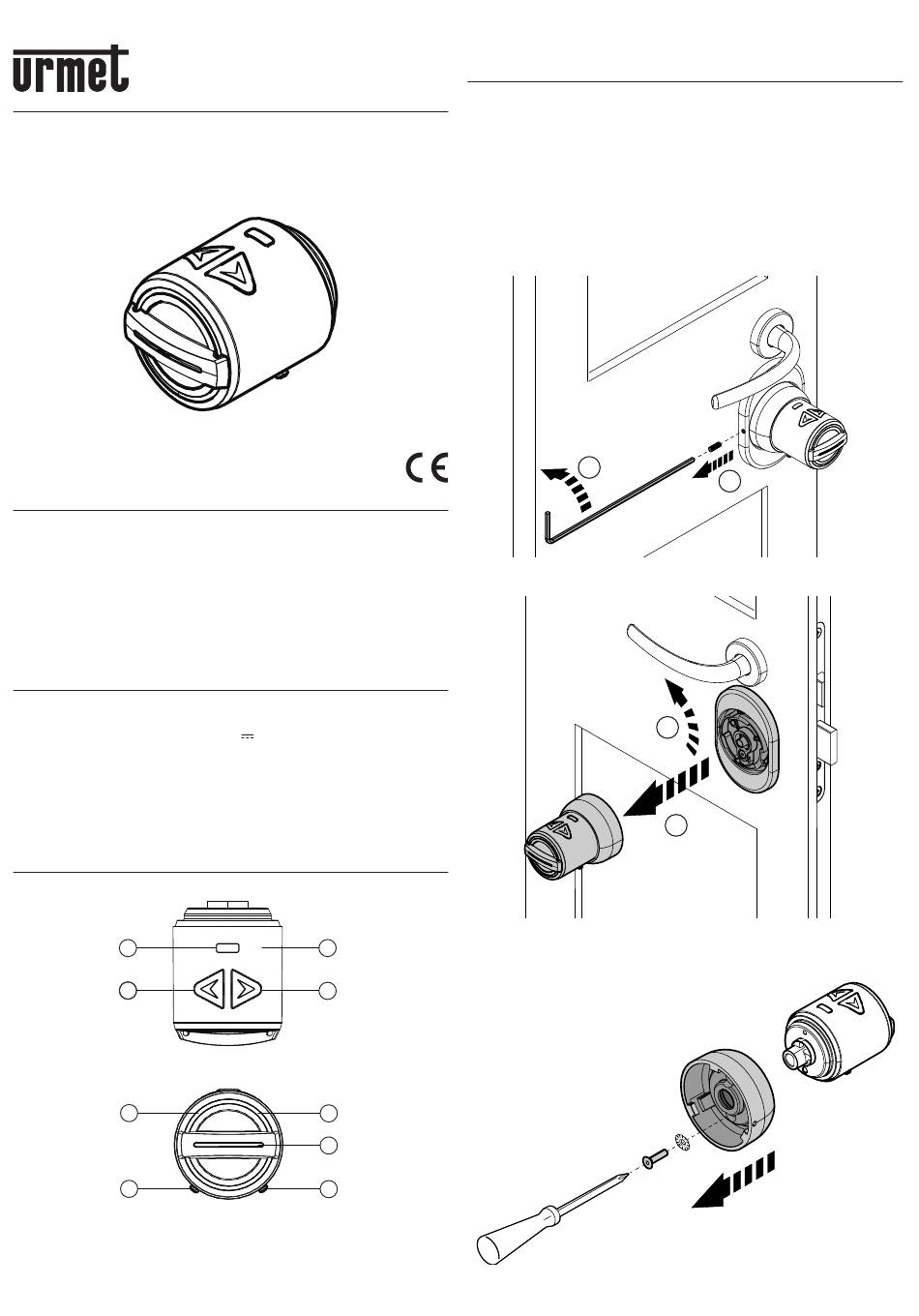

DESCRIPTION OF PARTS
2
1
1
5
7
1.
Lock opening button
2.
MicroUSB port for battery charging
3.
Outer casing
4.
Lock closing button
5.
Signalling LED
6.
Top cover
7.
Locking screws
ICR17335J (inserted in the
TOP VIEW
3
4
FRONT VIEW
5
6
7
Mod.
4.
REPLACEMENT OF A SCLAK GEAR
REF. 1086/31
1086
WARNING! Urmet S.p.a. denies all liability for damage or malfunctions
of any kind arising from or in any way connected with installations
carried out in ways different from or contrary to these instructions or
LBT21341
by unskilled personnel. This exclusion of liability also extends to the
warranty period of the product.
The following are the steps to replace a Sclak Gear according to the type of
door and Gear accessories used.
TRADITIONAL OR ARMOURED DOOR WITH GEAR ACCESSORIES FOR
EURO CYLINDER LOCK INSTALLED REF. 1086/25
1.
Using the hexagonal Allen key (included with Gear accessories Ref.
1086/25), loosen the grub screw (M3x6) until the Sclak Gear is loose.
2.
Remove the Sclak Gear to be replaced from the bracket.
3.
Rotate the device and on the inside, unscrew the lower M4x8 screw
and the serrated washer with a screwdriver to separate the cylinder lock
adapter from the Sclak Gear to be removed.
A
B
A
B
