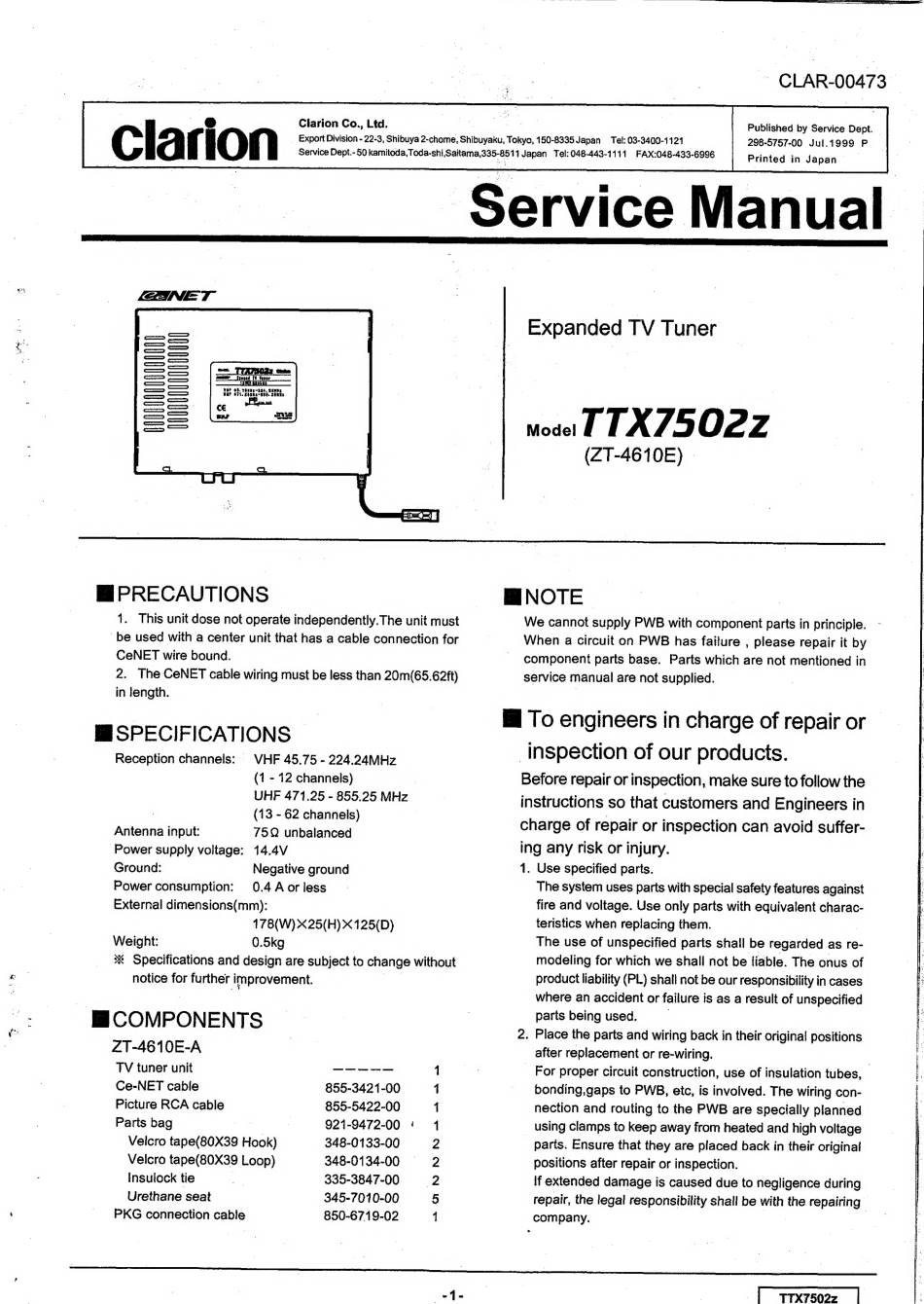

Clarion TTX7502Z Service Manual

~ CLAR00473°
Clarion Co., Ltd.
Published by Service Dept. ©
298-5757-00 Jul.1999 P
Printed in Japan
Export Division - 22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150-8335 Japan Tel: 03-3400-1121
Service Dept.- 50 kamitoda, Toda-shi,Saitama,335-8511 Japan Tel: 048-443-1111 FAX: 048-433- "6996
Expanded TV Tuner
ad TY hi
AP $B. 7ONnz~236, SamDs
IP 471. BUnua 808. 20nR8
uoae 1 TX75O02Z
(ZT-4610E) ©
Mi PRECAUTIONS
1. This unit dose not operate independently. The unit must
be used with a center unit that has a cable connection for
CeNET wire bound.
2. The CeNET cable wiring must be less than 20m(65.62ft)
in length.
MNOTE.
We cannot supply PWB with component parts in principle.
When a circuit on PWB has failure , please repair it by
component parts base. Parts which are not mentioned in
service manual are not supplied.
Mi To engineers in charge of repair or
Inspection of our products.
Before repair or inspection, make sure to follow the
instructions so that customers and Engineers in
charge of repair or inspection can avoid suffer-
ing any risk or injury.
1. Use specified parts.
The system uses parts with special safety features against
MISPECIFICATIONS
Reception channels: VHF 45.75 - 224.24MHz
(1 - 12 channels)
UHF 471.25 - 855.25 MHz
: (13 - 62 channels)
Antenna input: 75Q unbalanced
Power supply voltage: 14.4V
Ground: Negative ground
Power consumption: 0.4 Aor less
External dimensions(mm):
178(W) X25(H) X125(D)
Weight: 0.5kg
* Specifications and design are subject to change without
notice for further improvement.
a COMPONENTS
fire and voltage. Use only parts with equivalent vor
teristics when replacing them.
The use of unspecified parts shall be regarded as re-
modeling for which we shall not be liable. The onus of
product liability (PL) shall not be our responsibility i in cases
where an accident or failure is as a result of unspecified
parts being used. |
2. Place the parts and wiring back in their original positions
is
| Trx7502z_ |
