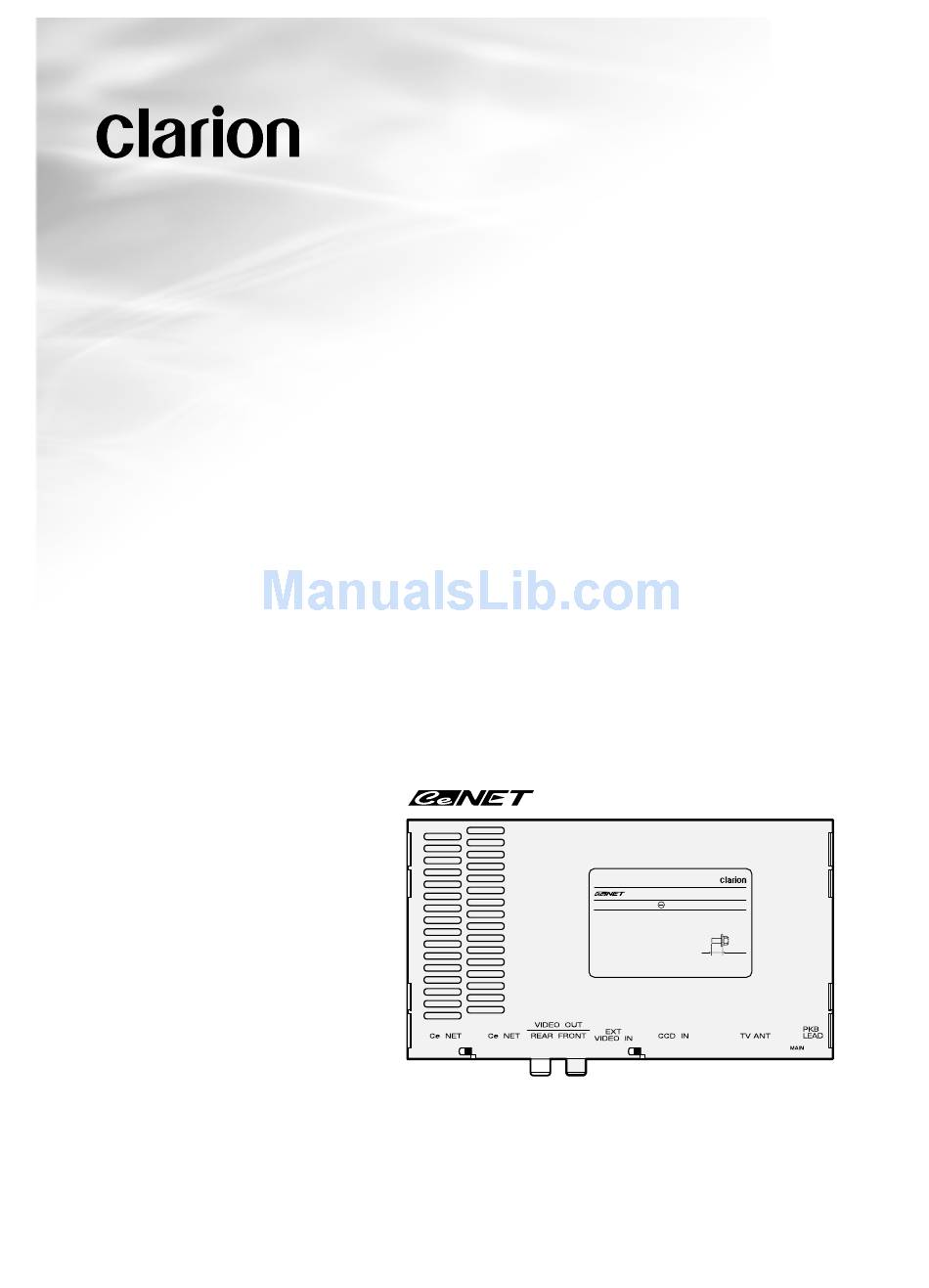

- Page 1 Owner’s manual & Installation manual 使用說明書和安裝說明書 TTX754 CeNET TV TUNER (PAL) CeNET電視調諧器（PAL制式） TTX754 MODEL CeNET TV Tuner 45.75MHz-224.25MHz 471.25MHz-855.25MHz GROUND 8mmMAX 280-8285-00...
-
Page 2: Table Of Contents
English Thank you for purchasing this Clarion product. • Please read this Owner’s manual & Installation manual in its entirety before proceeding with wire connection and installation. • After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). -
Page 3: Precautions
1. PRECAUTIONS • This equipment uses DC 12 V only. Do not use this equipment on 24 V vehicles such as large trucks. • When driving, keep the TV tuner volume down to a level where you can hear sounds from outside the vehicle. •... -
Page 4: Set Countries List
3. SET COUNTRIES LIST The TV area function can be used to set the following country areas. Set Countries Display Title ALBANIA AUSTRIA BELGIUM BOSNIA I H CZECH DENMARK FINLAND GERMANY HUNGARY ICELAND IRELAND ITALY NETHERLNDS NORWAY PORTUGAL RUMANIA SLOVAKIA SLOVENIA SPAIN SWEDEN... -
Page 5: Specifications
4. SPECIFICATIONS Reception channels: VHF CCIR 2 to 12ch UHF CCIR 21 to 69ch 75 Ω unbalanced Antenna input: voltage: 14.4 V Grounding: Negative terminal grounding Power consumption: 0.4 A or less External dimensions: 178 mm (Width) ✕ 25 mm (Height) ✕ 100 mm (Depth) Weight: 0.5 kg * The specifications and design may be subject to change without prior notice due to... -
Page 6: Troubleshooting
5. TROUBLESHOOTING The following symptoms may not be the result of a breakdown, so perform the remedy suggested below before contacting your Dealer for repairs. Symptom No power Wiring is incomplete. No image Parking brake is not engaged. Unclear image from Image output for front and rear seat monitor rear is connected in reverse. -
Page 7: Installation
6. INSTALLATION • Disconnect the battery negative cable before connecting the wiring. • If you are making holes in the vehicle body in order to install the unit, first confirm the position of pipes, tanks and electrical wiring to avoid contact and interference. •... -
Page 8: Wiring Connections
TV displays an image. • If the PKB cable is not connected to the side brake, some units may not operate. For connection of the Clarion CD changer (sold separately) for CeNET use. For connection of the rear seat monitor (sold separately).
