Summary of Contents for NUequipment CRP40 Series

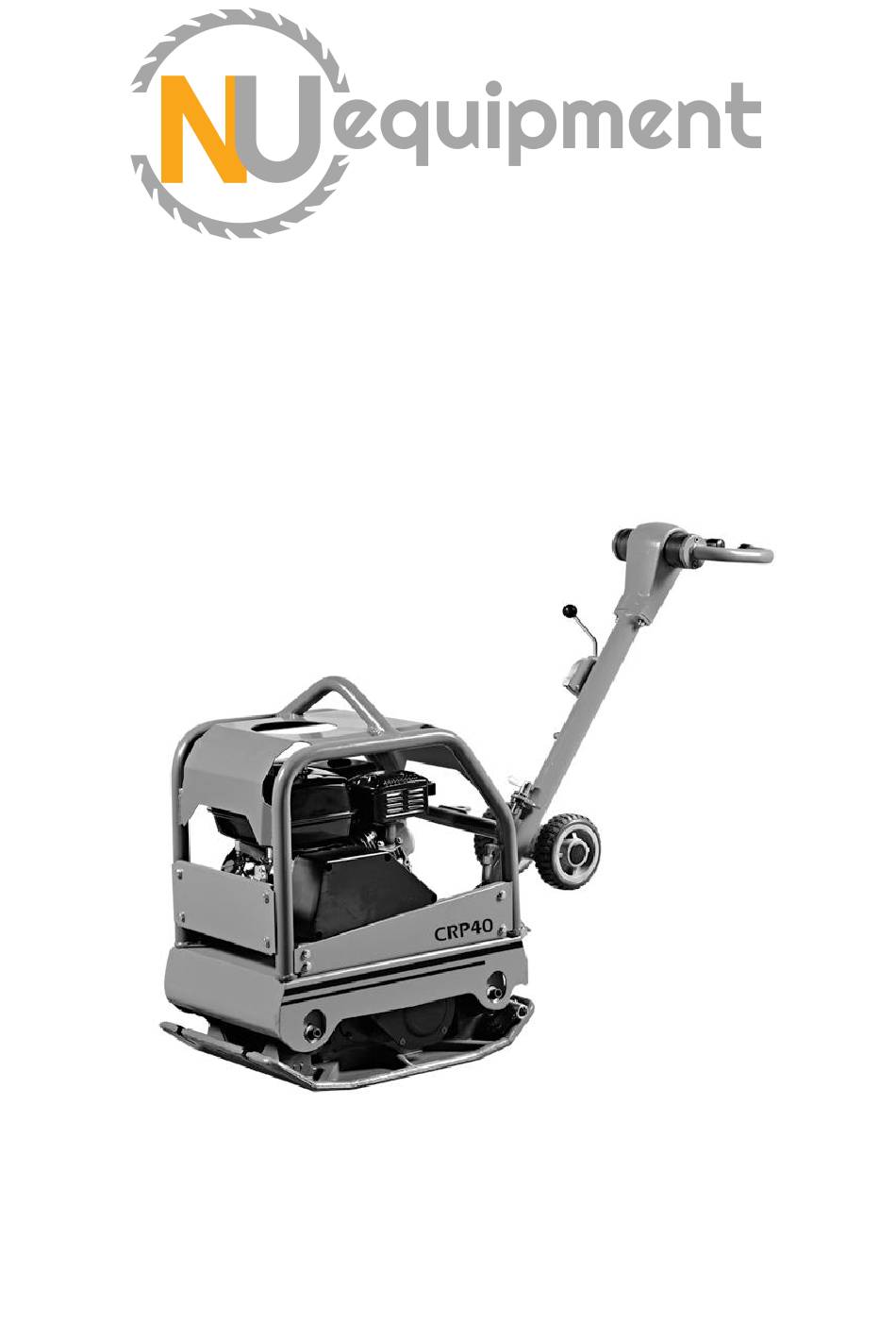

- Page 1 Operator's Manual Hydraulic Reversible Plate Compactor CRP40 Series Unit 2 Low Farm Low Road, Morley St Botolph, Wymondham, United Kingdom, NR18 9BU sales@nuequipment.co.uk 01953 711952 www.nuequipment.co.uk...
-
Page 2: Foreword
Foreword This manual contains important instructions for this machine. These instructions must be followed during installation, operation, and maintenance of the machines. This manual provides information and procedures to safely operate. For your own safety and to reduce the risk of injury, carefully read, understand, and observe all instructions described in this manual. -
Page 3: Table Of Contents
Table of Contents Foreword Warranty 1. SAFETY INFORMATION 1.1 Operating Safety…………………………………………………………………………..5 1.2 Operator Safety while using Internal Combustion Engines……………………………..6 1.3 Service Safety ……………………………………………………………………………….6 1.4 Label Locations………………………………………………………………………………7 1.5 Labels Meaning …………….……………………………….…………………………….8-9 2. OPERATION Start Preparation ….. ……………………………………………………..………….…..…… 2.2 To Start ..………………………..…………………………………………………………… 10-11 Application ………………………………..………………………….……………….…….……... -
Page 4: Safety Information
1. SAFETY INFORMATION 1.1 Operating Safety Only trained personnel are permitted to start, operate, and shut down the machine. They have received instruction on how to properly use the machine and are familiar with required safety devices. Read, understand, and follow procedures in the Operator’s Manual before attempting ... -
Page 5: Operator Safety While Using Internal Combustion Engines
1.2 Operator Safety while using Internal Combustion Engines Do not smoke when refueling the engine or during any other fuel handling operation. Do not run the engine near sparks or open flames. Do not start the engine if fuel has spilled or a fuel odor is present. Move the machine ... -
Page 6: Label Locations
1.4 Label Location... -
Page 7: Labels Meaning
1.5 Label Meanings Our machines use international pictorial labels where needed. These labels are described below: Label Meaning DANGER! Engines emit carbon monoxide; operate only in well-ventilated area. Read the Operator’s Manual for machine information. No sparks, flames, or burning objects near the machine. Shut off the engine before refueling. - Page 8 Label Meaning WARNING! Hand injury if caught in moving belt. Always replace belt guard. CAUTION! Lifting point. Start-Stop. CAUTION! Use only clean, filtered fuel. WARNING! Hot surface! A nameplate listing the model number and serial number is attached to each unit.
-
Page 9: Operation
2. OPERATION 2.1 Start Preparation Before starting the engine, check the following: Fuel level – the tank should be at least half full. Motor oil level. Air filter. Fuel lines for leaks. External screw connections for tightness. ... -
Page 10: Application
2.2.2 Starting for Diesel Engine Open the fuel cock. Move throttle lever to start position. Slowly pull out starter rope until the engine’s compression resistance can be felt. At this point let starter rope slowly return into starter housing. Press the decompression lever to “Non-compression”... -
Page 11: Maitenance
3 MAINTENANCE 3.1 Periodic Maintenance Schedule The chart below lists basic trowel and engine maintenance. Refer to engine manufacturer’s Operator's Manual for additional information on engine maintenance. A copy of the engine Operator's Manual was supplied with the machine when it was shipped. To service the engine, tilt the seat forward. -
Page 12: Lifting And Transporting Trowels
3.3 Lifting and Transporting the machine 3.3.1 Lifting the compactor Use and lifting hook when lifting machine. Make sure lifting device has enough capacity to hold machine (see identification plate on machine for weight). 3.3.2 Use the trolley wheel (if equipped) for short distance transportation. 3.4 Trouble Shooting SYMPTOM POSSIBLE CAUSES... -
Page 13: Technical Data
4. TECHNICAL DATA 4.1 Technical Specification Model CRP40-1 CRP40-2 CRP40-3 CRP40-4 Chinese Diesel Chinese Petrol Engine type Robin EX17 Honda GX160 Engine Engine Power kw(hp) 4.4(6.0) 4.8(6.5) 4.2(5.7) 4.0(5.5) Operating weight kg(lb) 155(342) 136(300) 135(298) 135(298) Frequency rpm 5400 Centrifugal Force kN Travel Speed cm/s(in/s) 22(72) Compaction Depth cm(in) - Page 14 Unit 2 Low Farm Low Road, Morley St Botolph, Wymondham, United Kingdom, NR18 9BU sales@nuequipment.co.uk 01953 711952 www.nuequipment.co.uk Version: 201601-01...
