Operator's Manual
Single Stage

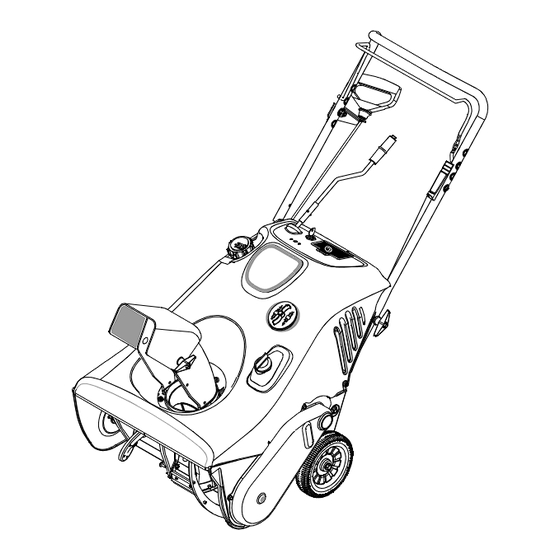

Snow Thrower
Model 721E
IMPORTANT: Read safety rules and instructions carefully before operating equipment.
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 368023 Cleveland, Ohio 44136-9722.
CUB CADET CORP. P.O. BOX 368023 CLEVELAND, OHIO 44136-9722
PRINTED IN U.S.A.
.
770-10542
FORM NO
7/11/01
Advertisement
Table of Contents
Related Manuals for Cub Cadet 721E
Summary of Contents for Cub Cadet 721E
-
Page 1: Snow Thrower
Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 368023 Cleveland, Ohio 44136-9722. CUB CADET CORP. P.O. BOX 368023 CLEVELAND, OHIO 44136-9722 PRINTED IN U.S.A. -
Page 2: Table Of Contents
Customer Dealer Referral Line. Call the Cub Cadet Customer Dealer Referral Line at 1-(800)-528-1009. Please have your unit’s model number and serial number ready when you call. See previous section to locate this information. -
Page 3: Section 1: Important Safe Operation Practices
SECTION 1: IMPORTANT SAFE OPERATION PRACTICES WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. -
Page 4: Maintenance And Storage
Never operate with a missing or damaged discharge chute. Keep all safety devices in place and working. Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas. Do not operate machine while under the influence of alcohol or drugs. -
Page 5: Section 2: Assembling Your Snow Thrower
SECTION 2: ASSEMBLING YOUR SNOW THROWER Unpacking From Carton • Cut along corners of the carton and lay it down flat. Remove packing material. • Remove any loose parts included with unit (i.e., operator’s manual, etc.). • Roll unit out of carton. Check carton thoroughly for any remaining loose part. -
Page 6: Section 3: Know Your Snow Thrower
handle. Hold the “Z” fitting with the pliers, not the cable, to avoid damaging the cable. NOTE: The upper hole in the control handle provides for adjustment in belt tension. Refer to page 9 of this manual for instructions. Assembling Discharge Chute •... -
Page 7: Section 4: Operating Your Snow Thrower
Discharge Chute The angle of the discharge chute controls the distance that the snow is thrown. Tilt the discharge chute up for greater distance; tilt down for less distance. Loosen the hand knob on the side of the discharge chute to adjust. Tilt the chute to the desired position, and tighten the knob. -
Page 8: To Stop Engine
• If you have a grounded three-prong receptacle, proceed as follows. • Rotate choke lever to FULL position. • Connect power cord to switch box on dash panel. Plug the other end of power cord into a three-prong 120-volt, grounded, AC receptacle. •... -
Page 9: Section 5: Making Adjustments
SECTION 5: MAKING ADJUSTMENTS WARNING: NEVER attempt to make any adjustments while the engine is running, except where specified in the snow thrower and/or engine operator’s manuals. Shave Plate • To check the adjustment of the shave plate, place the unit on a level surface. See Figure 8. The wheels, shave plate and augers should all contact level surface. -
Page 10: Section 6: Maintaining Your Snow Thrower
SECTION 6: MAINTAINING YOUR SNOW THROWER WARNING: Before servicing, repairing, or inspecting, disengage all clutch levers and stop engine. Wait until all moving parts have come to a complete stop. Disconnect spark plug wire and ground it against the engine to prevent unintended starting. -
Page 11: Section 7: Off-Season Storage
SECTION 7: OFF-SEASON STORAGE WARNING: Never store engine with fuel in tank indoors or in enclosed, poorly ventilated areas where fuel fumes may reach an open flame, spark or pilot light as on a furnace, water heater, clothes dryer, or other gas appliance. •... -
Page 12: Section 9: Parts List For Model 721E
SECTION 9: PARTS LIST FOR MODEL 721E... - Page 13 For instance, if a part, numbered 700-xxxx, is painted Yellow, the part number to order would be 700-xxxx-0716. Cub Cadet Yellow: 0716 Powder Black: 0637 Ref. No. Part No. Part Description...
- Page 14 For instance, if a part, numbered 700-xxxx, is painted Yellow, the part number to order would be 700-xxxx-0716. Cub Cadet Yellow: 0716 Powder Black: 0637 Description Ref. No. 719-0581...
- Page 15 Cable Tie 736-0451 Saddle Washer 746-0883 Control Housing 747-0956 Auger Bail 749-0711A Upper Handle: Gull Wing Cub Cadet Yellow: 0716 Powder Black: 0637 Part No. Description 710-0276 Carriage Screw: Special 710-0451 Carr. Bolt 5/16-18 x 0.750” 710-3015 Hex Screw 1/4-20 x 0.75”...
-
Page 16: Cleveland, Ohio
There is no other express warranty. Contact your authorized Cub Cadet servicing dealer who sold you your Cub Cadet equipment. If this dealer is not available, see the Consumer Yellow Pages under “lawn mowers” for the name of a dealer near you.
