HEDBOX HED-DC150 User Manual
  1. Manuals
  2. Brands
  3. HEDBOX Manuals
  4. Battery Charger
  5. HED-DC150
  6. User manual

HEDBOX HED-DC150 User Manual

V-mount dual lcd simultanius ups battery charger
Hide thumbs

Advertisement

Quick Links

Download this manual
EN
English
V-Mount Dual LCD Simultanius
UPS Battery Charger

Advertisement

loading
Need help?

Need help?

Do you have a question about the HED-DC150 and is the answer not in the manual?

Questions and answers

Related Manuals for HEDBOX HED-DC150

Summary of Contents for HEDBOX HED-DC150

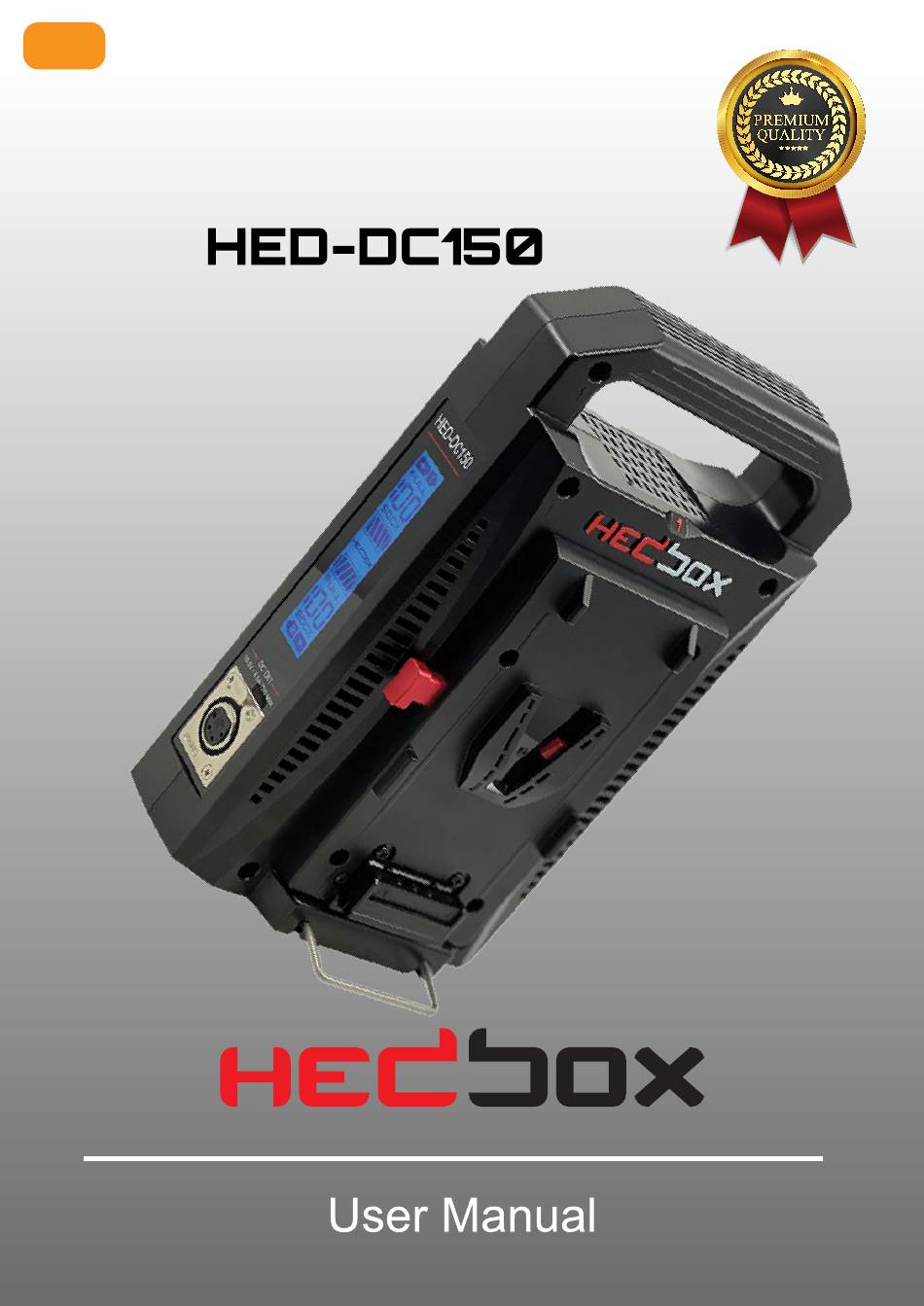

  • Page 1 English V-Mount Dual LCD Simultanius UPS Battery Charger...

  • Page 2: Product Features

    - Short circuit protection & Charging time protection • Dual charging port provides simultaneous charging of two batteries with different capacities. • Specially designed for use on all Hedbox Battery Packs. • Dual charging technology, the CC and CV, provides high battery charging efficiency.

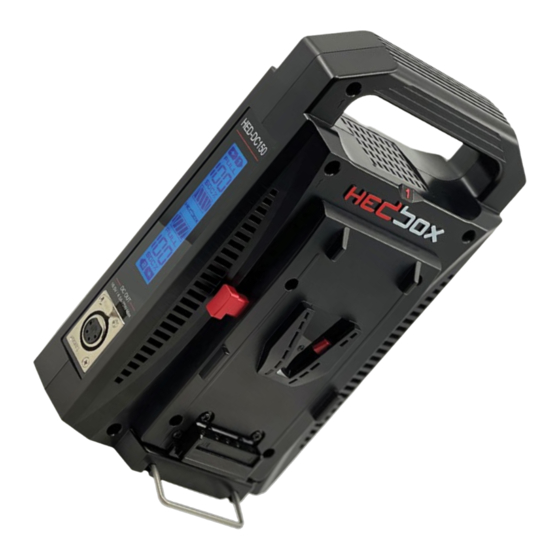

  • Page 3 English Overview Product Components: 1. Main Power switch ON/OFF 2. Power Socket 100V - 240V / 50-60Hz 3. Fan Cooler ( Provides cooling of the unit) 4. LCD Screen Monitor (Blue Backlight Ilumination) 5. CH1 and CH2 Battery Socket Indicator 6.
  • Page 4 2. Plug the other side of the supplied power cord to the charger AC Power (picture C). 3. Turn ON the AC Power Switch (Picture C). 4. The LCD screen will illuminate Blue and the HEDBOX Logo will turn on (picture D) Battery instalation on to the charger: 1.
  • Page 5 English LCD Display Legend Information: Definition Function declaration Channel 1 Displays that the battery is lock on channel 1 UPS mode is active When icon is ON battery is fully charged Batt. Full Displays the current battery capacity Battery in percentage (%) Capacity Charge State Of Charge capacity LOGO...
  • Page 6 English DC Out Powering & UPS Power Bank Mod: 1.To power any broadcast unit with DC 16.4V constant power from XLR DC out, use the supplied RPC-DC4X4 cable with 4-pin XLR (Male to Female) connector. Connect the cable to the female charger DC 4-Pin XLR power out (picture F.) 2.

  • Page 7: Specification

    English Notice • Please check that the components size and voltages are compatible according to your Camcorder DC Voltage Input or battery pack charging voltage and current. Please use the manual instruction of the camcorder or battery pack, and read this manual carefully before using the unit with this AC Adaptor / Charger.
  • Page 8 English Note: Always ensure that the unit is operating properly before use. HEDBOX WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, LIMITED COMPENSATION REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT,...
