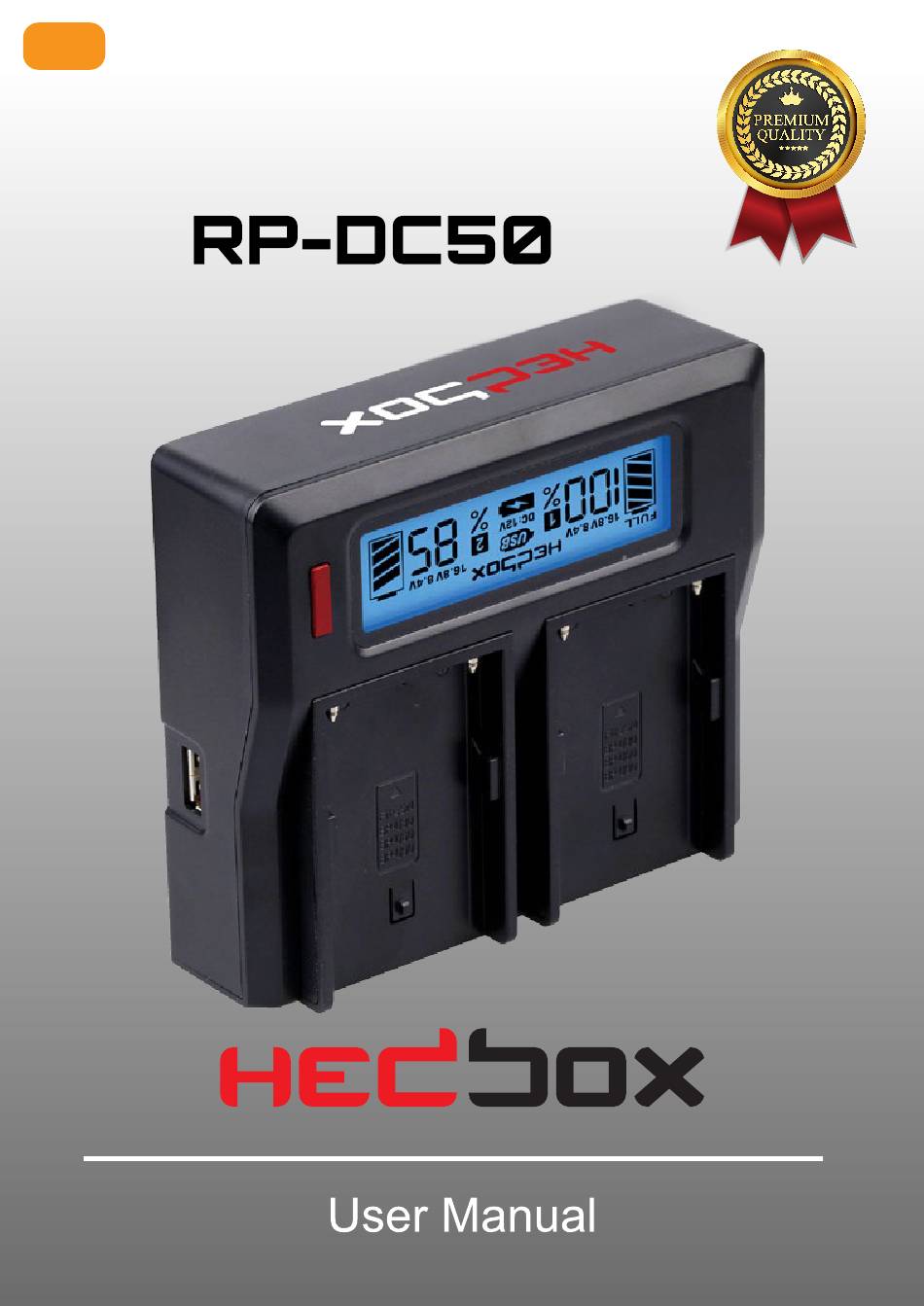

- Page 1 English Dual LCD Battery Charger...
-
Page 2: Product Features

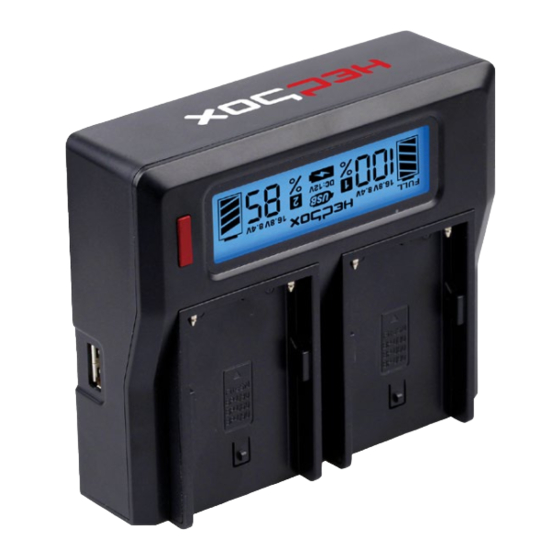

English Thank you for your purchase of the Dual LCD Simulations Battery Charger RP-DC50. • This intelligent Charger for DV Li-Ion Batteries was designed with advanced power charging technology, allowing you to set your battery pack at home, in a studio, or a car. - Page 3 English Overview Product Components: 1. Boost Power switch (Boost code) 2. LCD Screen Monitor (Blue Backlight) 3. Charging Slot #1 4. Charging Slot #2 5. AC Power (100V ~ 240V - 50 / 60Hz) 6. DC 12V / 24V Power Input Socket 7.
-
Page 4: Operation
After installing the battery pack onto the charging socket, the RP-DC50 measures the internal battery cell resistance and starts pre-charging. • Please check that the DV Battery pack is compatible with RP-DC50 power voltage and current. • Be sure that the battery charger plate firmly locks the battery in place. -
Page 5: Lcd Information
English LCD Information Icon Definition Function Declaration When this icon is on, high current charging mode is active Fast speed and provides fast boost charging of the batteries. Fast charging mode charging mode: 1 battery / 1.5 A ; 2 batteries / 0.8 A 8.4 V When it appears, 8.4 V charging mode for DV batteries Charging icon:... - Page 6 • You can use your Dual Digital Battery Charger RP-DC50 to power USB devices while charging your DV Battery. Plug the USB-A cable of your device to the USB-A port of the RP-DC50 charger. The USB sign on the LCD will pop up. USB is active in both charging modes, the boost and regular.
-
Page 7: In Car Use
12V-24V DC power is supplied. NOTE: • When using Battery Charger Plate RP-DBPU or (charging HED-BP75D or HED-BP95D) or RP-BPA60 (charging HED-A60) or any other 14.4V battery you need to power RP-DC50 with 24V DC Power Supply. Specification AC Power Input:... - Page 8 English Note: Always ensure that the unit is operating properly before use. HEDBOX WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, LIMITED COMPENSATION REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT,...
- Page 9 We Power Your Bussines NINA HED-BPU NERO Series BATTERY CHARGERS...
- Page 10 HED-A60 RP-BP975 RP-VBD78 RP-LPE6H UNIX HOLD II 4CH CHARGER...
