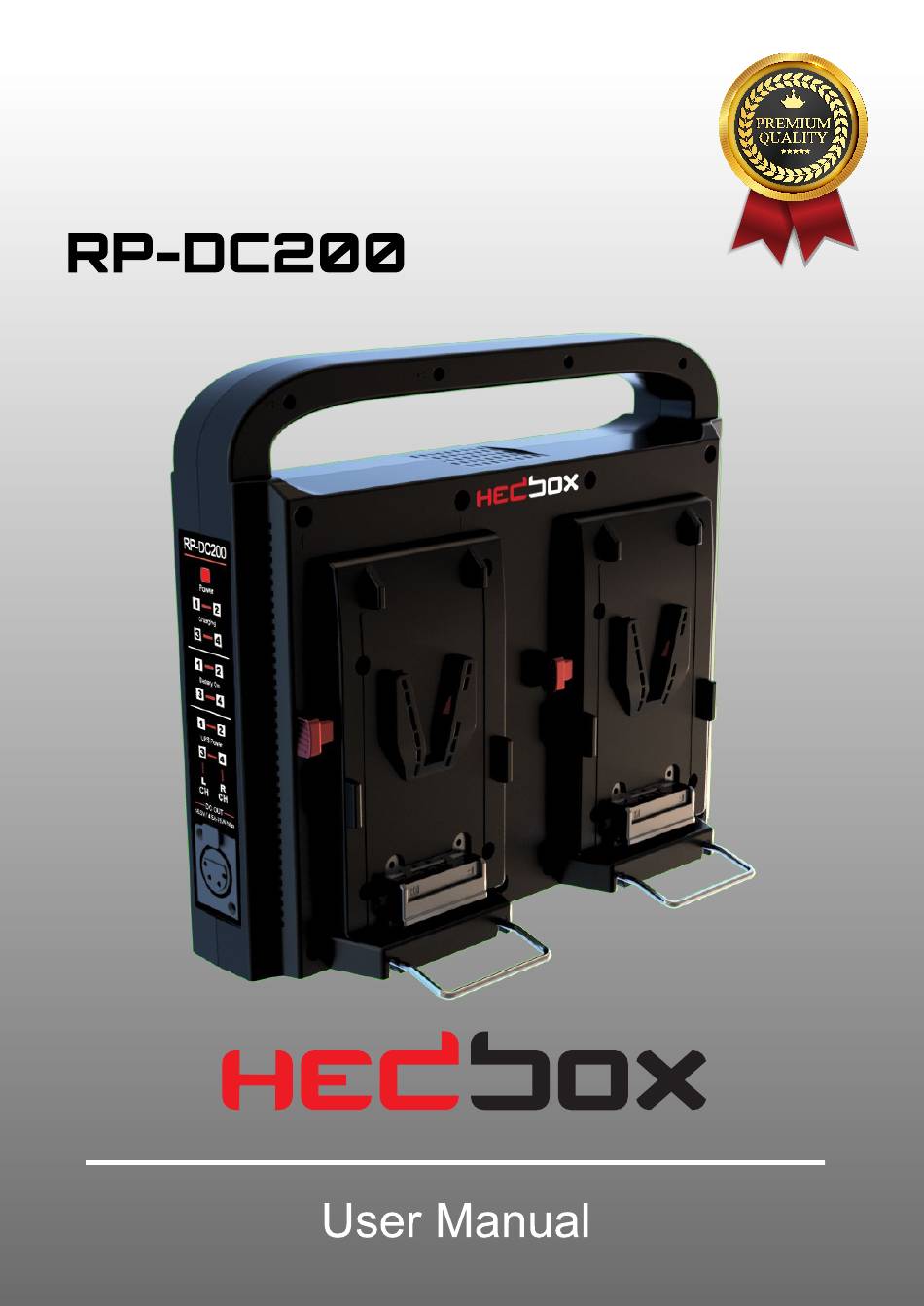

- Page 1 V-Mount Quad Simultanius UPS Battery Charger...
-
Page 2: Important Safety Instructions
English Thank you for your purchase of the HEDBOX battery charger. This intelligent charger for digital camera and camcorder batteries was designed with advanced power charging technology, allowing you to charge your professional batteries at studio or at home. The charger is compatible with Li-Ion rechargeable batteries Please read these operating instructions carefully before operating this unit to charge battery pack. - Page 3 English Product Confirmity Regulations • This symbol is intended to alert the user that the product conforms to all EU directives. • This symbol is intended to alert the user that the product may not be treated as household waste. •...
-
Page 4: Product Features
- Over current protection - Short circuit protection & Charging time protection • Specially designed for use on all Hedbox Li-Ion Battery Packs. • Dual charging technology, the CC and CV, provides high battery charging efficiency. • Pre-charging function 0V activation efficiently extends battery life. - Page 5 English Overview Product Components: 1. Main Power switch ON/OFF 2. Power Socket 100V - 240V / 50-60Hz 3. Fan Cooler ( Provides cooling of the unit) 4. Power LED Indicator (Red Color status charger unit is ON) 5. Battery Charging LED Status 6.
- Page 6 Power 1.Plug the Power Cord on the wall AC power (picture B). 2. Plug the cord on the RP-DC200, and turn ON the AC Power Switch (picture C). 3. The “Power” LED indicator will illuminate Red during AC power. Battery instalation on to the charger: 1.On the bottom of the Charger use and...
- Page 7 English LED Display Legend Information: 1. When you insert battery to the charger, LED “Battery On” indicator illuminates BLUE, which indicates that the battery is ready for charging. The charger has four charging plates, that on the LED Indication screen is indicated as CH1, CH2, CH3 or CH4. After insertion of one (1) or two (2) batteries on the charger,charging process starts automatically with 3A±400mAh (Dual Mode).
- Page 8 3. If you turn OFF the main power switch on the charger, or unexpected main electric power failure occurs (AC input is cut off), Charger RP-DC200 with the inserted battery will automatically go to the UPS BACK UP POWER MODE. In this case, the RP-DC200 provides power to the DC Out from the battery that is attached to the charger, the “UPS Power”...
-
Page 9: Specification
Product registration and verification To verify your product and proceed with registration, please follow the next steps • Go and visit the verification section on the Hedbox web page at www.hedbox.com/verification. • Follow the verification procedure... - Page 10 • Compensation for the recording content is not feasible in the event of a malfunction in the battery pack on other devices, preventing shooting or reproduction. • Please note that design and specifications may change without prior notice. If you want to know more about HEDBOX Products please visit our website: www.hedbox.com...
- Page 11 As the aim of Hedbox is to give customers the most updated and state-of-the-art products, it may operate some technical modifications and improvements in time.
-
Page 12: Battery Chargers
We Power Your Bussines NINA HED-BPU NERO Series BATTERY CHARGERS... - Page 13 HED-A60 RP-BP975 RP-VBD78 RP-LPE6H UNIX HOLD II 4CH CHARGER...
