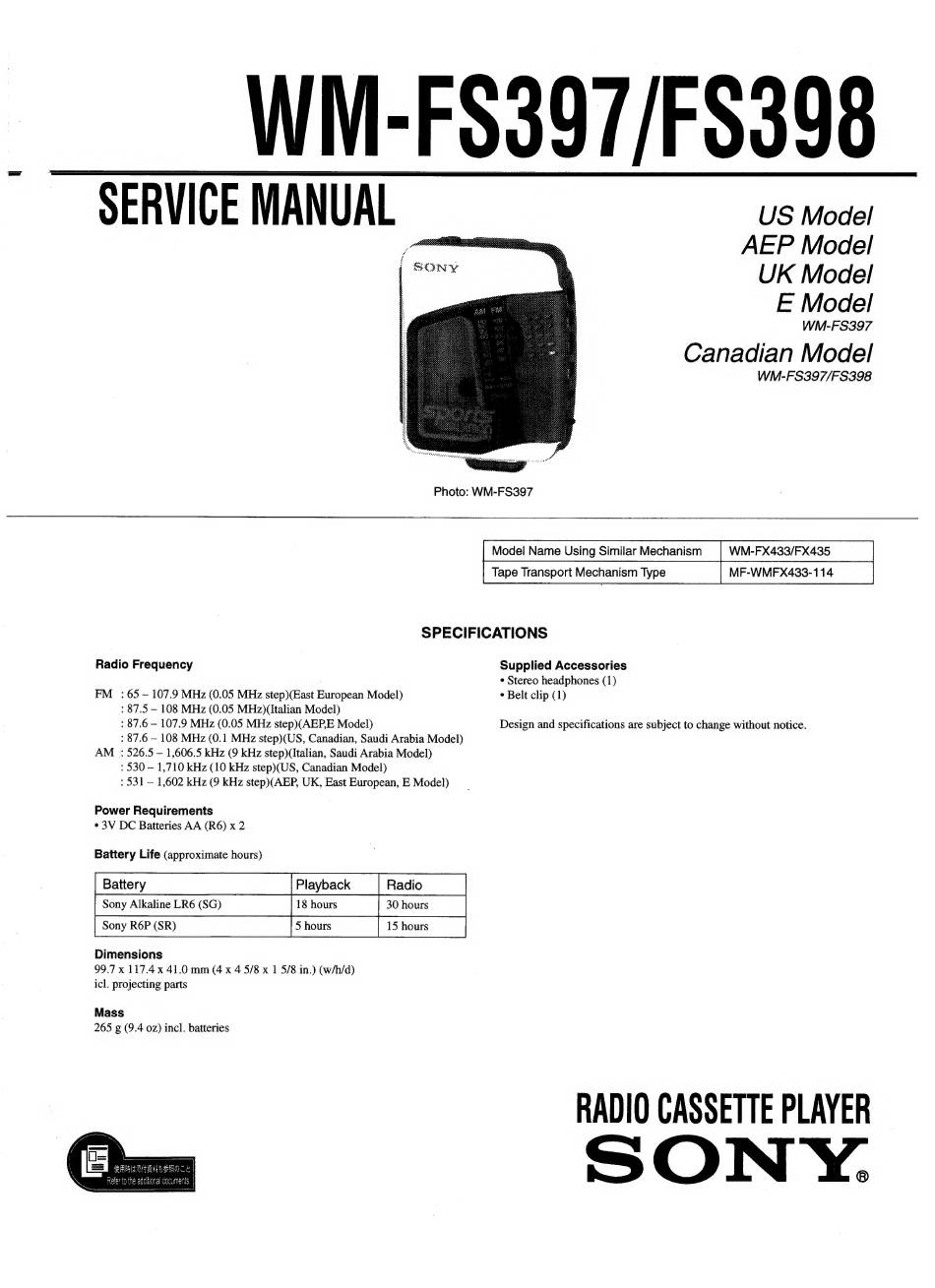

Sony WM-FS397 Service Manual

SERVICE MANUAL US Model
AEP Model
UK Model
E Model
WM-FS397
Canadian Model
WM-FS397/FS398
Photo: WM-FS397
Model Name Using Similar Mechanism WM-FX433/FX435
Tape Transport Mechanism Type MF-WMFX433-114
SPECIFICATIONS
Radio Frequency Supplied Accessories
¢ Stereo headphones (1)
FM _ : 65 ~ 107.9 MHz (0.05 MHz step)(East European Model) * Belt clip (1)
: 87.5 — 108 MHz (0.05 MHz)(Italian Model)
: 87.6 — 107.9 MHz (0.05 MHz step)(AEP,E Model) Design and specifications are subject to change without notice.
: 87.6 — 108 MHz (0.1 MHz step)(US, Canadian, Saudi Arabia Model)
AM : 526.5 — 1,606.5 kHz (9 kHz step)(Italian, Saudi Arabia Model)
: 530 - 1,710 kHz (10 kHz step)(US, Canadian Model)
: 531 — 1,602 kHz (9 kHz step)(AEP, UK, East European, E Model)
Power Requirements
* 3V DC Batteries AA (R6) x 2
Battery Life (approximate hours)
Dimensions
99.7 x 117.4 x 41.0 mm (4 x 4 5/8 x 1 5/8 in.) (w/h/d)
icl. projecting parts
Mass
265 g (9.4 oz) incl. batteries
RADIO CASSETTE PLAYER
SONTYY.
