4023
Users
INSTALLATION
SECTION
II
PART
2
General
Installation
consists
of
desk-mounting
the Terminal,
selecting
the
proper operating
voltage
and
fuse
size,
setting
the desired strap options,
and
connecting the Terminal
to
the
computer. These
steps are discussed
in
the following
paragraphs.
Mounting
the
Terminal
Desk-Mounting
consists of
simply
setting
the
Terminal
on
a
desk
or
other
surface.
The
air
vents
on
the
bottom
and
sides
should be kept
free
of
obstructions
to
permit
air
flow
through
the
unit.
A
dimensional drawing
is
provided
in
Fig.
2-4
as
an
installation
aid.
Selecting
the Operating Voltage
and Fuse
Size
The
Terminal
is
intended
to
be operated
from
a
single-phase
power
source
which
has
one
of
its
current
carrying
conductors
(the
neutral
conductor)
at
ground
12.500
13.125
With
Feet

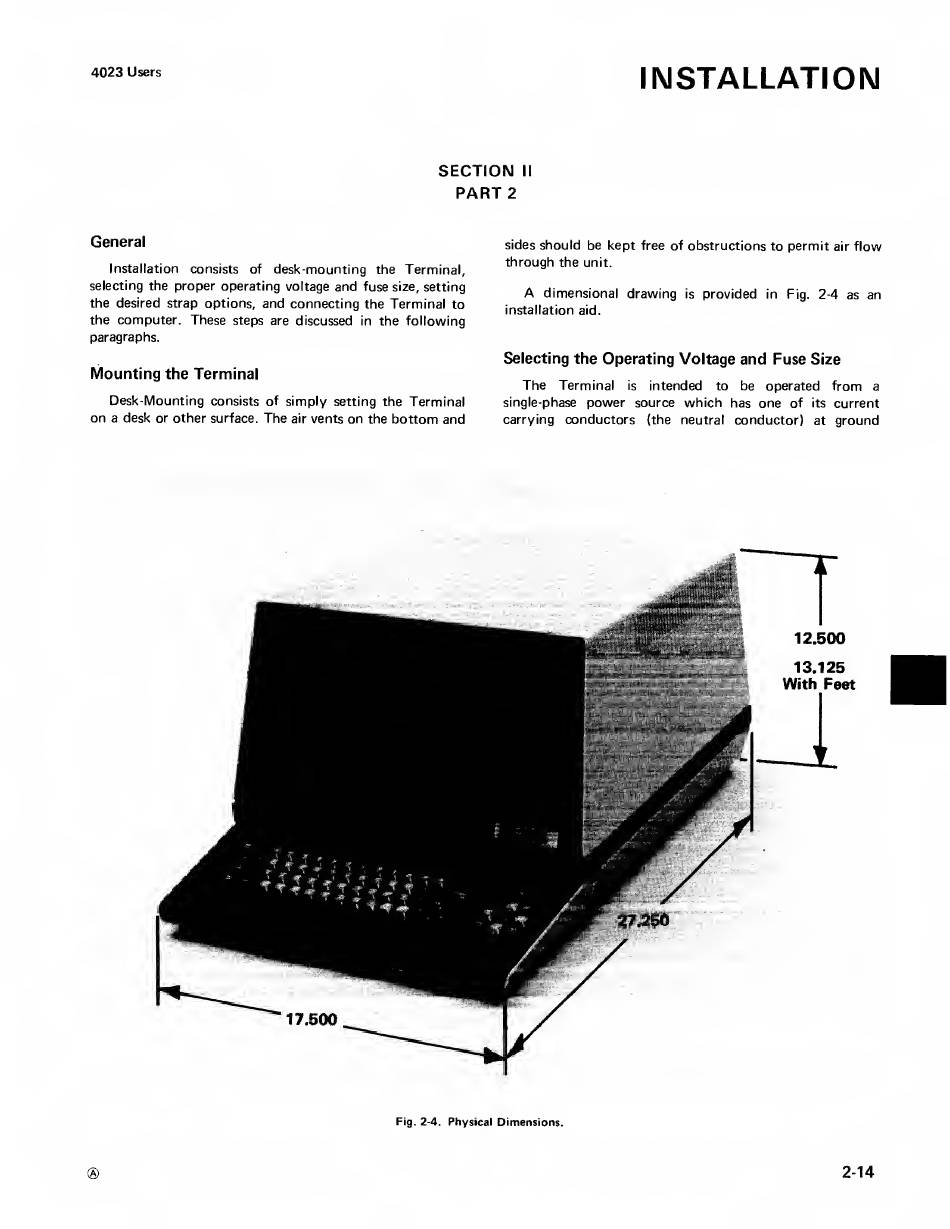

Fig. 2-4.
Physical
Dimensions.
2-14
