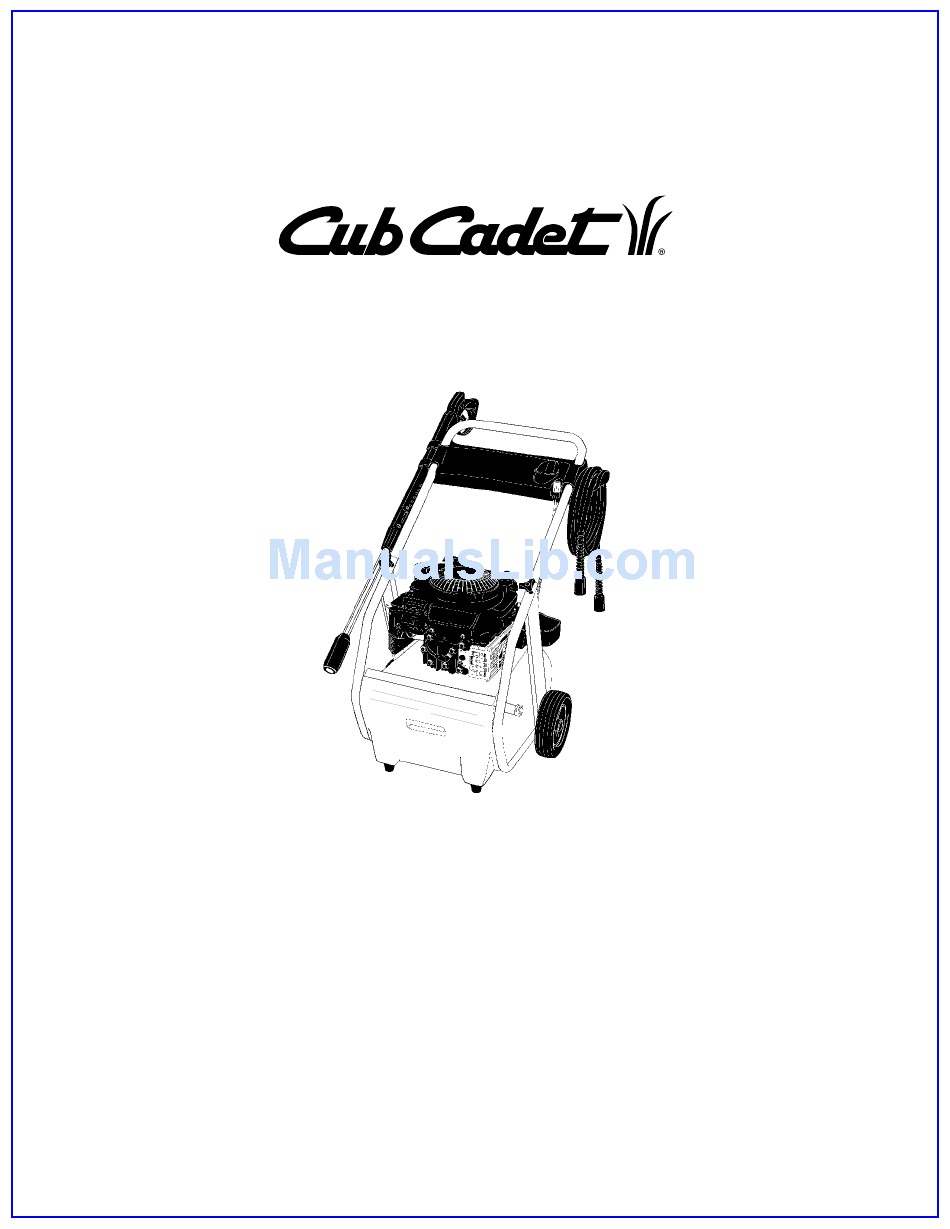

Page 1: High Pressure Washer
Operator’s Manual High Pressure Washer Model 2200H IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY CUB CADET P.O. BOX 368023 CLEVELAND, OHIO 44136-9722 [www.cubcadet.com] FORM NO. 770-10449 (9/00) -
Page 2: Table Of Contents
CONTENTS Overview ...3 Safe Operation Practices ...3 Assembly Instructions ...5 Operating Instructions ...6 Using the Accessories ...7 Working with Detergents ...8 Shut Down and Clean-Up ...9 Taking a Break ...9 Winterizing and Long-Term Storage ...9 Cleaning Tips ...10 Optional Cleaning Accessories ...11 Troubleshooting ...12 Warranty ...16... -
Page 3: Overview
MODEL 2200H OVERVIEW Specifications 6.0 HP Briggs & Stratton Quantum Engine Water volume 2.0 GPM Operating pressure 2200 PSI Item Description Water inlet Detergent tray w/ screw Knob Assembly (two) Oil fill cap High pressure hose Detergent suction tube w/filter... -
Page 4: Safety Warnings
Cub Cadet dealer. • The machine has hot surfaces which can cause burns. Operate the unit in a safe environment and away from children. • Do not allow the high pressure hose to come into contact with the muffler guard. -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS Step1 Slide the handle through the accessory rack. Step2 Align the holes of the accessory rack to the handle and fasten the four screws. Step4 Insert the spray wand into the gun. Push in and turn clockwise to lock spray wand in place. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Step1 Fill tank with unleaded gasoline. Do not use leaded gasoline. Important! Do not run the engine with a high or low oil level as this can cause engine damage. If you have further questions regarding the engine, please refer to the engine’s operating manual included with the unit. -
Page 7: Using The Accessories
OPERATING INSTRUCTIONS - continued Step7 Slide the throttle control to the fast position. Move the ckoke lever to the “CHOKE” position (only if the engine is cool). After starting, move the choke to “RUN”. USING THE ACCESSORIES Spray Wand spray wand allows you to adjust the cleaning pressure. To clean at maximum pressure, the wand must be positioned to the high pressure setting (+). -
Page 8: Working With Detergents
For Cub Cadet Detergents, check your local Cub Cadet dealer. If you need help locating a dealer in your area, contact the Customer Dealer Referral Line by calling:... -
Page 9: Shutting Down & Clean-Up
SHUTTING DOWN & CLEAN-UP Step1 Step2 Remove detergent suction tube Turn off the engine. from container and insert into one gallon of fresh water. Siphon water at low pressure for one minute. Step5 Step6 Disconnect garden hose from the pressure outlet and engage the gun safety lock. water inlet on the unit. -
Page 10: Cleaning Tips
Deck Cleaning (with or without detergent) Pre-rinse deck and surrounding area with fresh water. If using Cub Cadet Deck Wash, place detergent suction tube directly into cleaning solution and apply to surface at low pressure. For best results, limit your... -
Page 11: Optional Cleaning Accessories
Power Equipment & Gardening Tools (with or without detergent) Pre-rinse cleaning surface with fresh water. If using Cub Cadet All Purpose Cleaner or Degreaser, place detergent suction tube directly into cleaning solution and apply detergent at low pressure. Allow Cub Cadet... -
Page 12: Troubleshooting
Engine throttle is not in problems refer to the correct position. engine owners Pressure built up in the manual. high pressure washer. Unit does not reach Diameter of garden hose is high pressure. too small. Water supply is restricted. Not enough inlet water supply Open water source full force. - Page 13 Slide the spray wand extension into the gun. Turn the wand collar clockwise onto the gun threads until tight. Contact your local Cub Cadet dealer. Check that hoses and fittings are air tight. Turn off machine and purge pump by squeezing trigger gun until a steady flow of water emerges through the nozzle.
-
Page 16: Warranty
Damage resulting from the installation or use of any accessory or attachment not approved by Cub Cadet for use with the product(s) covered by this manual will void your warranty as to any resulting damages. The following...
