Summary of Contents for Cub Cadet 2500C

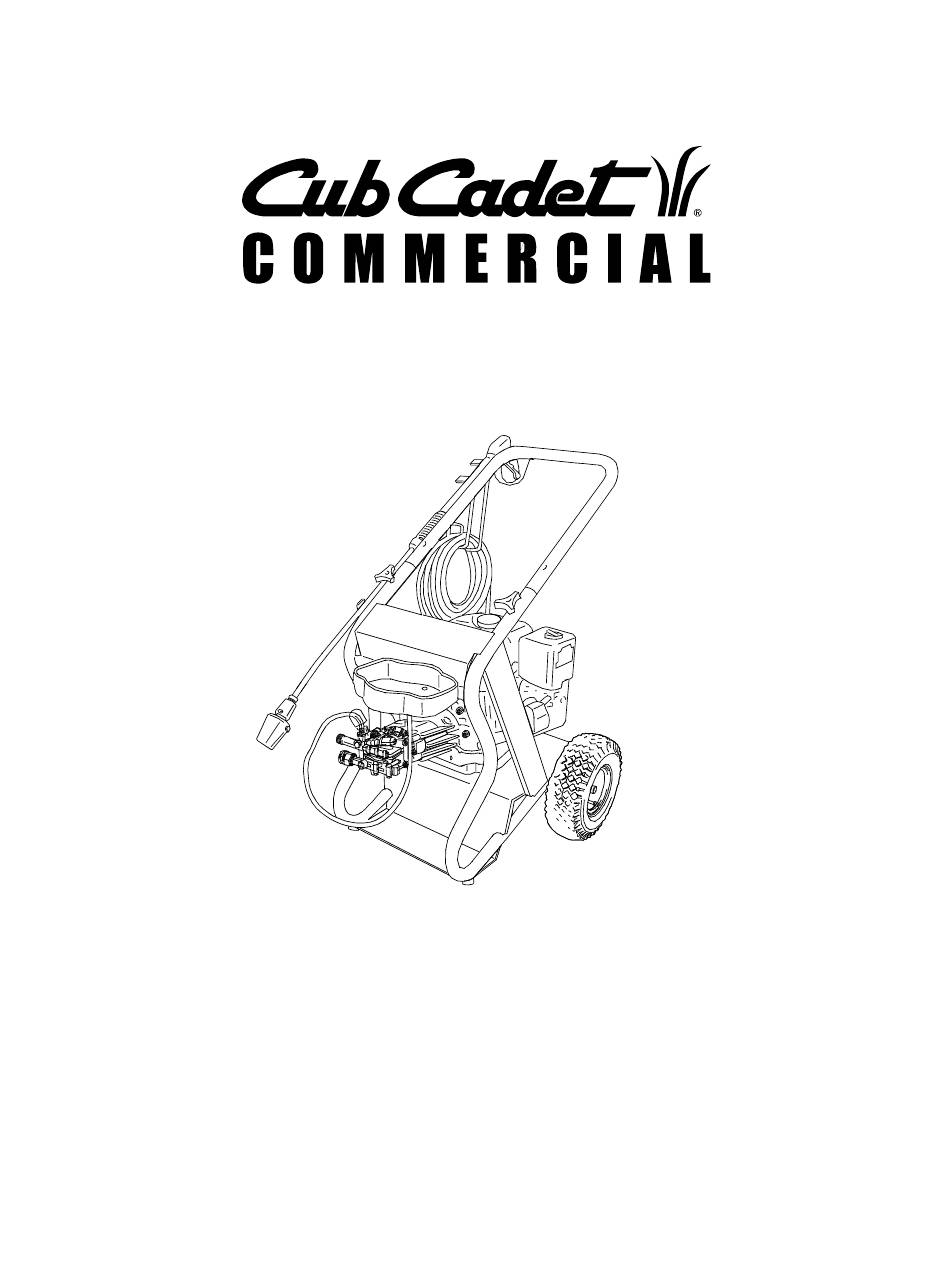

- Page 1 Operator’s Manual High Pressure Washer Model 2500C IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY CUB CADET P.O. BOX 368023 CLEVELAND, OHIO 44136-9722 [www.cubcadet.com] FORM NO. 770-10450 (9/00)
-
Page 2: Table Of Contents
CONTENTS Overview ..............3 Safe Operation Practices ..........3 Assembly Instructions ..........5 Operating Instructions ..........6 Using the Accessories ..........8 Working with Detergents ..........9 Shut Down and Clean-Up ..........10 Taking a Break .............10 Winterizing and Long-Term Storage ......11 Cleaning Tips ...............11 Optional Cleaning Accessories ........12 Troubleshooting ............13 Warranty ..............16... -
Page 3: Overview

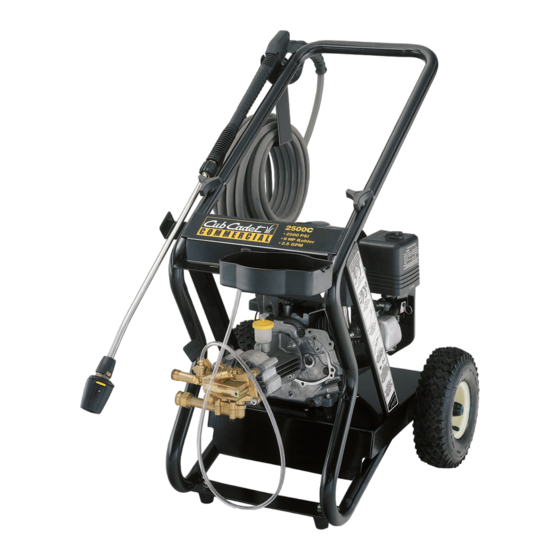

MODEL 2500C OVERVIEW Specifications 6.0 HP Kohler Command Engine Water volume 2.5 GPM Operating pressure 2500 PSI Item Description Water inlet Detergent tray w/ screw Knob Assembly (two) Oil fill cap (not seen) High pressure hose Detergent suction tube w/filter Handle Hose &... - Page 4 The please call your Cub Cadet dealer. thermal protector will automatically • The machine has hot surfaces which can cause burns. Operate the unit in a safe activate predetermined environment and away from children.
-
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS Side Holes Step2 Align holes, insert bolt from bottom tighten with knob from the top (both sides). Step1 Standing Step3 Position the hose rear of the unit (engine & gun holder to align with end), position the handle so the holes in the right side of that the side holes are to the handle and fasten with... -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Important! Do not run the engine with a high or low oil level as this can cause engine damage. If you have further questions regarding the engine, please refer to the engine’s operating manual included with the unit. level Step3 Step2... - Page 7 OPERATING INSTRUCTIONS - continued Throttle Choke Lever Control Fuel Valve Step7 Step8 Step9 Turn the engine Move the choke Place the throttle fuel shut-off valve to the lever “CLOSED” control midway between “ON” position. position (warm engine, the “SLOW” and “FAST” leave the choke lever in the positions.
-
Page 8: Using The Accessories
USING THE ACCESSORIES The touch-less nozzle is positioned in either the high pressure cleaning, or low pressure chemical, setting by turning the nozzle tip. High Pressure Cleaning Turn the nozzle tip to align the high pressure icons with the nozzle collar notch. The spray pattern is determined by the position of the nozzle’s internal valve. -
Page 9: Working With Detergents
For corrosive chemicals Cub Cadet Detergents, check your local • Liquids containing solvents (i.e., paint Cub Cadet dealer. If you need help locat- thinners, gasoline, oils) ing a dealer in your area, contact the • Tri-sodium phosphate products Customer Dealer Referral Line by calling: •... -
Page 10: Shut Down And Clean-Up
SHUTTING DOWN & CLEAN-UP Step2 Move trottle control lever to Step1 Remove det- Step3 the “SLOW” position Turn Step4 ergent suction tube Turn off the and allow engine to engine fuel shut-off from container and idle 30-60 seconds. water source. valve to the “OFF”... -
Page 11: Winterizing And Long-Term Storage
(with or without detergent) Brick and Stone Pre-rinse deck and surrounding area with (with or without detergent) fresh water. If using Cub Cadet Deck Wash, place detergent suction tube directly Pre-rinse cleaning surface with fresh water. into cleaning solution and apply to surface If using Cub Cadet All Purpose Cleaner, at low pressure. -
Page 12: Optional Cleaning Accessories
(with or without detergent) Power Equipment & Pre-rinse furniture and surrounding area Gardening Tools with fresh water. If using Cub Cadet All (with or without detergent) Purpose Cleaner, place detergent suction tube directly into cleaning solution and Pre-rinse cleaning surface with fresh apply to surface at low pressure. -
Page 13: Troubleshooting
TROUBLESHOOTING Symptom Cause Solution Engine will not start No gasoline. Fill gas tank. Low oil level. Add oil. Choke is not in correct Slide choke lever to “CHOKE” position. position. For additional engine Engine throttle is not in Position the throttle to “FAST”. problems refer to the correct position. - Page 14 Touch-less nozzle or Nozzle or spray wand not Tighten connections. Spray wand leaks. properly attached. Broken o-ring or plastic Contact your local Cub Cadet insert. dealer. Pump is noisy. Pump is sucking air. Check that hoses and fittings are air tight.
-
Page 16: Warranty
Damage resulting from the installation or use of any accessory or attachment not approved by Cub Cadet for use with the product(s) covered by this manual will void your warranty as to any resulting damages.
