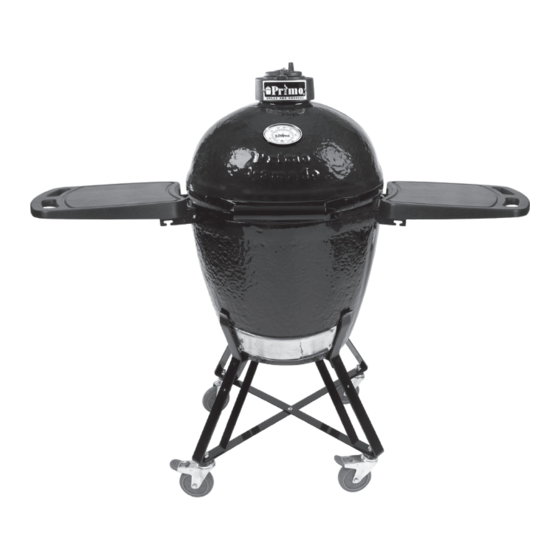

Primo Kamado Grill Assembly Instructions
Tools Needed: Box Cutter, 11mm or Adjustable Wrench & Large Phillips Head Screwdriver.
IMPORTANT: DO NOT LIFT GRILL BY THE HINGE WHEN INSERTING INTO CRADLE
1
When the Primo
Kamado Grill
arrives, select a
level area with plenty of
working space such as a
driveway or parking lot.
3
Remove the two
side shelves and
four brackets and
set them aside.
5
Open the grill and
remove the ash
tool, grate lifter,
owners manual and
the cradle hardware
package.
7
Insert Phillips Head
Screw through the
two bottom bars.
Use a locking washer,
then nut.
FINGER TIGHTEN ONLY
AT THIS TIME.
9
Align the metal
cross-member
bar with the holes
and use the remaining
threaded studs and
nuts. TIGHTEN ALL
FASTENERS FROM
PRIOR STEPS.
Two Adults are Needed to Assemble the Grill.
2
Open the top of
the box, remove
the two main
cradle parts and set
them aside. Note: one
has a notched top bar.
4
Use a box cutter
and cut vertically
down one of the
corners. Firmly pull away
the four cardboard sides
and discard.
6
Insert the cradle
part with the
notched top bar
horizontally then turn
upright to form an "X"
shape and align holes.
8
Insert a threaded
stud into the two
top bars. Use a
locking washer and one
of the nuts
FINGER TIGHTEN ONLY
AT THIS TIME.
10
Align the
cradle with the
grill. Make sure
the locking casters are
locked and the furthest
from the grill.
