A standard room includes some or all of this equipment:
•
Microphone(s)
•
DSP or other processor
•
Loudspeakers (networked or analog)
•
Computer with videoconferencing software
•
Network switch
•
Camera
•
Other accessories such as table mute buttons, tablets to control meetings, and other peripherals
®
The Microflex
Ecosystem
offers a complete portfolio of networked audio solutions that can be precisely tailored to your needs.
P300 Designer Setup Example
This example uses Shure Designer 6.0 software to set up a P300, 2 MXA901 microphones, and 4 MXN5-C loudspeakers. You
might use Designer if:
•
You're managing many Shure devices in different spaces
•
You're routing audio between many Shure devices
You can use other combinations of devices with the P300, but the setup process in Designer is similar.
After completing this basic setup process, you should be able to:
•
Control the P300 in Designer
•
Route audio and adjust DSP settings
•
Understand the basic workflow for working with devices in Designer
This example uses:
•
Cat5e (or better) Ethernet cable

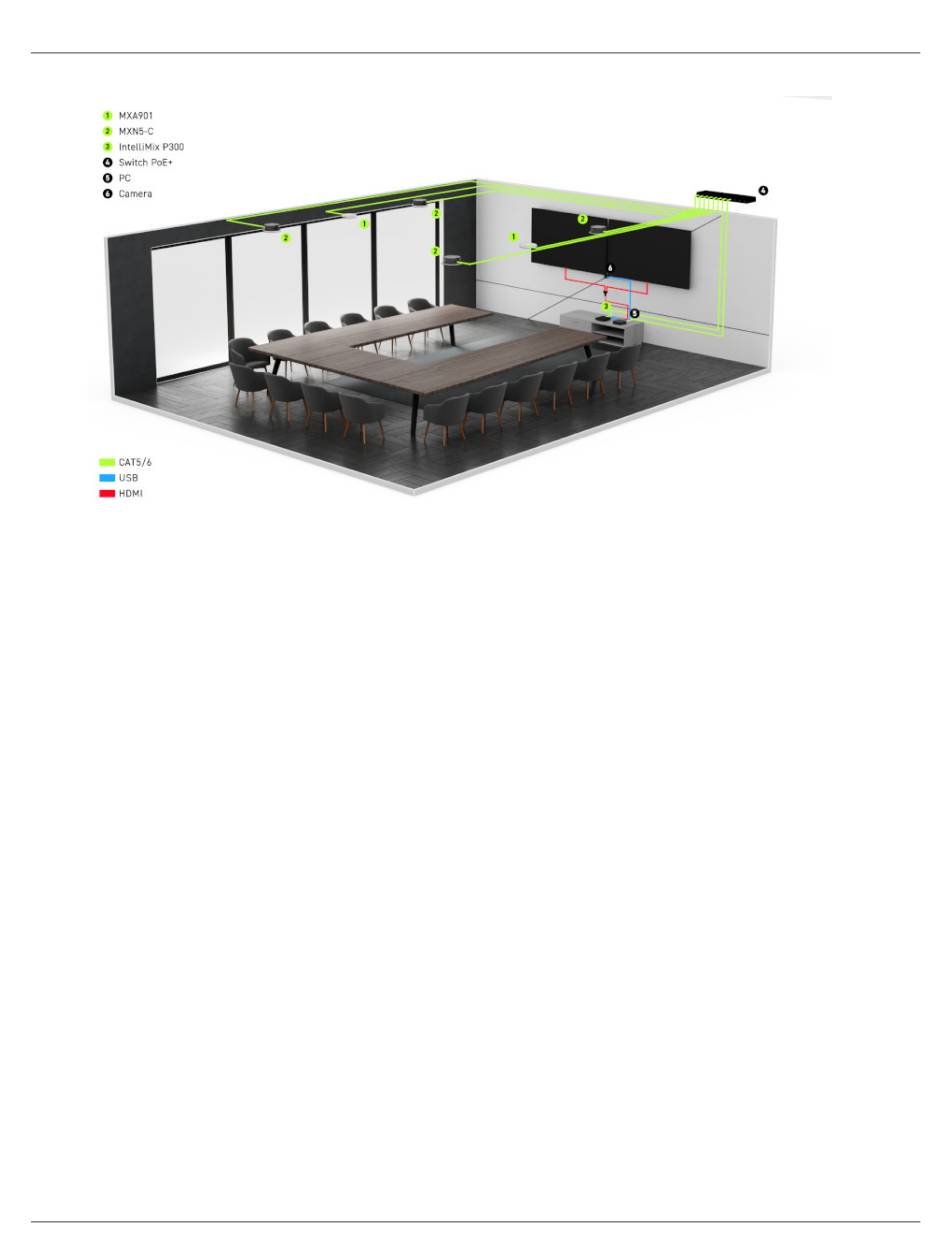

Large room equipment example
Shure Incorporated
5/49
