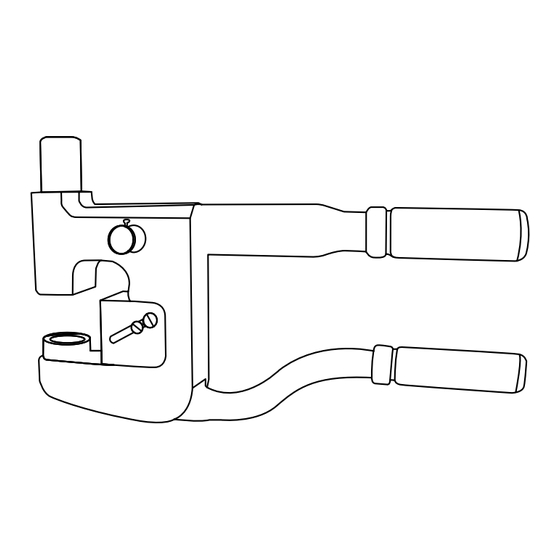

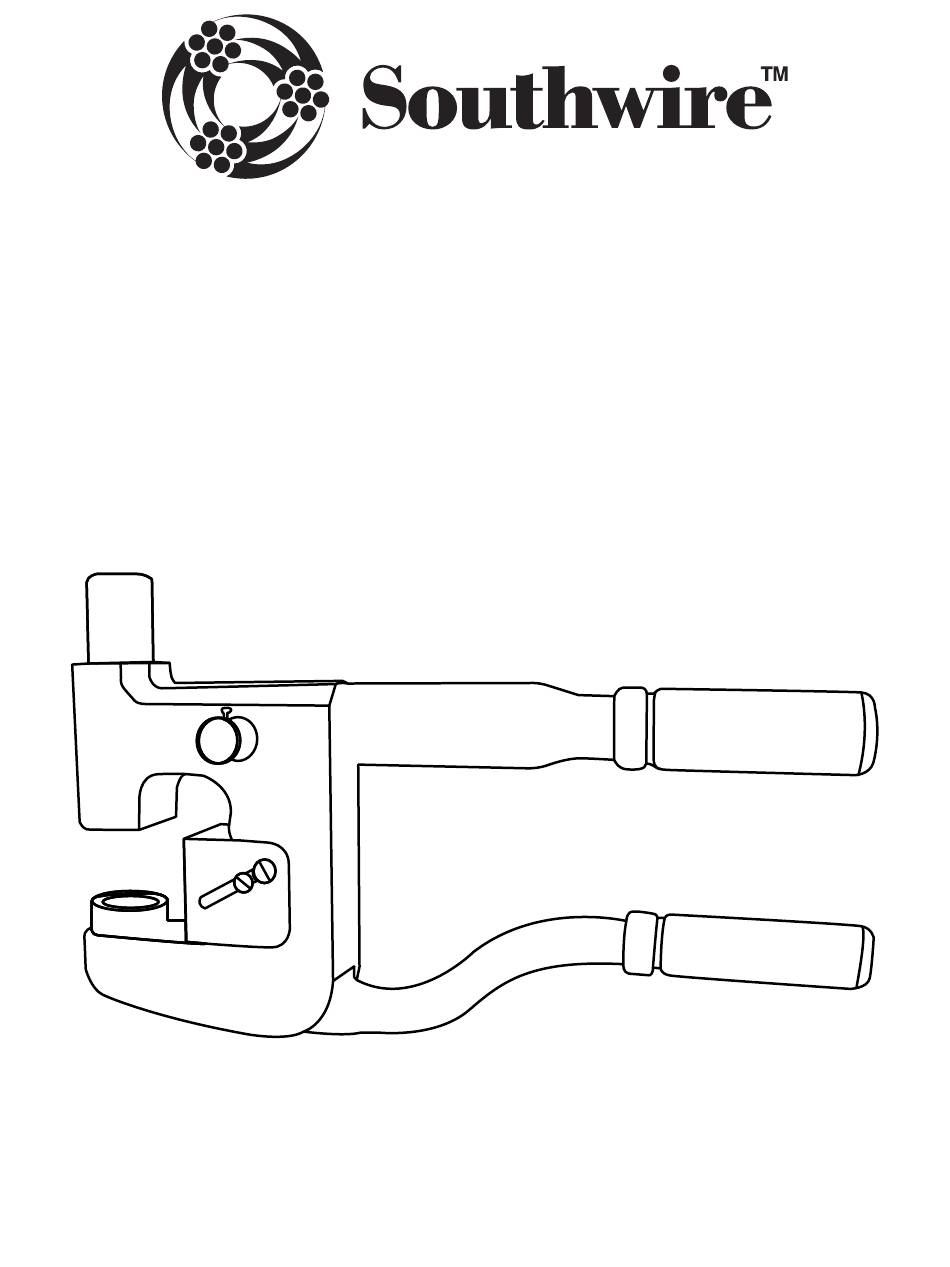

- Page 1 OPERATING AND MAINTENANCE INSTRUCTIONS MAX PUNCH HYDRAULIC STUD PUNCH SOUTHWIRE.COM | 1...
- Page 2 TABLE OF CONTENTS Important Safety Information ...................... 3 Description of Operation ......................4 Indentification ..........................4 Operating lnstructions ........................4 Maintenance ..........................5 Specifications ..........................6 Warranty ............................6 2 | SOUTHWIRE.COM...
- Page 3 SAFETY FIRST Safety is essential in the use and maintenance of Southwire Tools & Equipment. This instruction manual and any markings on the tool provide information for avoiding hazards and unsafe practices related to the use of this tool. Observe all of the safety information provided.
- Page 4 Press Quick Guide Adjuster Lock, sliding adjuster away from the Cutting Ram. 2. Make sure Pressure Release Knob is in the closed position by turning knob fully clockwise. 3. Place Quick Guide Adjuster against side of steel stud with Cutting Ram facing the deep side of the stud. 4 | SOUTHWIRE.COM...
- Page 5 5. Screw back on stationary handle cylinder. Periodically lubricate all moving parts with light weight oil as needed. Periodically Check Cutter for blade sharpness or damage, if damage or dullness is detected do not use device and contact repair facility. SOUTHWIRE.COM | 5...
- Page 6 With respect to new Southwire Contractor Equipment ("SCE"; fonnerly known as Maxis) products, Southwire Company, LLC warrants as follows: Each SCE product will be free from defects in materials and workmanship for a period of one year from the date on which the product is delivered to the end user.
- Page 7 Distributor credit will not be issued. 4. Distributors must obtain a written Product Return Authorization before returning any allegedly defective product to Southwire. All returned products must be accompanied by a copy of the Product Return Authorization. 5. Products and accompanying Product Return Authorizations should be shipped to Southwire at the below address.
- Page 8 SOUTHWIRE.COM Product distributed by Southwire Company, LLC. One Southwire Drive Carrollton, GA 30119 03/24 ©2024 Southwire Company, LLC MPHSP manual/manuel All rights reserved.
