Assembly - Cub Cadet SW-15CC Owner's Manual

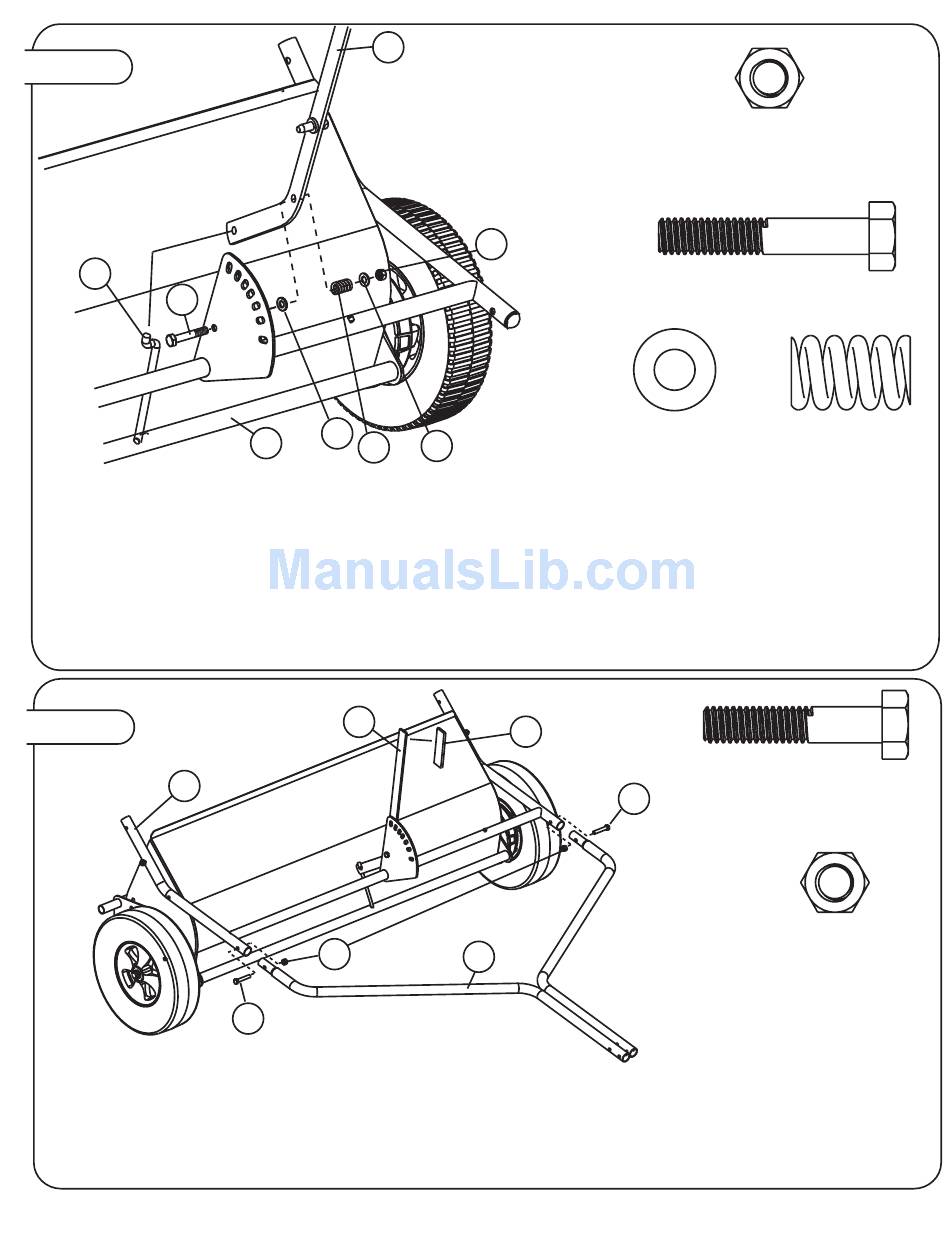

Step 2a
14
38
a) Assemble Lift Handle(3) to Lift Link(14).
b) Install hex bolts (38) as shown. Add
washer (32) and install handle in middle
hole. NOTE: It may be necessary to put
downward pressure on the Lower Pivot
assembly (10) to line up the holes.
Step 3
35
a) Install the Flat Grip (43) to the Lift
Handle (3).
b) Install the Tow Tubes (2) to the
Upper Frame Assembly (35).
3
32
10
36
3
9
37
9
32
c) Complete the assembly by adding
the spring, washer and locknut.
43
2
9
5/16" Nylon Lock Nut
Qty. 1
38
5/16" x 1-3/4", Hex Bolt
Qty. 1
32
5/16" Flat Washer
Qty. 2
5/16" x 1-1/2", Hex Bolt
37
5/16" Nylon Lock Nut
36
Spring
Qty. 1
37
Qty. 2
9
Qty. 2
7.
L-1788-CC-B
