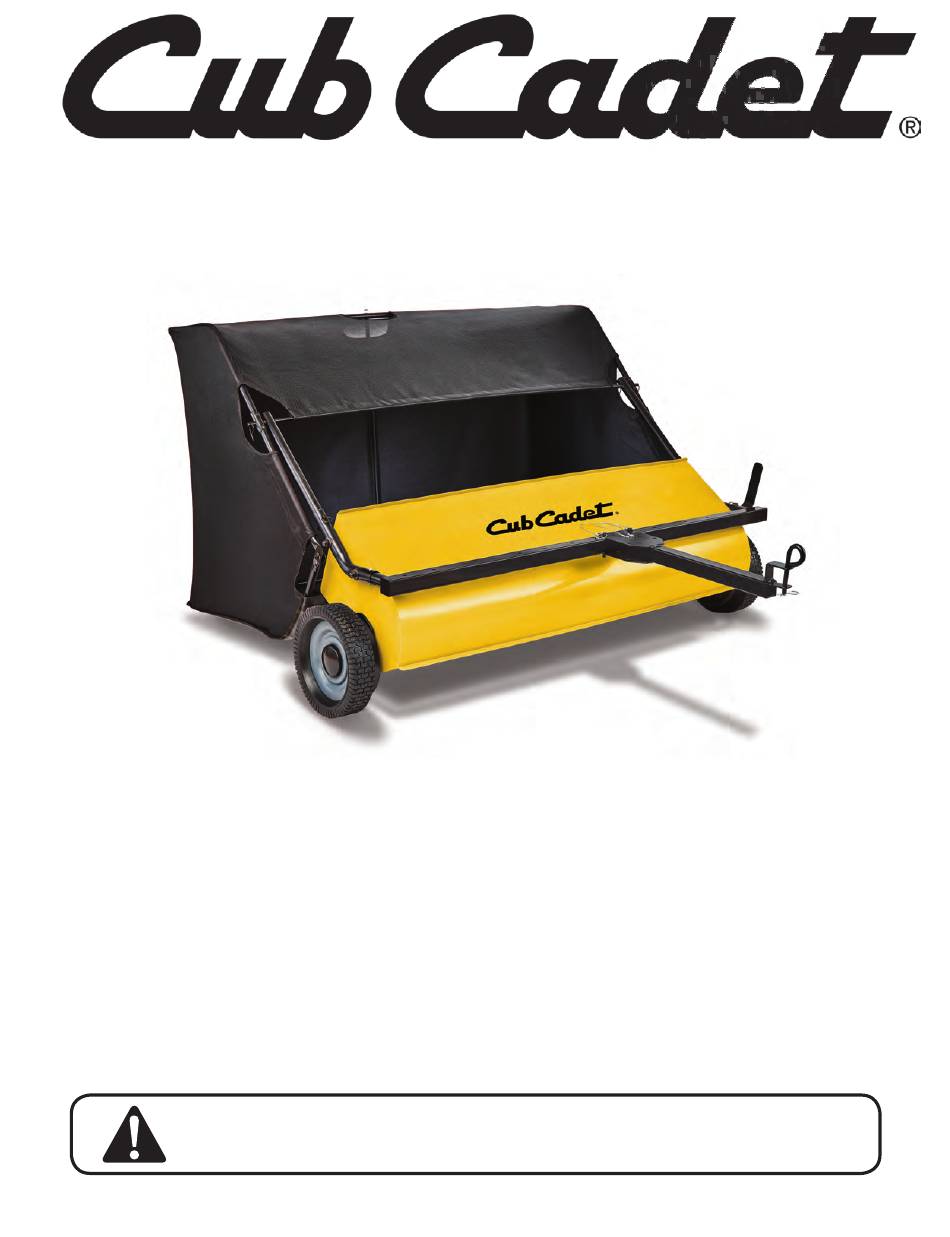

- Page 1 CC-4624V2 24 cu ft LA WN SWEEPER U.S. Patent No. 7,610,646 READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT 6004282 - REV B 09/19...
-
Page 2: Safety Rules
Safety Rules This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Read and understand all safety rules and operating instructions before using this tractor attachment. -
Page 3: Warranty
Warranty IF YOU ARE MISSING PARTS DO NOT RETURN TO STORE Email cs@ohiosteel.com or call 1-800-652-2321, ext. 212 Before you call,please email our customer service team at cs@ohiosteel.com with the following: A description of the issue you are having Photos of the issue that include an overall view and detailed view from multiple angles If applicable, a short video showing the issue Replacement Parts:... -
Page 4: Tools Required For Assembly
Carton Contents (x1) 6 (x2) 7 (x4) 10 (x4) 11 (x1) 8 (x4) 9 (x4) 12 & 49 (x7) 13 (x1) 14 (x1) 15 (x1) 38 (x1) 40 (x2) 39 (x2) 37 (x2) 52 (x1) 41 (x2) 42 (x1) 43 (x1) 44 (x1) 45 (x2) 50 (x1) - Page 5 Assembly Instructions Attach Hitch Mount Tubes (6) to Sweeper Assembly and tighten hardware. DO NOT OVERTIGHTEN. Attach Hitch Cross Tube Assembly (13) by depressing snap buttons and insterting into Hitch Mount Tubes (34). Install Hitch Assembly (14) using tethered quick release pins in desired position on Hitch Cross Tube Assembly (13).
- Page 6 Assembly Instructions First remove factory hand tightened nuts from studs. Use nuts to attach Height Adjustment Handle (15) Using a 9/16" Open End Box Wrench. Shown Installed: Insert Bottom Frame Tubes (39) into Center Frame Tube (41) and snap into position.
- Page 7 Assembly Instructions Unroll and flatten hopper bag (38) from shipping state. Then, slide Hopper Stop Bar (42) into pocket of Hopper Bag as shown. First, place bottom frame assembly into bottom of Hopper Bag (38). Second, Install Clevis Pins (46) through Hopper Bag (38), Hopper Stop Bar (42), and Bottom Frame Tubes (39) then secure with Hairpins(49).
- Page 8 Assembly Instructions First, Place top frame assembly into Hopper Bag (38). Second, Install Clevis Pins (45) through Top Frame Tubes (40) and Bottom Frame Tubes (39) and secure with Hairpins (49). Snap Button Down Slide Hopper Pivot Rod (43) through Top Frame Tube (40) and Connecting Tube (37), then through pocket of Hopper Bag (38), and then through both Connecting Tube (37) and Top Frame Tube (40) on other side.
- Page 9 Assembly Instructions Unscrew Thumb Screw from Tension Tube Assembly (44). Next, Hold Hopper Bag (38) open and carefully insert Tension Tube Assembly (44) through opening in Hopper Bag and into hole in bottom Center Frame Tube (41). Pull top Center Frame Tube over tension tube and align holes.
- Page 10 Assembly Instructions Insert Connecting Tubes (37) into Hitch Mount Tubes (6) and secure with Quick-Release Pins (48). Install Hitch Pin (11) and secure with Hairpin(12). Install handle (52) and tie Dump Rope (50) securely around exposed section of Center Frame Tube(41). Do NOT fasten rope to any part of your body or clothing.
- Page 11 Operating Instructions Before Using Lawn Sweeper: Read all Safety Rules found on page 1. How to Sweep Lawn: Remove large debris from lawn. Do not sweep if conditions are too wet or muddy. Attach Lawn Sweeper to tractor using supplied hitch pin. The reversable hitch allows the Lawn Sweeper to accomodate varying tractor hitch heights by fliping over;...
- Page 12 Operating Instructions How to Adjust Brush Height: Place one hand on adjustment lever and use other hand to pull outward on plunger. Move handle downwards to lower the brush height or upwards to raise the brush height. Align the plunger with the nearest hole and release to select height setting. Offset Sweeping: Remove both pins from drawbar.
- Page 13 Operating Instructions Storing Lawn Sweeper: Empty hopper bag and thoroughly clean Lawn Sweeper before storing. Store Lawn Sweeper away from excessive heat to prevent damage. Brushes must not contact ground during storage to prevent damage. Remove quick-release pins to separate hopper bag from Lawn Sweeper. Carefully remove tension tube and collapse hopper bag for compact storage.
-
Page 14: Repair Parts
Repair Parts ITEM PART N0 DESCRIPTION QTY. ITEM PART N0 DESCRIPTION QTY. SWEEPER HOUSING 6000540 WHEEL BUSHING 6004352-Y1 WHEEL WELDMENT 307011 WHEEL(BUSHING INCLUDED) 6000733-ZC 1/4" -20 X 1" CARRIAGE BOLT 6000539 DUST COVER 3000716-ZC WASHER, 1/4" SAE 6004023 PLUNGER KNOB 307034-B2 HITCH MOUNT TUBE 6004022 PLUNGER SPRING... - Page 15 Repair Parts ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 307032-B2 CONNECTING TUBE CLEVIS PIN, 3/8" X 1/2" 6004247 HOPPER BAG CLEVIS PIN, 1/4" X 1-1/4" BOTTOM FRAME TUBE 3/8" USS FLAT WASHER 6004344 TOP FRAME TUBE QUICK-RELEASE PIN 6004287-B2 CENTER FRAME TUBE HAIRPIN TENSION TUBE ASSEMBLY...
- Page 16 Designed And Tested In Columbus, Ohio Manufactured In The U.S.A. From Domestic And Imported Components MODEL # CC-4624V2 (800) 652-2321 (800) 652-2321...
