Interchangeable lens for digital camera (26 pages)

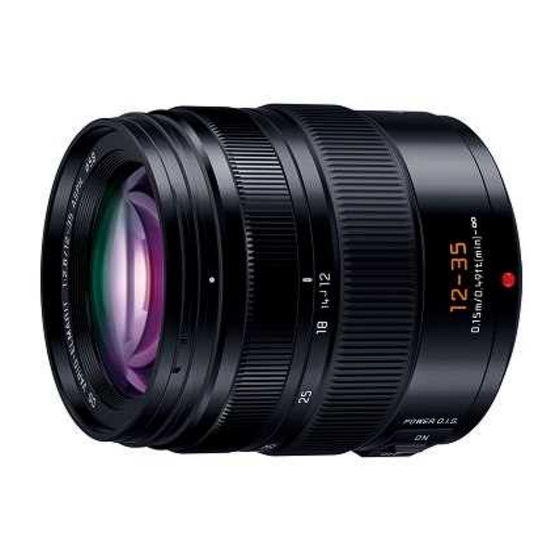

Summary of Contents for Panasonic Lumix H-ES12035
Page 1
(from the tip of the lens to the base side of the lens mount) Mass Approx. 306 g (0.67 lb) Operating temperature -10℃ to 40℃ (14℉ to 140℉) Dust-proof and splash-proof Available ⓒ Panasonic Entertainment & Communication Co., Ltd. 2023 Unauthorized copying and distribution is a violation of law.
1.2.1. About 5th Lens Unit The inside of the 5th Lens Unit applied "Panasonic's Nano Surface Coating technology". The damage causes by peeling off a Nano Surface Coating. Never touch the inside of the 5th Lens Unit while Disassembly and Assembly.
3 Replacement Parts List Definition of Parts Supplier : All parts are supplied from PEAC-VSBU. Ref.No. Part No. Part Name & Description Remarks P12F320 ZOOM RUBBER PG27HJ0 DECORATION RING PG27HC0 HOOD ADAPTER P127Z10 1ST LENS UNIT P12F140 2ND LENS SHADING SHEET P12F020 FRONT BARREL P121060...
Page 6
P128H50 L MOUNT UNIT 206-1 9630230 LENS MOUNT RUBBER PG27Z60 5TH LENS UNIT 37 - 42 0124730 P4 ROLLER 43 - 45 P127HA0 ZOOM GUIDE COLLAR ASSY 46 - 48 0150230 POLY SLIDER 3 t=0.05 46 - 48 0150250 POLY SLIDER 3 t=0.13 46 - 48 0150280...
4 Service Fixture & Tools 4.1. Fixture and Tools The following Fixture and Tools are used for checking and servicing this unit. Lens Cleaning Kit Torque Driver Screw Driver Collimator VFK1900BK RFKZ0542 VFK1390 RFKZ0422 *Only supplied 10 set/box. Blower Gloves Stick Cloth Reference Camera...
5 Maintenance 5.1. Dust / Dirt on the outer casing part(s) 1. Blow off the dust first, then sweep out the dust from narrower spaces with soft cleaning brush. 2. Wipe up the outer casing part with the dry fuzz-free cloth. 5.2.
6 Disassembly and Assembly Instructions 6.1. Disassembly Procedure 6.1.1. Removal of the Zoom Rubber 1. Remove the Zoom Rubber. 2. Remove the 2 screws (B). 3. Separate the Hood Adapter and the 1st Lens Unit. Zoom Rubber Ring Screw 6.1.2. Removal of the Decoration Ring 1.
Page 10
6.1.5. Removal of the L Mount Unit and 6.1.6. Removal of the Mount Washer the Lens Mount Rubber 1. Remove the Mount Washer. 1. Remove the screw (D) and the screw (E). NOTE: 2. Remove the 4 screws (F). 1. There are several types of the Mount Washer 3.
Page 11
6.1.8. Removal of the Main PCB Assy 1. Disconnect the connector (B) ~ (E). 2. Remove the 4 screws (I) and the 2 screws (J). 2. Remove the Main PCB with the Mount Contact Unit. Screw Screw Screw (I) : 5.0mm (Silver) 6.1.9.
Page 12
6.1.12. Removal of the Zoom Guide Collar Assy 5. Remove the Hold Barrel Unit. 1. Remove the 3 Zoom Guide Collar Assy. NOTE: Put the soft cloth to protect the 2nd Lens Unit sureface from damage. 6.1.11. Removal of the Front Barrel 1.
Page 13
6.1.14. Removal of the OIS Unit and the Housing & D Base Unit 2. Peel off the 2nd Lens Shading Sheet. 1. Remove the 3 screws (N) with the P4 Roller. 3. Remove the 3 screws (M) and the 2nd Lens Unit. Screw (N) :...
Page 14
6.1.16. Separate the OIS Unit from the 6.1.17. Separate the Housing & D Base Unit Housing & D Base Unit and the FPC Guide 1 1. Remove the 3 screws (O). 1. Remove the screw (Q). 2. Remove the FPC Guide 1 from the Housing & D Base Unit. Screw (O) :...
Page 15
2. Remove the AF Motor Assy from the OIS Aperture Flex. 3. Remove the 3 screws (T). 4. Remove the Main Shaft Holder and theSub Shaft Holder. Screw (T) : 5.0mm (Silver) 5. Remove the 4th Lens & AF Rack Unit.
6.2. Assembly Procedure Important: When tightening the screw, use a torque driver (RFKZ0542) with specified torque described in each step. 6.2.1. Assembly of the OIS Unit 1. Install the 4th Lens & AF Rack Unit. 5. Stick the AF Motor Flex on the OIS Aperture Flex. 2.
Page 17
6.2.2. Assembly of the Housing & D Base Unit 7. Apply Grease to the motor screw part of the AF Motor. 1. Install the FPC Guide 1 to the Housing & D Base Unit. 2. Tighten the screw (Q) by using the torque driver with specified torque.
Page 18
6.2.4. Installation of the Rotative Barrel to the Main Zoom Barrel 2. Tighten the screw (P) by using the torque driver with specified torque. 1. Apply Grease to the Main Zoom Barrel by following figure. Screw (P) : 1.0mm (Silver) Torque:(P) 7.8 ±...
Page 19
6.2.6. Installation of the 2nd Lens Unit 2. Align the mechanical phase by following figure. 1. Align the mechanical phase by following figure. 3. Tighten the 3 screws (N) by using the torque driver with specified torque, with the P4 Roller. 2.
Page 20
6.2.7. Installation of the Zoom Guide Collar Assy 4. Install the 2nd Lens Shading Sheet. 1. Install the 3 Zoom Guide Collar Assy. NOTE: Put the soft cloth to protect the 2nd Lens Unit sureface from damage. 5. Align the mechanical phase by following figure. 2.
Page 21
6.2.8. Installation of the Hold Barrel Unit 1. Insert the lower half of the Hold Barrel Unit by refering 4. Rotate the Zoom Ring to (A) direction, Zoom becomes the phase guide (A) and (B). "12mm". 5. Tighten the 4 screws (I) and the screws (J) in numerrical order by using the torque driver with specified torque.
Page 22
6.2.11. Installation of the OIS SW Unit and the Rear Frame Unit 6. Install the Zoom Lever. 7. Tighten the screw (H) by using the torque driver 1. Hook the upperside hook. with specified torque. Then, push the underside hook into. Upperside hook 2.
Page 23
6.2.13. Installation of the Lens Mount Rubber 6.2.14. Installation of the 5th Lens Unit and the L Mount Unit 1. Put the Poly Slider as it was. 1. Install the Lens Mount Rubber. Lens Mount Rubber 2. Install the L Mount Unit. 3.
Page 24
6.2.15. Installation of the Hood Adapter and the 1st Lens Unit 3. Install the 1st Lens Unit with the Hood Adapter. 1. Assemble the Hood Adapter and 1st Lens Unit. then, align the mechanical phase by following figure. then, align the mechanical phase by following figure. 2.
Page 25
6.2.16. Installation of the Decoration Ring 1. Insert the 4 Pins of the Decoration Ring to the hole of the Hood Adapter. ・Use new one, do not use the one which is removed. ・Double-stick tape sticks to the Decoration Ring of the repair part.
7 Adjustment 7.1. Matrix Chart for Replaced Part and Necessary Adjustment The relation between Replaced part and Necessary Adjustment is shown in the following table. When concerned part is replaced, be sure to achieve the necessary adjustment(s). Necessary Adjustment Replacement Part Simple Resolution Electrical Inspection...
7.3. Flow Chart for Adjustment Check for Defective Parts and Internal Dust Disassembly Replacement or Cleaning Assembly Electrical Adjustment - Check the brightness and settings of camera Simple Resolution body and test chart Inspection - Begin again after disassembly/assembly Simple Resolution Visual Checking Inspection Failure, it needs to be...
7.4. Procedure for Adjustment 7.4.1. Electrical Adjustment Make Electrical Adjustment using PC with Adjustment Software. As for Adjustment conditions/procedure, consult the "Adjustment Manual" which is available in Adjustment Software. [Washer thickness adjustment] When doing Back Bocus adjustment, if "NG" is displayed, try "Washer thickness adjustment". 1.
7.4.2. Equipment and Chart Setting Install LED lights left and right symmetrically as uneven illumination does not occur. * The standard illuminance on the surface of all the 5 points of the chart described as shown in the figure with red marking is 1500±150 lux.
7.4.3. Checking Chart Image <Preparation> - Checking Chart (Part No. SUKZ000059) that consisted of 5 charts No.1 - No.5. and 4 black charts. - White plastic matte board /Size: 1,440mm(W) x 960mm(H) or above Guide Line - Length: 500mm or more - Thickness: 5mm or more No.2 No.5...
7.4.4. Master Body Setting and Position 7.4.4.1 Master Body Setting - Cancel the Initial Setting - Set the function parameter to below setting Setting Item Setting Value Mode dial A (Aperture-priority AE mode) Aperture F 2.8 (maximum aperture) Focus mode S (AFS) 100 (~200) Image stabilizer...
Page 32
For more accurate checking, hang the hand glass installed from the upper part of the center of the Checking Chart to the string down, and adjust it to come to the chart center. And If the lens of oneself reflecting in the mirror is displayed in the center of the LCD monitor, placing is correctly.
7.4.5. Lens Unit Setting - Set the function parameter to below setting Setting Item Setting value AF/MF switch 7.4.6. PC Software 7.4.6.1 Required PC Specification - OS : Windows 10 - Processor :Pentium 4/M or equivalent or more - Memory :512 MB RAM - Display :1,024 ×...
7.4.7. Procedure of Visual Checking Mount repaired Lens on master body. (valid pixels : 20M pixels image sensor) LUMIX Chart Mount master body on tripod. Set the function parameter to below setting. - Mode dial : A (Aperture-Priority AE Mode) - Photo style : Standard - Aspect ratio : 4:3 - Aperture : F2.8 (Maximum aperture)
Page 35
LUMIX Chart L-Size 600x800mm (SUKZ000034) LUMIX Chart M-Size 300x400mm (SUKZ000035) (Notice) SUKZ000034 and SUKZ000035 have been discontinued, so when you purchase them, please use the part numbers below: SUKZ000068, SUKZ000069...
