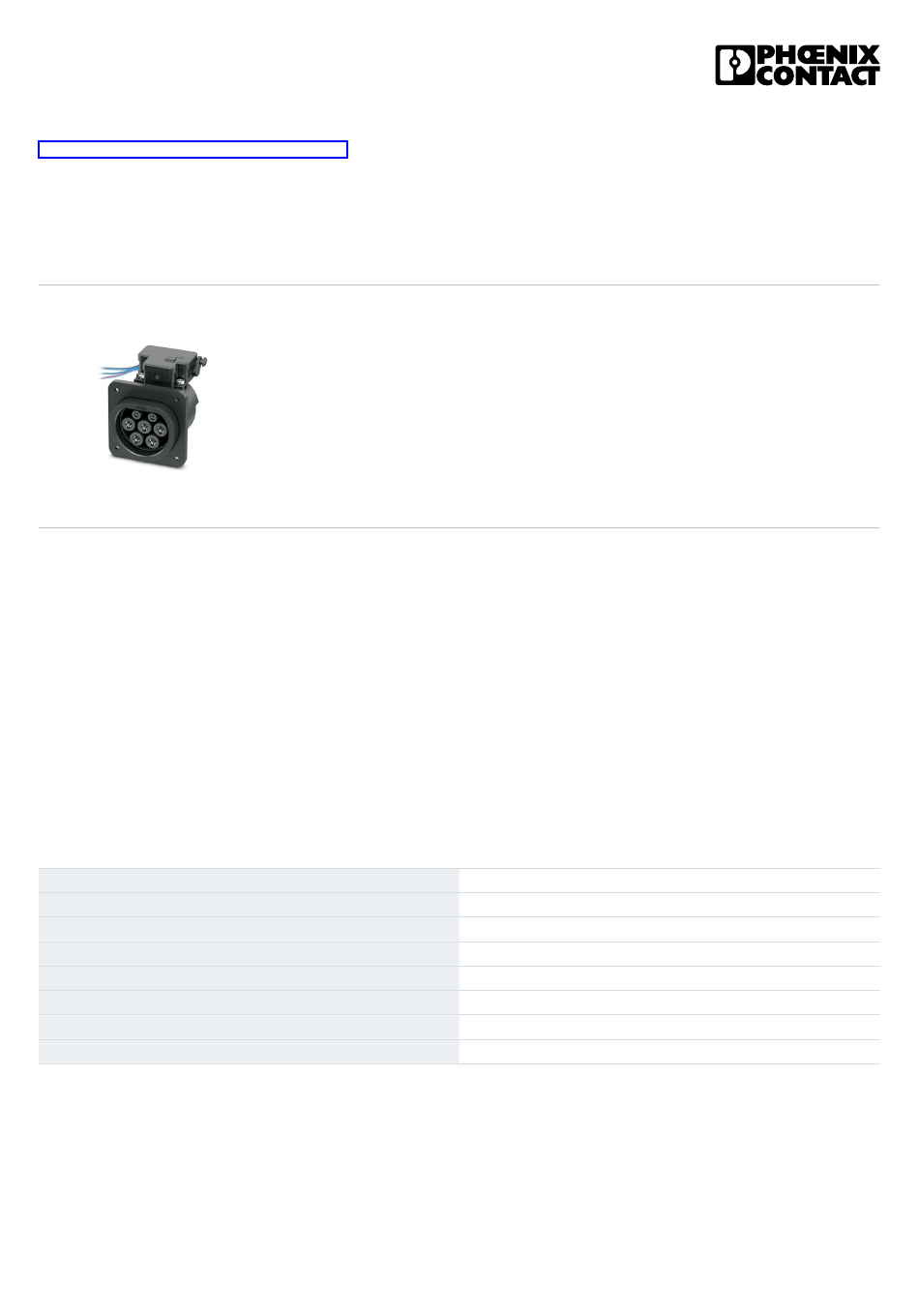

EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure
charging socket
1627779
https://www.phoenixcontact.com/us/products/1627779
Please be informed that the data shown in this PDF document is generated from our online catalog. Please find the complete data in the user
documentation. Our general terms of use for downloads are valid.
Product description
Infrastructure charging socket for charging electric vehicles (EV) with alternating current (AC), compatible with type 2 Infrastructure Plugs, for
installation at charging stations for E-Mobility (EVSE)
Your advantages
•
Complete product range
•
Uniform, space-saving installation space
•
Available with your logo on request – for consistent branding of your charging station
•
Integrated interlock during charging
•
Manual emergency release of the locking actuator
•
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Commercial data
Item number
Packing unit
Minimum order quantity
Product key
GTIN
Weight per piece (including packing)
Weight per piece (excluding packing)
Country of origin
CHARX connect, Infrastructure charging socket, for charging electric vehicles (EV) with
alternating current (AC), Type 2, IEC 62196-2, 32 A / 480 V (AC), length: 0.7 m, locking actuator:
12 V, 4-pos., Rear panel mounting, PHOENIX CONTACT logo
1627779
1 pc
10 pc
XWBADC
4055626355252
593 g
567 g
DE
Feb 25, 2024, 5:07 PM
Page 1 (23)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Phoenix Contact EV-T2M3SE12-3AC32A-0
Summary of Contents for Phoenix Contact EV-T2M3SE12-3AC32A-0
- Page 1 EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 Please be informed that the data shown in this PDF document is generated from our online catalog. Please find the complete data in the user documentation. Our general terms of use for downloads are valid.
-
Page 2: Technical Data
EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 Technical data Product properties Product type Infrastructure charging socket Product family CHARX connect Application for charging electric vehicles (EV) with alternating current (AC) compatible with infrastructure charging plugs Affixed logo PHOENIX CONTACT logo Charging standard Type 2... -
Page 3: Mechanical Properties
EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 Service life insertion cycles > 10000 load cycles Lock recognition available Mechanical emergency release available Ambient temperature (operation) -30 °C ... 50 °C Cable length 0.5 m Cable structure 4 x 0.5 mm² Cable/line Cable length 0.7 m (AC cables) -
Page 4: Schematic Diagram
EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 Drawings Schematic diagram Panel thickness for rear mounting (max. 50 mm, with Phoenix Contact protective cover, max. 22 mm) Feb 25, 2024, 5:07 PM Page 4 (23) -
Page 5: Block Diagram
EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 Schematic diagram Panel thickness for front mounting (in mm) Block diagram BU/RD BU/GN BU/YE BU/BN Block diagram of the locking actuator Feb 25, 2024, 5:07 PM Page 5 (23) - Page 6 EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 Schematic diagram = ∞ Ω = 0 Ω = ∞ Ω = ∞ Ω = 0 Ω Detection of the Infrastructure Plug Feb 25, 2024, 5:07 PM Page 6 (23)
- Page 7 EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 Schematic diagram [II] [III] [IV] Operating instructions Feb 25, 2024, 5:07 PM Page 7 (23)
- Page 8 EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 Dimensional drawing Ø68 Hole image Feb 25, 2024, 5:07 PM Page 8 (23)
- Page 9 EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 Schematic diagram Rear mounting with rear protective cover screw connection The screw connection for a protective cover from the accessories range (EV-T2SC) only supports rear mounting. The panel thickness must not exceed 5 mm. The sealing frame that is slid on from the rear must contact the housing panel flush with the flat side and must completely surround the infrastructure socket outlet.
- Page 10 EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 Diagram 200 400 600 800 1000 1200 1400 1600 t [ms] 200 400 600 800 1000 1200 1400 1600 t [ms] Locking states of the locking actuator Feb 25, 2024, 5:07 PM Page 10 (23)
- Page 11 EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 Schematic diagram Front mounting with rear protective cover screw connection Front mounting is only possible when the locking actuator is removed. We recommend using an infrastructure socket outlet without pre-assembled locking actuator (EV-T2M3SE-...E0..., e.g., 1621729).
-
Page 12: Connection Diagram
EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 Connection diagram Pin assignment of infrastructure charging socket Schematic diagram Installation positions Feb 25, 2024, 5:07 PM Page 12 (23) - Page 13 EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 Dimensional drawing 76,2 57,2 11,3 Ø12,8 Dimensional drawing Feb 25, 2024, 5:07 PM Page 13 (23)
- Page 14 EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 Classifications ECLASS ECLASS-11.0 27144706 UNSPSC UNSPSC 21.0 39121522 Feb 25, 2024, 5:07 PM Page 14 (23)
- Page 15 EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 Environmental product compliance China RoHS Environmentally Friendly Use Period = 10; For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads” Feb 25, 2024, 5:07 PM Page 15 (23)
- Page 16 EV-T2SC - Protective cover 1405217 https://www.phoenixcontact.com/us/products/1405217 CHARX connect basic, Protective cover, square, Accessories, with self-locking mechanism, for attaching to infrastructure charging sockets, Type 2, IEC 62196- 2, Front mounting, M5 thread, housing: black, Embossed PHOENIX CONTACT logo Feb 25, 2024, 5:07 PM Page 16 (23)
- Page 17 EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 EV-T2SF - Panel mounting frames 1405218 https://www.phoenixcontact.com/us/products/1405218 CHARX connect basic, Panel mounting frames, Accessories, for attaching to infrastructure charging sockets, Type 2, IEC 62196-2, Front mounting, M5 thread, housing: black, Without logo EV-GBSCO - Protective cover 1623415 https://www.phoenixcontact.com/us/products/1623415...
- Page 18 EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 EV-GBSC - Protective cover 1623416 https://www.phoenixcontact.com/us/products/1623416 CHARX connect basic, Protective cover, circular, Accessories, with self-locking mechanism, for attaching to infrastructure charging sockets, GB/T, Type 2, GB/T 20234.2, IEC 62196-2, Front mounting, housing: black, Adhered "PHOENIX CONTACT" sticker...
- Page 19 EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 EV-T2M3S-E-LOCK12V - Locking 1624129 https://www.phoenixcontact.com/us/products/1624129 CHARX connect modular, Locking, Accessories, for attaching to infrastructure charging sockets, Type 2, GB/T, IEC 61851-1, Single wires, length: 0.5 m, locking actuator: 12 V, 4-pos. EV-T2M3S-E-LOCK24V - Locking 1622317 https://www.phoenixcontact.com/us/products/1622317...
- Page 20 EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 EV-T2M3S-DRAINAGE-GASKET - Seal 1621668 https://www.phoenixcontact.com/us/products/1621668 CHARX connect basic, Seal, For the discharge nozzle below the infrastructure charging socket if there is no drainage tube present, Type 2, IEC 62196-2 EV-T2M3S-E-LOCK-GASKET - Seal 1621465 https://www.phoenixcontact.com/us/products/1621465 CHARX connect basic, Seal, For the mounting surface of the locking actuator above the infrastructure charging socket when there is no locking actuator present, Type 2, IEC 62196-2...
- Page 21 EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 EM-CP-PP-ETH - AC charging controller 2902802 https://www.phoenixcontact.com/us/products/2902802 EV charge control is used to charge electrical vehicles on the 3-phase AC mains power supply according to IEC 61851-1 Mode 3. All necessary control functions are integrated.
- Page 22 EV-T2M3SE12-3AC32A-0,7M6,0E10 - Infrastructure charging socket 1627779 https://www.phoenixcontact.com/us/products/1627779 EV-CC-AC1-M3-CBC-SER-PCB - AC charging controller 1622453 https://www.phoenixcontact.com/us/products/1622453 The EV-CC-AC1-M3-CBC-SER-PCB charging controller as PCB is used for charging electric vehicles at 3-phase AC networks according to IEC 61851-1, Mode 3. All charging functions, comprehensive configuration settings as well as a locking controller are already integrated.
- Page 23 The EV-CC-AC1-M3-CBC-SER-PCB-MSTB charging controller as a PCB for charging electric vehicles according to IEC 61851-1, Mode 3, Case B (Socket Outlet) or C (Vehicle Connector). Connection via PCB connector on header. Phoenix Contact 2024 © - all rights reserved https://www.phoenixcontact.com Phoenix Contact USA...
