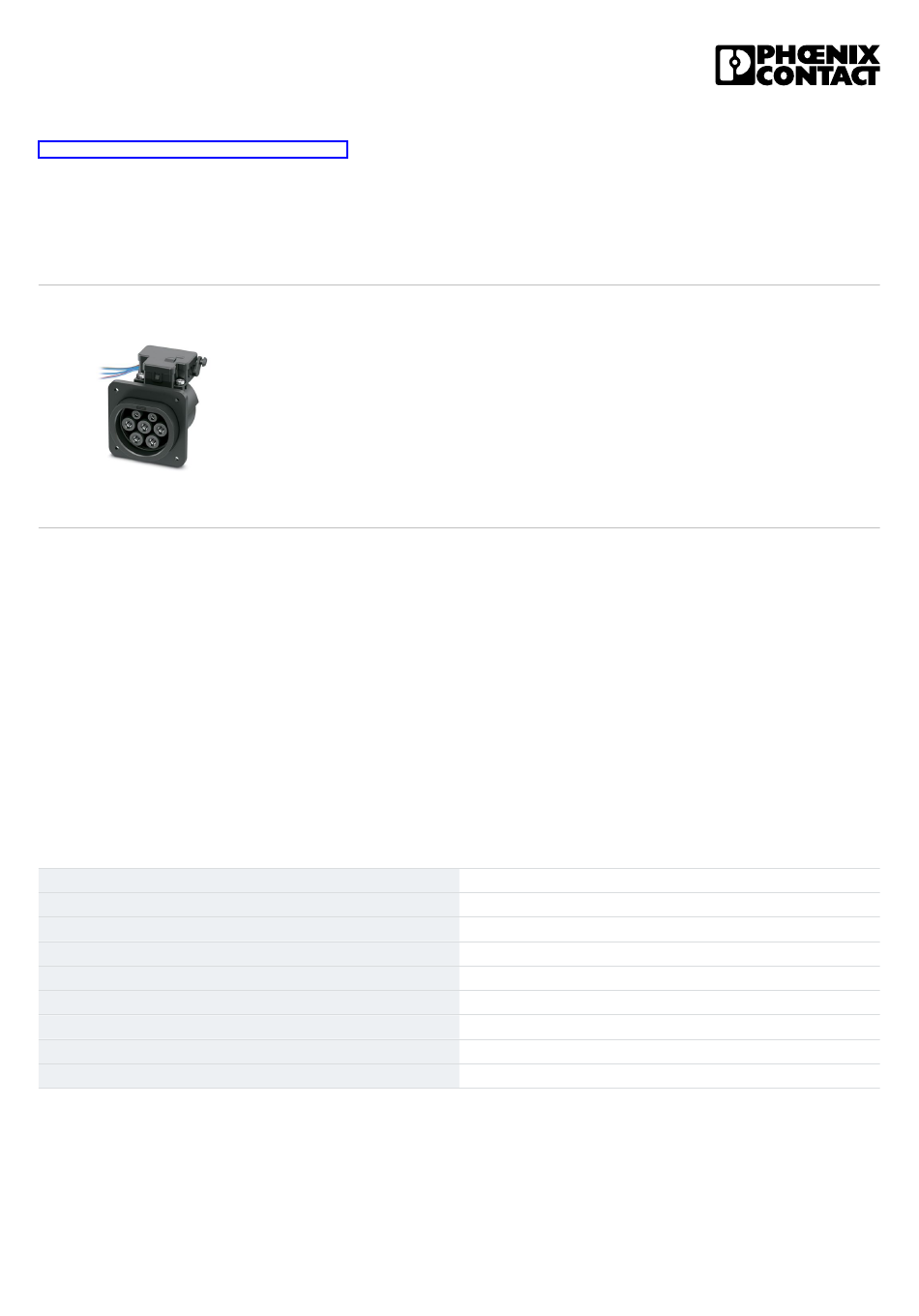

EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure
charging socket
1627785
https://www.phoenixcontact.com/pc/products/1627785
Please be informed that the data shown in this PDF document is generated from our online catalog. Please find the complete data in the user
documentation. Our general terms of use for downloads are valid.
Product description
Infrastructure charging socket for charging electric vehicles (EV) with alternating current (AC), compatible with type 2 Infrastructure Plugs, for
installation at charging stations for E-Mobility (EVSE)
Your advantages
•
Complete product range
•
Uniform, space-saving installation space
•
Available with your logo on request - for consistent branding of your charging station
•
Integrated interlock during charging
•
Manual emergency release of the locking actuator
•
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Commercial data
Item number
Packing unit
Minimum order quantity
Product key
GTIN
Weight per piece (including packing)
Weight per piece (excluding packing)
Customs tariff number
Country of origin
CHARX connect basic, Infrastructure charging socket, square, optimized insertion and
withdrawal forces, for charging electric vehicles (EV) with alternating current (AC), Type 2,
IEC 62196-2, 32 A / 480 V (AC), Single wires, length: 0.7 m, locking actuator: 12 V, 4-pos., Rear
panel mounting, housing: black, PHOENIX CONTACT logo
1627785
1 pc
1 pc
XWBADC
4055626379302
667 g
563 g
85444290
PL
Apr 4, 2024, 9:40 PM
Page 1 (24)
Advertisement
Related Manuals for Phoenix Contact EV-T2M3SE12-3AC32A-07M60E15
Summary of Contents for Phoenix Contact EV-T2M3SE12-3AC32A-07M60E15
- Page 1 EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 Please be informed that the data shown in this PDF document is generated from our online catalog. Please find the complete data in the user documentation. Our general terms of use for downloads are valid. CHARX connect basic, Infrastructure charging socket, square, optimized insertion and withdrawal forces, for charging electric vehicles (EV) with alternating current (AC), Type 2, IEC 62196-2, 32 A / 480 V (AC), Single wires, length: 0.7 m, locking actuator: 12 V, 4-pos., Rear...
-
Page 2: Technical Data
EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 Technical data Product properties Product type Infrastructure charging socket Product family CHARX connect basic Application for charging electric vehicles (EV) with alternating current (AC) compatible with infrastructure charging plugs Design (Infrastructure charging socket) square Design optimized insertion and withdrawal forces... -
Page 3: Material Specifications
EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 Recommended adaptation time 600 ms Pause time after entry or exit path Service life insertion cycles > 10000 load cycles Lock recognition available Mechanical emergency release available Ambient temperature (operation) -30 °C ... 50 °C Material specifications Color (Housing) black (9005) - Page 4 EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 Mounting Mounting type Infrastructure charging socket Rear panel mounting (0 to 90 degree frontal inclination possible) Front mounting (only possible when the locking actuator is removed (see EV-T2M3SE…E00 versions)) Mounting type Protective cover Rear panel mounting (available separately) Max.
-
Page 5: Block Diagram
Drawings Block diagram BU/RD BU/GN BU/YE BU/BN Block diagram of the locking actuator Schematic diagram Panel thickness for rear mounting (max. 50 mm, with Phoenix Contact protective cover, max. 22 mm) Apr 4, 2024, 9:40 PM Page 5 (24) - Page 6 EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 Dimensional drawing Ø68 Hole image Apr 4, 2024, 9:40 PM Page 6 (24)
- Page 7 EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 Schematic diagram Rear mounting with rear protective cover screw connection The screw connection for a protective cover from the accessories range (EV-T2SC) only supports rear mounting. The panel thickness must not exceed 5 mm. The sealing frame that is slid on from the rear must contact the housing panel flush with the flat side and must completely surround the infrastructure socket outlet.
- Page 8 EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 Schematic diagram = ∞ Ω = 0 Ω = ∞ Ω = ∞ Ω = 0 Ω Detection of the Infrastructure Plug Apr 4, 2024, 9:40 PM Page 8 (24)
- Page 9 EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 Diagram 200 400 600 800 1000 1200 1400 1600 t [ms] 200 400 600 800 1000 1200 1400 1600 t [ms] Locking states of the locking actuator Apr 4, 2024, 9:40 PM Page 9 (24)
- Page 10 EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 Schematic diagram [II] [III] [IV] Operating instructions Apr 4, 2024, 9:40 PM Page 10 (24)
- Page 11 EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 Schematic diagram Installation positions Schematic diagram Front mounting with rear protective cover screw connection Front mounting is only possible when the locking actuator is removed. We recommend using an infrastructure socket outlet without pre-assembled locking actuator (EV-T2M3SE-...E0..., e.g., 1621729).
-
Page 12: Connection Diagram
EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 Connection diagram Pin assignment of infrastructure charging socket Apr 4, 2024, 9:40 PM Page 12 (24) - Page 13 EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 Schematic diagram Panel thickness for front mounting (in mm) Apr 4, 2024, 9:40 PM Page 13 (24)
- Page 14 EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 Dimensional drawing 76,2 57,2 11,3 Ø12,8 Dimensional drawing Apr 4, 2024, 9:40 PM Page 14 (24)
- Page 15 EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 Classifications ECLASS ECLASS-11.0 27144706 ECLASS-12.0 27144706 ECLASS-13.0 27144706 ETIM ETIM 8.0 EC002898 UNSPSC UNSPSC 21.0 39121800 Apr 4, 2024, 9:40 PM Page 15 (24)
- Page 16 EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 Environmental product compliance EU RoHS Fulfills EU RoHS substance requirements Exemption 6(c) China RoHS Environment friendly use period (EFUP) EFUP-10 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration".
- Page 17 EV-T2SC - Protective cover 1405217 https://www.phoenixcontact.com/pc/products/1405217 CHARX connect basic, Protective cover, square, Accessories, with self-locking mechanism, for attaching to infrastructure charging sockets, Type 2, IEC 62196- 2, Front mounting, M5 thread, housing: black, Embossed PHOENIX CONTACT logo Apr 4, 2024, 9:40 PM Page 17 (24)
- Page 18 EV-GBSCO - Protective cover 1623415 https://www.phoenixcontact.com/pc/products/1623415 CHARX connect basic, Protective cover, circular, Accessories, with self-opening mechanism, for attaching to infrastructure charging sockets, GB/T, Type 2, GB/T 20234.2, IEC 62196-2, Front mounting, housing: black, Adhered "PHOENIX CONTACT" sticker Apr 4, 2024, 9:40 PM Page 18 (24)
- Page 19 CHARX connect basic, Protective cover, circular, Accessories, with self-locking mechanism, for attaching to infrastructure charging sockets, GB/T, Type 2, GB/T 20234.2, IEC 62196-2, Front mounting, housing: black, Adhered "PHOENIX CONTACT" sticker EV-GBSC-D6,5MM - Protective cover 1623888 https://www.phoenixcontact.com/pc/products/1623888 CHARX connect basic, Protective cover, circular, Accessories, with self-locking mechanism, for attaching to infrastructure charging sockets, GB/T, Type 2,...
- Page 20 EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 EV-T2M3S-E-LOCK12V - Locking 1624129 https://www.phoenixcontact.com/pc/products/1624129 CHARX connect modular, Locking, Accessories, for attaching to infrastructure charging sockets, Type 2, GB/T, IEC 61851-1, Single wires, length: 0.5 m, locking actuator: 12 V, 4-pos. EV-T2M3S-E-LOCK24V - Locking 1622317 https://www.phoenixcontact.com/pc/products/1622317 CHARX connect modular, Locking, Accessories, with single-core wires, without holder, for locking infrastructure charging sockets when plug is inserted, Type 2,...
- Page 21 EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 EV-T2M3S-DRAINAGE-GASKET - Seal 1621668 https://www.phoenixcontact.com/pc/products/1621668 CHARX connect basic, Seal, For the discharge nozzle below the infrastructure charging socket if there is no drainage tube present, Type 2, IEC 62196-2 EV-T2M3S-E-LOCK-GASKET - Seal 1621465 https://www.phoenixcontact.com/pc/products/1621465 CHARX connect basic, Seal, For the mounting surface of the locking actuator above the infrastructure charging socket when there is no locking actuator present, Type 2, IEC 62196-2 Apr 4, 2024, 9:40 PM...
- Page 22 EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 EM-CP-PP-ETH - AC charging controller 2902802 https://www.phoenixcontact.com/pc/products/2902802 EV charge control is used to charge electrical vehicles on the 3-phase AC mains power supply according to IEC 61851-1 Mode 3. All necessary control functions are integrated.
- Page 23 EV-T2M3SE12-3AC32A-0,7M6,0E15 - Infrastructure charging socket 1627785 https://www.phoenixcontact.com/pc/products/1627785 EV-CC-AC1-M3-CBC-SER-PCB - AC charging controller 1622453 https://www.phoenixcontact.com/pc/products/1622453 The EV-CC-AC1-M3-CBC-SER-PCB charging controller as PCB is used for charging electric vehicles at 3-phase AC networks according to IEC 61851-1, Mode 3. All charging functions, comprehensive configuration settings as well as a locking controller are already integrated.
- Page 24 The EV-CC-AC1-M3-CBC-SER-PCB-MSTB charging controller as a PCB for charging electric vehicles according to IEC 61851-1, Mode 3, Case B (Socket Outlet) or C (Vehicle Connector). Connection via PCB connector on header. Phoenix Contact 2024 © - all rights reserved https://www.phoenixcontact.com PHOENIX CONTACT GmbH & Co. KG Flachsmarktstraße 8...
