Analog Addressable
Photoelectric / Heat Detector
L
TD
TPH-482A
Multi-sensor
Technical Manual
TPH-482AEn101.pdf
Revision 1.01
August 2023
Advertisement
Related Manuals for Telefire TPH-482A
Summary of Contents for Telefire TPH-482A

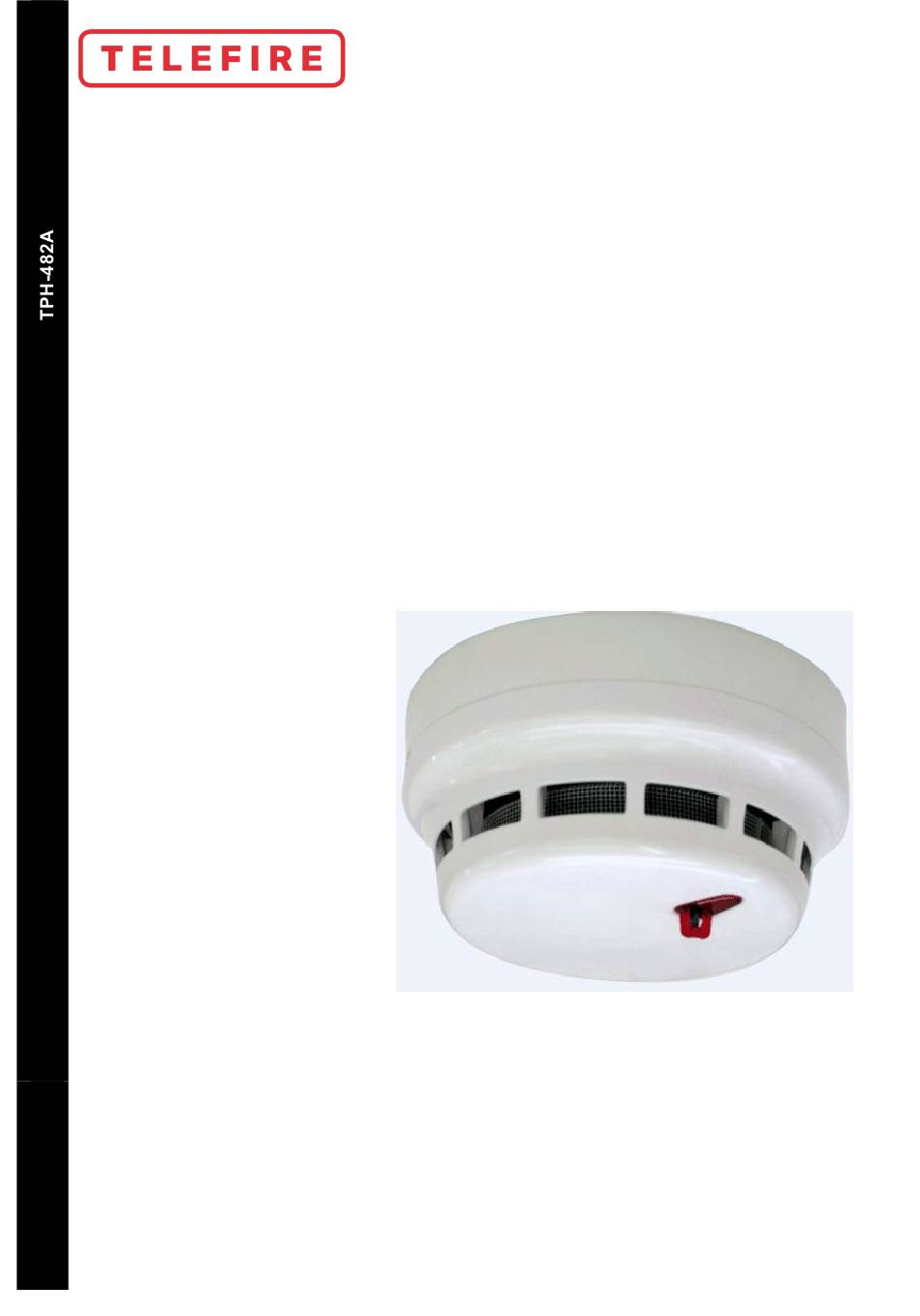

- Page 1 TPH-482A Analog Addressable Multi-sensor Photoelectric / Heat Detector Technical Manual & G ELEFIRE ETECTORS PO Box 7036 Petach Tikva 49250 Israel Tel: 972 3 921 1955 TPH-482AEn101.pdf Fax: 972 3 921 1816 Revision 1.01 eMail: marketing@telefire.co.il August 2023 Web: www.telefire.co.il...
- Page 2 The terms “Trouble” as used in NFPA 72 guideline, UL 864 and UL 268 standards and “Fault” as used in EN 54 standards are used interchangeably throughout this manual. Note Do not install, operate, and maintain this product before fully reading this manual. © 2010 – 2023 Telefire Fire & Gas Detectors Ltd.
- Page 3 This process reduces occurrences of false alarms without reducing sensitivity to real fire. The address of the TPH-482A is programmed into the memory of the detector and can be assigned or changed by using the PROG-4000 programmer.
-
Page 4: Installation
Installation 3.2.1 Address Programming Assign the TPH-482A’s address in the range of 1 – 127 prior to installation by using the PROG-4000 Analog Addressable Detector and Accessory Programmer. Please refer to the PROG-4000 manual for additional details. 3.2.2 ADR-3000 Configuration Configure the detector as “Photo&Heat“A”... - Page 5 TPH-482A © 2010 – 2023 Telefire Fire & Gas Detectors Ltd Revision 1.0 August 2023 For remote signaling use only Telefire's TFL-1NA Auxiliary Signaling Indicator for Analog Addressable Detectors. UL Requirement Smoke detectors are not to be used with detector guards unless the combination has been evaluated and found suitable for that purpose.
-
Page 6: Maintenance
TPH-482A © 2010 – 2023 Telefire Fire & Gas Detectors Ltd Revision 1.0 August 2023 Maintenance The ADR-7000/3000 control panel monitors the analog detectors continuously. Any abnormal condition in the detector will cause a trouble signal to be displayed on the control panel. -
Page 7: Specification
Analog detectors should be cleaned when a maintenance signal appears on the control panel. Local regulations may specify an interval period for maintenance schedule. The TPH-482A's chamber is removable and can be cleaned or replaced. Cleaning should be done by qualified personnel in order to ensure that the detector is properly handled, reassembled correctly and tested for proper operation. - Page 8 TPH-482A © 2010 – 2023 Telefire Fire & Gas Detectors Ltd Revision 1.0 August 2023 Certification Telefire’s TPH-482A Analog Addressable Multi-Sensor Photoelectric / Heat Detector has the following approvals: EN 54-5 and EN 54-7 Approved • IS 1220 Approved •...
