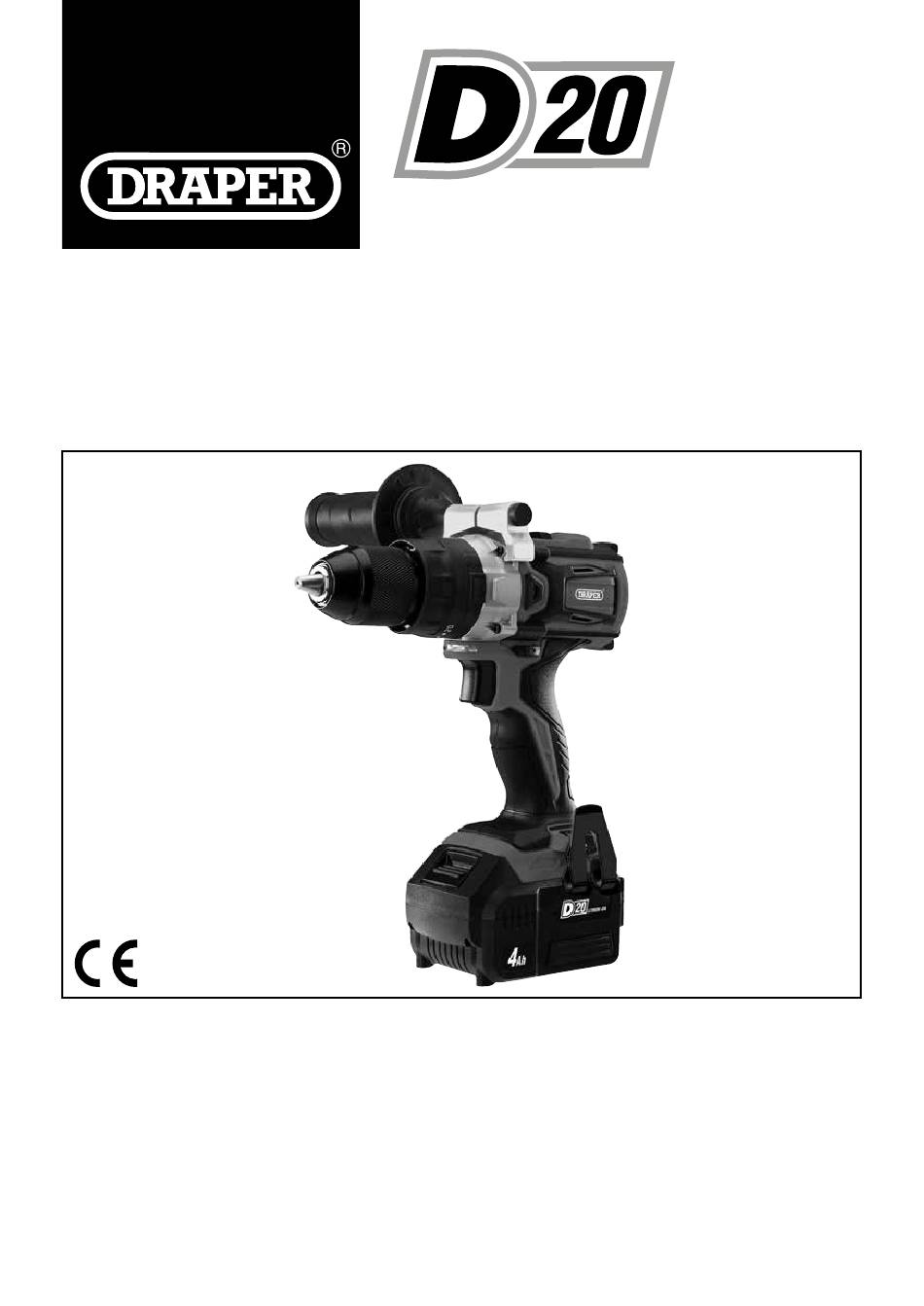

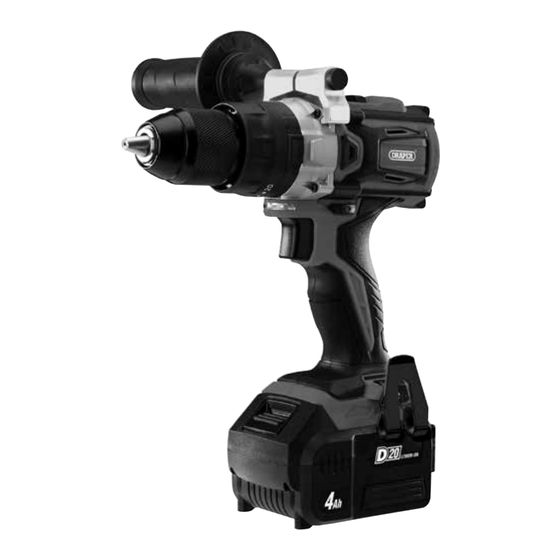

Brushless combi drill

Advertisement

Quick Links

20V BRUSHLESS
COMBI DRILL
55338 & 79894 (EU 91902)
PERCEUSE COMBINÉE
SANS BALAI 20V
55338 & 79894
TALADRO SIN
ESCOBILLAS DE 20V
55338 & 79894
BERBEQUIM
COMBINADO
SEM ESCOVAS DE 20V
55338 & 79894
MULTI-TOOL BATTERY SYSTEM
ORIGINAL LANGUAGE
BÜRSTENLOSER 20V
BOHRSCHRAUBER
55338 & 79894
20V BORSTELLOZE
COMBI-BOORMACHINE
55338 & 79894

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 55338 and is the answer not in the manual?

Questions and answers

Summary of Contents for Draper 55338

  • Page 1 MULTI-TOOL BATTERY SYSTEM  ORIGINAL LANGUAGE 20V BRUSHLESS COMBI DRILL 55338 & 79894 (EU 91902)  PERCEUSE COMBINÉE BÜRSTENLOSER 20V  BOHRSCHRAUBER SANS BALAI 20V 55338 & 79894 55338 & 79894  20V BORSTELLOZE TALADRO SIN  COMBI-BOORMACHINE ESCOBILLAS DE 20V 55338 &...
  • Page 2: Specification

    Wear protective gloves. SPECIFICATION  Long hair must be tied back. 2.1 SPECIFICATION Stock No’s..........55338 & 79894 Part No’s......D20CD60 & D20CD60SET Do not abandon into the environment. Drilling capacities: Wood ............35mm Keep out of the reach of children.
  • Page 3: Health And Safety Information

    ............1.4kg / 2.06kg) c) Do not expose power tools to rain or wet Battery pack (for 55338, sold separately): conditions. Water entering a power tool will Part No..........D20B4.0AH increase the risk of electric shock.
  • Page 4 jewellery or long hair can be caught in moving not allow for safe handling and control of the parts. tool in unexpected situations. g) If devices are provided for the connection Service of dust extraction and collection facilities, a) Have your power tool serviced by a ensure these are connected and properly qualified repair person using only identical used.
  • Page 5 – Do not expose to rain. Keep extension leads away from moving hazardous – Only use Draper D20 battery packs with this product. parts to avoid damages to the cable which can lead to Consult your Draper stockist for details.
  • Page 6: Unpacking And Checking

    Fig A. If any part is damaged • If any of the packaging is to be thrown away, make or missing, please contact the Draper Help Line (see sure they are disposed of correctly, according to local back page). Do not attempt to use the product! regulations.
  • Page 7 6.2 ROTATIONAL DRIVE SELECTION – FIG.2 Screwdriving functions. 6.5 TWO SPEED GEAR BOX – FIG.5 FIG. 6.3 VARIABLE SPEED TRIGGER – FIG.3 FIG. 6.6 AUXILIARY HAND GRIP – FIG.6 Warning! Always use the auxiliary handle (10) supplied. Loss of control can cause personal injury. The auxiliary handle can be installed on either side of the tool.
  • Page 8 (11.1) 6.11 BATTERY PACK CHARGING – FIGS. 9 – 10 (11) 55338 is supplied “bare”, without battery pack or charger. For compatible batteries, chargers and accessories please visit www.drapertools.com. FIG. – 8 –...
  • Page 9 6.14 BATTERY LIFE EFFICIENCY AND Caution: Only use the plug to disconnect from the power supply, never use the cable. CHARGING ADVICE Caution: If the battery charger has been in continuous – A rechargeable battery will be hot immediately after use it will be hot.
  • Page 10: Troubleshooting Guide

    Draper power tools have been carefully tested & inspected and are guaranteed to be free from defective Do not use solvents or fuels to clean the product. When materials or workmanship.
  • Page 11: Battery Pack Disposal Information

    NOTES DISPOSAL  9.1 DISPOSAL ....................– At the end of the machine’s working life, or when it ....................can no longer be repaired, ensure that it is disposed ....................of according to national regulations....................– Contact your local authority for details of collection schemes in your area.
