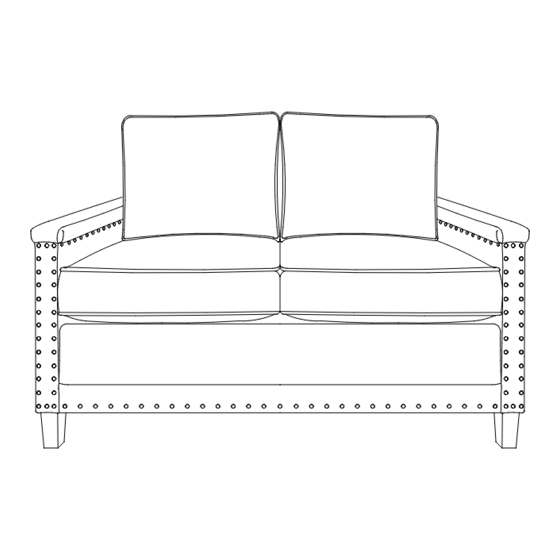

EEI-4985, EEI-4987 SOFA
Thank you for purchasing the MODWAY SOFA.
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the sofa, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all pieces out of reach of children.
Components:
1. Front Rail
x1
4. Back
x1
7. Back Cushion
Customer Service 609-256-9000︱www.modway.com
2. Left Armrest
5. Seat Frame
x2
8. Seat Cushion
Hardware:
A.
B.
C.
D.
x1
3. Right Armrest
x1
6. Leg with Flat Washer
x2
Bolt M6x25mm
Flat Washer
x1
L Steel Plate
x1
Allen Wrench
x1
x1
x4
Page 1 of 5
x1
Advertisement
Table of Contents
Related Manuals for modway EEI-4985
Summary of Contents for modway EEI-4985
- Page 1 EEI-4985, EEI-4987 SOFA Thank you for purchasing the MODWAY SOFA. Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2. Owing to the size and weight of the sofa, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI-4985, EEI-4987 SOFA STEP 1: 1. Remove the hardware bag from the Leg with Flat Washer (6) package 2. Insert Front Rail (1) to Left Armrest (2) by using the pre-installed Clips on Front Rail (1) and the pre-installed Bolts on Left Armrest (2) to lock each other as shown.
- Page 3 EEI-4985, EEI-4987 SOFA STEP 3: Insert Back (4) to Left Armrest (2) and Right Armrest (3) by using the pre-installed Clips on Left Armrest (2), Right Armrest (3) and Back (4) to lock each other as shown. STEP 4: 1. Insert Seat Frame (5) to the assembled Sofa Seat (1), Left Armrest (2), Right Armrest (3) and Back (6) by using the pre-installed Clips on Seat Frame (5), Left Armrest (2) and Right Arm (3) to lock each other as shown.
- Page 4 Seat Cushions (8) as shown with Figure 1 and follow Compressed Packing Guideline for restoring. Note: Please skip STEP 5.2/5.3/5.4 if you assemble EEI-4985 now. 2. Please put Covers of Back Cushions (7) on a carpeted or padded area and fully open the zippers as shown.
- Page 5 EEI-4985, EEI-4987 SOFA STEP 6 1. Carefully turn over the assembled Sofa. 2. Carefully put 2 pieces of Back Cushions (7) and 2 pieces of Seat Cushions (8) to the assembled sofa as shown. Assembly is complete. Your Sofa is ready to enjoy now! Customer Service 609-256-9000︱www.modway.com...
