Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
prodotto tra le
migliori offerte di Case e Alimentatori
PS 1 5
PS

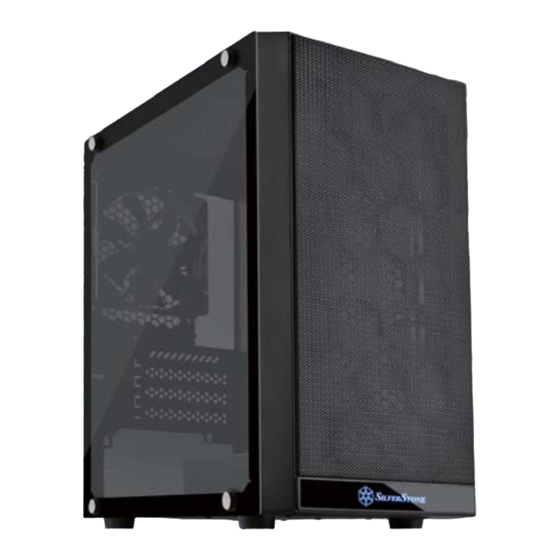

Affordable and compact Micro-ATX chassis
Affordable and compact Micro-ATX chassis
Affordable and compact Micro-ATX chassis
with outstanding cooling potential
with outstanding cooling potential
with outstanding cooling potential
SilverStone PS15 Nero + Vetro
o cerca il tuo
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SilverStone PRECISION PS15
Summary of Contents for SilverStone PRECISION PS15
- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per SilverStone PS15 Nero + Vetro o cerca il tuo prodotto tra le migliori offerte di Case e Alimentatori PS 1 5 Affordable and compact Micro-ATX chassis Affordable and compact Micro-ATX chassis...
-
Page 2: Disassemble Chart
DISASSEMBLE CHART 2.5" BAY X2 12025 FAN X2 (OPTION) 14025 FAN X2 (OPTION) FILTER RIGHT SIDE PANEL 12025 FAN X1 12025 FAN X2 (OPTION) 14025 FAN X2 (OPTION) MICRO ATX M/B (OPTION) MINI ITX M/B (OPTION) PS2 PSU (OPTION) USB 3.0 X2 + MIC + SPK + HDD LED 2.5"... - Page 3 2.5" / 3.5" DRIVE INSTALLATION GUIDE Install the 3.5"/2.5" hard drive into the 3.5” drive bracket, and then slide the whole 3.5” bracket into the chassis. Install 2.5” drive screws and anti-vibration pads onto the bottom of 2.5” drive, and then install the assembled drive on top of the 3.5”...
-
Page 4: Component Size Limitations
COMPONENT SIZE LIMITATIONS he PS15 was designed to accommodate oversized components, but we still recommend referring to the following dimension guidelines: (1) CPU Cooler limitation 154mm 25mm Height limitation for CPU cooler is 154mm with 25mm clearance over the motherboard’s top edge, and if there is still fan installation over the motherboard;... - Page 5 (3) Graphics card / expansion card length limitation 314mm PS15 can support 12.3" (314mm) graphics cards...
- Page 6 LIQUID COOLER RADIATOR SUPPORT The rear fan slot supports one 120mm radiator. The 41mm of clearance from the right edge of fan slot is to the motherboard surface. If you wish to install a radiator in this position, please ensure motherboard components do not interfere with it. 41mm The front fan slots support 120mm or 240mm radiators.
-
Page 7: Warranty Terms And Conditions
WARRANTY ll SilverStone retail products have from the date of purchase, a minimum of 1 year limited warranty (select products listed below have 2, 3 or 5 year warranty) WARRANTY TERMS & CONDITIONS Product component defects or damages resulted from defective production is covered under warranty. - Page 8 Warranty covers only the original purchaser through authorized SilverStone distributors and resellers and is not transferable to a second hand purchaser. You must provide sales receipt or invoice with clear indication of purchase date to determine warranty eligibility. If a problem develops during the warranty period, please contact your retailer/reseller/SilverStone authorized distributors or SilverStone http://www.silverstonetek.com.
- Page 9 All products should be sent back to the place of purchase if it is within 30 days of purchase, after 30 days, customers need to initiate RMA procedure with SilverStone Technology in USA by first downloading the “USA RMA form for end-users” form from the below link and follow its instructions.
- Page 10 ©2018 SilverStone Technology Co., Ltd. All Rights Reserved ALL trademarks are registered to their respective owners...
