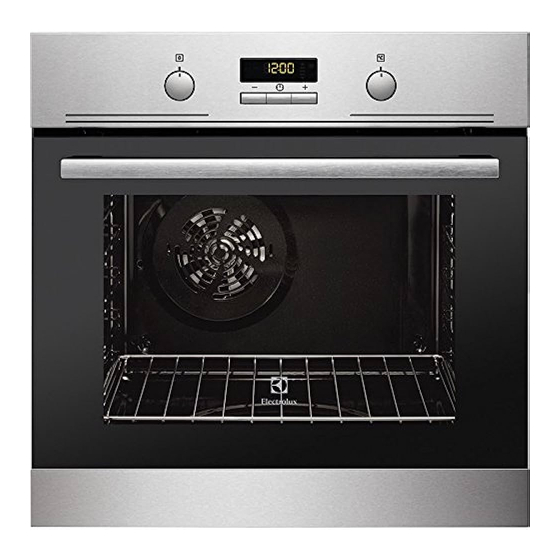

- Page 1 EN User Manual | Oven EZC2430AOX...
-
Page 2: Table Of Contents
WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. -
Page 3: Safety Information
SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. -
Page 4: Safety Instructions
similar accommodation where such use does not exceed (average) domestic usage levels. • Only a qualified person must install this appliance and replace the cable. • Do not use the appliance before installing it in the built-in structure. • Disconnect the appliance from the power supply before carrying out any maintenance. - Page 5 • Before mounting the appliance, check if • Make sure not to cause damage to the the appliance door opens without restraint. mains plug and to the mains cable. Should • The appliance is equipped with an electric the mains cable need to be replaced, this cooling system.
- Page 6 The earth cord (green / yellow cable) must be • Discoloration of the enamel or stainless 2 cm longer than the brown phase and blue steel has no effect on the performance of neutral cables. the appliance. • Use a deep pan for moist cakes. Fruit 2.3 Use juices cause stains that can be permanent.
- Page 7 – any removable objects (including • Concerning the lamp(s) inside this product shelves, side rails, etc., provided with and spare part lamps sold separately: the appliance) especially any non-stick These lamps are intended to withstand pots, pans, trays, utensils, etc. extreme physical conditions in household •...
-
Page 8: Installation
3. INSTALLATION 3.1 Building in WARNING! Refer to Safety chapters. (*mm) min. 550 min. 560 (*mm) min. 550 min. 560 3.2 Securing the oven to the cabinet ENGLISH... -
Page 9: Product Description
4. PRODUCT DESCRIPTION 4.1 General overview Control panel Knob for the heating functions Display Control knob (for the temperature) Air vents for the cooling fan Heating element Lamp Shelf support, removable Shelf positions 4.2 Accessories • Telescopic runners With the telescopic runners you can put in •... -
Page 10: Before First Use
5.3 Display A. Timer / Temperature B. Heat-up and residual heat indicator C. Food Sensor (selected models only) D. Door lock (selected models only) E. Hours / minutes F. Demo Mode (selected models only) G. Clock functions 6. BEFORE FIRST USE Set the time before you use the oven. - Page 11 7.2 Heat-up indicator Heating Application When the oven function operates, the bars in function the display appear one by one when the This function is designed to save en‐ temperature in the oven increases, and ergy during cooking. When you use disappear when it decreases.
-
Page 12: Clock Functions
8. CLOCK FUNCTIONS 8.1 Clock functions table Clock function Application To show or change the time of day. You can change the time of day only when the oven is off. Time of Day To set the length of cooking. Use only when a heating function is set. Duration To set the oven turn-off time. - Page 13 Step 2 - press repeatedly. - starts to flash. Step 3 - press to set the minutes. - press to confirm. Step 4 - press to set the hours. - press to confirm. When the set time ends the signal sounds for 2 min. Time setting flashes in the display. The oven turns off automatically.
-
Page 14: Using The Accessories
Step 4 - press to set the hour for the function: Duration. - press to confirm. - starts to flash. Step 5 - press to set the hour for the function: End Time. - press to confirm. Step 6 - press to set the minutes for the function: End Time. - press to confirm. -
Page 15: Additional Functions
Wire shelf: Push the shelf between the guide bars of the shelf support and make sure that the feet point down. Deep pan: Push the tray between the guide bars of the shelf support. 10. ADDITIONAL FUNCTIONS 10.1 How to use: Child lock 10.3 Automatic switch-off When the function is on the oven cannot be For safety reasons the appliance turns off... -
Page 16: Hints And Tips
appliance, the cooling fan can continue to overheating. To prevent this, the oven has a operate until the appliance cools down. safety thermostat which interrupts the power supply. The oven turns on again 10.5 Safety thermostat automatically when the temperature drops. Incorrect operation of the oven or defective components can cause dangerous 11. - Page 17 (°C) (min) Sweet rolls, 12 pieces baking tray or dripping pan 35 - 40 Rolls, 9 pieces baking tray or dripping pan 35 - 40 Pizza, frozen, 0.35 kg wire shelf 35 - 40 Swiss roll baking tray or dripping pan 30 - 40 Brownie baking tray or dripping pan...
-
Page 18: Care And Cleaning
( °C) (min) Small cakes, Conventional Baking tray 25 - 35 16 per tray Cooking Small cakes, Fan Cooking Baking tray 20 - 30 16 per tray Small cakes, Fan Cooking Baking tray 2 and 3 20 - 30 16 per tray Apple pie, 2 Conventional Wire shelf... - Page 19 12.1 Notes on cleaning Clean the front of the appliance only with a microfibre cloth with warm water and a mild de‐ tergent. Use a cleaning solution to clean metal surfaces. Clean stains with a mild detergent. Cleaning Agents Clean the cavity after each use. Fat accumulation or other residue may cause fire. Moisture can condense in the appliance or on the door glass panels.
- Page 20 Before the Pyrolysis: Turn off the oven and wait until Remove all accessories. Clean the oven floor and the inner door it is cold. glass with warm water, a soft cloth and a mild detergent. Step 1 Set the function: - flashes.
- Page 21 Step 1 Open the door fully and hold both hinges. Step 2 Lift and pull the latches until they click. Step 3 Close the oven door halfway to the first opening position. Then lift and pull to remove the door from its seat. Step 4 Put the door on a soft cloth on a stable sur‐...
- Page 22 Step 6 First lift carefully and then remove the glass panels one by one. Start from the top panel. Step 7 Clean the glass panels with water and soap. Dry the glass panels carefully. Do not clean the glass panels in the dishwasher. Step 8 After cleaning, install the glass panels and the oven door.
-
Page 23: Troubleshooting
Before you replace the lamp: Step 1 Step 2 Step 3 Turn off the oven. Wait until the Disconnect the oven from the Put a cloth on the bottom of the cav‐ oven is cold. mains. ity. Back lamp Step 1 Turn the glass cover to remove it. -
Page 24: Energy Efficiency
......... 14. ENERGY EFFICIENCY 14.1 Product Information and Product Information Sheet Supplier's name Electrolux Model identification EZC2430AOX 944064613 Energy Efficiency Index 81.0 Energy efficiency class Energy consumption with a standard load, conventional mode 0.87 kWh/cycle Energy consumption with a standard load, fan-forced mode 0.64 kWh/cycle... -
Page 25: Environmental Concerns
IEC/EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Meth‐ ods for measuring performance. 14.2 Energy saving heating elements automatically turn off earlier in some appliance functions. The fan and lamp continue to operate. When you turn off the appliance, the display shows The appliance has features which help the residual heat. - Page 28 867348297-B-062023...
