Summary of Contents for Electrolux EZF5C50V

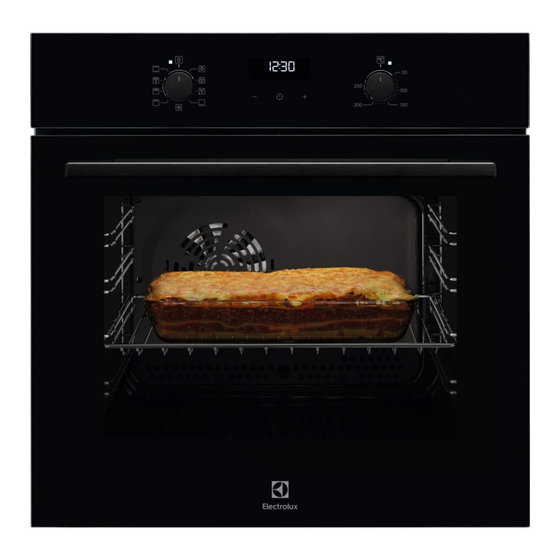

  • Page 1 EZF5C50V EZF5C50X EZF5C50Z Oven User Manual...

  • Page 2: Table Of Contents

    14. ENERGY EFFICIENCY.................. 27 WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.

  • Page 3: Safety Information

    ENGLISH SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

  • Page 4: Safety Instructions

    WARNING: The appliance and its accessible parts • become hot during use. Care should be taken to avoid touching heating elements. Always use oven gloves to remove or put in • accessories or ovenware. Before carrying out any maintenance, disconnect the •...
  • Page 5 ENGLISH electrical ratings of the mains power • Deactivate the appliance after each supply. use. • Always use a correctly installed • Be careful when you open the shockproof socket. appliance door while the appliance is • Do not use multi-plug adapters and in operation.
  • Page 6 • Do not clean the catalytic enamel (if the appliance is in operation. Heat applicable) with any kind of detergent. and moisture can build up behind a 2.5 Internal lighting closed furniture panel and cause...

  • Page 7: Product Description

    ENGLISH 3. PRODUCT DESCRIPTION 3.1 General overview Control panel Power lamp / symbol Knob for the heating functions Display Control knob (for the temperature) Temperature indicator / symbol Air vents for the cooling fan Heating element Lamp Shelf support, removable Shelf positions 3.2 Accessories •...

  • Page 8: Before First Use

    5. BEFORE FIRST USE 1. Set the function .Set the maximum WARNING! temperature. Refer to Safety chapters. 2. Let the oven operate for 1 hour. To set the Time of day refer 3. Set the function . Set the to "Clock functions"...

  • Page 9: Clock Functions

    ENGLISH Oven func‐ Application Oven func‐ Application tion tion This function is de‐ To defrost food (vegeta‐ signed to save energy bles and fruit). The de‐ during cooking. For the frosting time depends Moist Fan Defrost cooking instructions re‐ on the amount and size Baking fer to "Hints and tips"...
  • Page 10 Clock function Application MINUTE MIND‐ To set countdown time. This function has no effect on the operation of the appliance. You can set the MINUTE MINDER at any time, also when the appliance is off. 7.2 Setting the time. Changing 4.

  • Page 11: Using The Accessories

    ENGLISH 7.7 Cancelling the clock 2. Press and hold functions The clock function goes out after some seconds. 1. Press the again and again until the necessary function indicator starts to flash. 8. USING THE ACCESSORIES WARNING! Refer to Safety chapters. 8.1 Inserting the accessories Wire shelf: Push the shelf between the guide bars of...

  • Page 12: Additional Functions

    2. The stop element (A) which is at one 2. Put the wire shelf on the telescopic end of the telescopic runner must runners and carefully push them into point up. the oven. °C Make sure you push back the telescopic runners fully in the oven before you close 8.3 Telescopic Runners...

  • Page 13: Hints And Tips

    ENGLISH 9.2 Safety thermostat the oven has a safety thermostat which interrupts the power supply. The oven Incorrect operation of the oven or turns on again automatically when the defective components can cause temperature drops. dangerous overheating. To prevent this, 10.
  • Page 14 Food Top / Bottom Heat True Fan Cooking Time Com‐ (min) ments Tempera‐ Shelf po‐ Tempera‐ Shelf po‐ ture (°C) sition ture (°C) sition Butter-milk 60 - 80 In a 26 cm cheese cake cake mould Apple 2 (1 and...
  • Page 15 ENGLISH Food Top / Bottom Heat True Fan Cooking Time Com‐ (min) ments Tempera‐ Shelf po‐ Tempera‐ Shelf po‐ ture (°C) sition ture (°C) sition Plate tarts 180 45 - 70 In a 20 cm cake mould Victoria 1 or 2 2 (left and 40 - 55 Left + right...
  • Page 16 Food Top / Bottom Heat True Fan Cooking Time Com‐ (min) ments Tempera‐ Shelf po‐ Tempera‐ Shelf po‐ ture (°C) sition ture (°C) sition Yorkshire 20 - 30 6 pudding mould pudding 1) Preheat the oven for 10 minutes.
  • Page 17 ENGLISH Food Top / Bottom Heat True Fan Cooking Time Com‐ (min) ments Tempera‐ Shelf po‐ Tempera‐ Shelf po‐ ture (°C) sition ture (°C) sition Chicken 70 - 85 Whole on a deep Turkey 210 - 240 Whole on a deep Duck 120 - 150 Whole on...
  • Page 18 Food Quantity Time (min) Pieces Quantity 1st side 2nd side (kg) Beef steaks 10 - 12 6 - 8 Sausages 12 - 15 10 - 12 Pork chops 12 - 16 12 - 14 Chicken (cut in 2) 30 - 35...
  • Page 19 ENGLISH 10.5 Defrost Food Quantity Defrosting Further defrost‐ Comments (kg) time (min) ing time (min) Chicken 100 - 140 20 - 30 Place chicken on an up‐ turned saucer placed on a large plate. Turn half‐ way through. Meat 100 - 140 20 - 30 Turn halfway through.
  • Page 20 Food Accessories Temperature Shelf po‐ Time (min) (°C) sition Rolls, 9 pieces baking tray or dripping 35 - 40 Pizza, frozen, wire shelf 35 - 40 0.35 kg Swiss roll baking tray or dripping 30 - 40 Brownie baking tray or dripping 30 - 40 Soufflè, 6 pieces ceramic ramekins on...
  • Page 21 ENGLISH Food Accessories Temperature Shelf po‐ Time (min) (°C) sition Vegetarian ome‐ pizza pan on wire 30 - 45 lette shelf Mediterranean baking tray or dripping 35 - 40 vegetables, 0.7 10.8 Information for test institutes Tests according to IEC 60350-1. Food Function Acces‐...

  • Page 22: Care And Cleaning

    11. CARE AND CLEANING To clean the door gasket, refer to the WARNING! general information about cleaning. Refer to Safety chapters. 11.4 Removing the shelf 11.1 Notes on cleaning supports / catalytic panels Clean the front of the oven with a soft...
  • Page 23 ENGLISH • clean the oven floor with warm water and mild detergent. • clean the inner door glass with warm water and soft cloth. 1. Set the function 2. Set the oven temperature to 250 °C and let the oven operate for 1 hour. 3.

  • Page 24: Troubleshooting

    8. Clean the glass panels with water and soap. Dry the glass panels carefully. Do not clean the glass panels in the dishwasher. When the cleaning is completed, install the glass panel and the oven door. When installed correctly the door trim clicks.

  • Page 25: Installation

    ENGLISH Problem Possible cause Remedy The oven does not heat The necessary settings are Make sure that the settings not set. are correct. The oven does not heat The fuse is blown. Make sure that the fuse is the cause of the malfunc‐ tion.
  • Page 26 13.1 Building In 13.3 Electrical installation The manufacturer is not responsible if you do not follow the safety precautions from the Safety chapters. min. 550 This appliance is supplied with a main min. 560 plug and a main cable.

  • Page 27: Energy Efficiency

    ENGLISH 14. ENERGY EFFICIENCY 14.1 Product Fiche and information according to EU 65-66/2014 Supplier's name Electrolux EZF5C50V Model identification EZF5C50X EZF5C50Z Energy Efficiency Index 94.9 Energy efficiency class Energy consumption with a standard load, con‐ 0.85 kWh/cycle ventional mode Energy consumption with a standard load, fan- 0.75 kWh/cycle...
  • Page 28 15. ENVIRONMENTAL CONCERNS appliances marked with the symbol Recycle materials with the symbol with the household waste. Return the Put the packaging in relevant containers product to your local recycling facility or to recycle it. Help protect the contact your municipal office.
  • Page 29 ENGLISH...
  • Page 30 www.electrolux.com...
  • Page 31 ENGLISH...
  • Page 32 www.electrolux.com/shop...
