INTERFACE CONNECTIONS

PORT SPEEDS

Example part code:
AMG350-4GAT-1G-P75-PD
Character
F
G

POE CAPABILITIES

Example part code:
AMG350-4GAT-1G-P75-PD
Characters
PoE Standard Supported
None
Non-PoE Port
AT
IEEE 802.3at 30W Port
BT
IEEE 802.3bt 60/90W Port
Note: The maximum available PoE budget will be determined by the PSE
source device used less the power consumption of the switch itself (4W)
along with the distance of the switch from the PSE source (100m max).
AMG Systems Ltd. 3 The Omega Centre, Stratton Business Park, Biggleswade, Bedfordshire, SG18 8QB, UK
T :: +44 (0) 1767 600 777 E :: sales@amgsystems.com
D33642-00

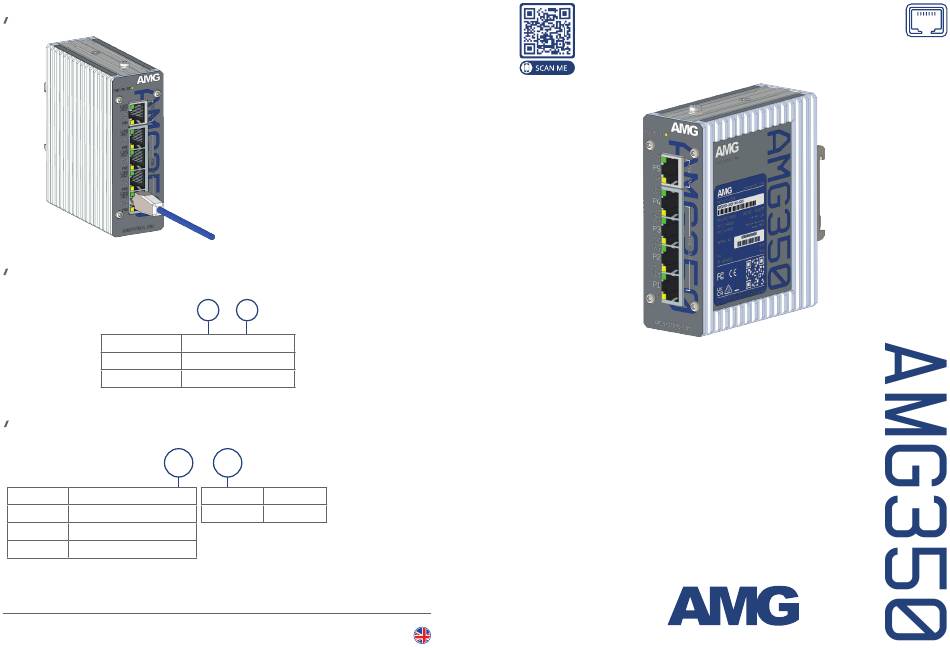

① Insert the Cat5/6 cable into the
RJ45 port.
② Ports 1-4 support IEEE802.3at
PoE output (max 30W per port).
③ If a PD device is connected the
respective PoE LED will turn on.
RJ45 Port Speed
10/100 Base-T(X)
10/100/1000 Base-T(X)
Characters
PoE Budget
IEEE 802.3at Models
P75
75W Max
Type 1 & 2 PoE support
Mode A PSE only
IEEE 802.3bt Models
Type 1, 2, 3 & 4 PoE
support. Mode A
and/or Mode B PSE
Proud to be a British
www.amgsystems.com
Industrial PoE Powered Switch
Industrial PoE Powered Switch
Manufacturer
AMG350-4GAT-1G-P75-PD
AMG350-4GAT-1G-P75-PD
Installation Manual - Hardware
Installation Manual - Hardware
amgsystems.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMG350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AMG AMG350

  • Page 1 PSE source (100m max). and/or Mode B PSE AMG Systems Ltd. 3 The Omega Centre, Stratton Business Park, Biggleswade, Bedfordshire, SG18 8QB, UK amgsystems.com T :: +44 (0) 1767 600 777 E :: sales@amgsystems.com...
  • Page 2 DIN RAIL MOUNT INSTALLATION SURFACE MOUNT INSTALLATION IP RATING ① Remove the DIN rail clip by unscrewing the two fixing screws as shown. ② Attach the included wall mount brackets with the To maintain the units IP40 rating any provided 4 x M3 screws as screw holes that are not used should still shown.
