Ameriwood HOME 5683213COM Manual

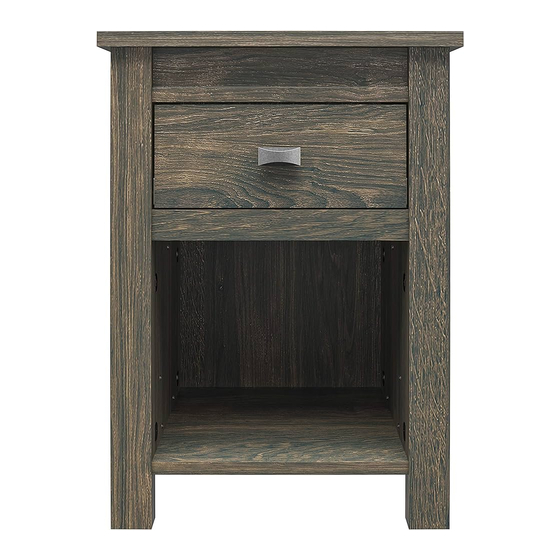

Farmington nightstand
Hide thumbs

Advertisement

Quick Links

Download this manual
5683213COM
Farmington Nightstand
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNING
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
B345683213COM01GO
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
You
Tube
Tough

Advertisement

loading

Related Manuals for Ameriwood HOME 5683213COM

Summary of Contents for Ameriwood HOME 5683213COM

  • Page 1 Easy Tough Assembly Difficulty Meter WARNING Follow Ameriwood Home - Unit can tip over causing severe injury or death. - Anchor unit to stud in wall (if instructed to). - Do Not allow children to climb on unit. - Put heavy items on lower shelves or drawers.

  • Page 2: Helpful Hints

    Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-800-489-3351 Monday-Friday 9am - 5pm CST Tube Visit ameriwoodhome.com Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 ESTIMATED ASSEMBLY TIME: 0.5-1 HOUR - Open your item in the area you plan to keep it to avoid excessive heavy lifting.

  • Page 3: Before You Start

    Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight.

  • Page 4: Board Identification

    Board Identification Not actual size BOTTOM STRINGER T5683213010GO T5683213020GO T5683213030GO QTY: 1 PC QTY: 1 PC QTY: 1 PC CENTER MOLDING LEFT PANEL UPPER FRONT MOLDING T5683213060GO T5683213040GO T5683213050GO QTY: 1 PCS QTY: 1 PC QTY: 1 PC RIGHT PANEL RAIL LEFT PANEL RAIL UPPER SIDE MOLDING...
  • Page 5 Board Identification Not actual size LEFT FRONT LEG RIGHT FRONT LEG LEFT BACK LEG RIGHT PANEL RAIL T5683213120GO T5683213130GO T5683213140GO T5683213110GO QTY: 1 PC QTY: 1 PC QTY: 1 PC QTY: 1 PC RIGHT BACK LEG BACK PANEL DRAWER FRONT T5683213150GO T5683213160GO T5683213170GO...
  • Page 6 Board Identification Not actual size ameriwoodhome.com Tube...

  • Page 7: Part List

    Hardware Bag Reference number: COM0GO 5683213 Part List Actual Size M4 x 19mm Ø8 x 20mm Ø8 x 30mm Ø15 x 10mm ×30 ×30 ×17 ×2 CAM LOCK CAM BOLT WOOD DOWEL BOLT TGO2100 TGO2000 TGO2900 TGO1608 Ø4.2 x 45mm Ø4 x 20mm Ø3 x 12mm Ø3.5 x 12mm...
  • Page 8 STEP ×16 1.1 Attach cam bolt (2) into (L), (M), (N) and (O) as illustrated. ameriwoodhome.com Tube...
  • Page 9 STEP ×8 2.1 Insert (3) into (G) and (F) as illustrated. ameriwoodhome.com Tube...
  • Page 10 STEP Quick Assembly LOCK ×12 Proper orientation of CAM LOCK 3.1 Attach (M), (O) into (G) with (1) as illustrated. 3.2 Attach (L), (N) into (F) with (1) as illustrated. Small holes in rear surface ameriwoodhome.com Tube...
  • Page 11 STEP ×1 ×1 × 2 ×2 ×8 11-2 12-2 4. 1 Insert (3) into (G) and (F) as illustrated. 4.2 Attach (2) into (G), (F) as illustrated. 4.3 Attach (11-2) into (F), (L) with (8) as illustrated. 4.4 Attach (12-2) into (G), (M) with (8) as illustrated. 12-2 11-2 11-2...
  • Page 12 STEP ×7 5.1 Attach (I), (H) into (F) with (6) as illustrated. 5.2 Attach (J) into (F) with (6) as illustrated. FINISHED EDGE ameriwoodhome.com Tube...
  • Page 13 STEP ×7 6.1 Attach (I), (H) into (G) with (6) as illustrated. 6.2 Attach (K) into (G) with (6) as illustrated. FINISHED EDGE ameriwoodhome.com Tube...
  • Page 14 STEP ×16 7.1 Attach (10) into (F) and (G) as illustrated. ameriwoodhome.com Tube...
  • Page 15 STEP ×8 ×7 8.1 Attach cam bolt (2) into (A), (D) as illustrated. 8.2 Insert (3) into (B), (E) and (C) as illustrated. FINISHED EDGE FINISHED EDGE ameriwoodhome.com Tube...
  • Page 16 STEP Quick Assembly LOCK Proper orientation of CAM LOCK ×4 9.1 Attach (E) into (A) with (1) as illustrated. 9.2 Attach (D) into (C) with (1) as illustrated. FINISHED EDGE FINISHED EDGE END VIEW ameriwoodhome.com Tube...
  • Page 17 STEP Quick Assembly LOCK Proper orientation of CAM LOCK ×6 10.1 Attach (C) into (F), (G) with (1) as illustrated. 10.2 Attach (B) into (L), (N),(M) and (O) with (1) as illustrated. ameriwoodhome.com Tube...
  • Page 18 STEP Quick Assembly LOCK Proper orientation of CAM LOCK ×4 11.1 Attach (A) into (F), (G) with (1) as illustrated. ameriwoodhome.com Tube...
  • Page 19 STEP ×12 12.1 Attach (P) into (A), (B), (N) and (O) with (7) as illustrated. ameriwoodhome.com Tube...
  • Page 20 STEP Quick Assembly LOCK ×4 ×4 Proper orientation of CAM LOCK ×4 13.1 Attach cam bolt (2) into (Q) as illustrated. 13.2 Attach (R), (S) into (Q) with (1) as illustrated. 13.3 Attach (R), (S) into (U) with (5) as illustrated. ameriwoodhome.com Tube...
  • Page 21 STEP ×6 ×1 ×1 ×2 11-1 12-1 ×1 14.1 Attach (11-1) into (R) with (8) as illustrated. 14.2 Attach (12-1) into (S) with (8) as illustrated. 14.3 Attach (9) into (Q) with (4) as illustrated. 11-1 12-1 11-1 12-1 ameriwoodhome.com Tube...
  • Page 22 STEP 15.1 Push the Drawer (Q) into the nightstand as illustrated Cabinet Slide Drawer Slide ameriwoodhome.com Tube...
  • Page 23 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 40 lbs. 18.1 kg. 15 lbs. 6.8 kg. 40 lbs. 18.1 kg. Warning: Risk of injury to persons - do not place a television on this furniture. This furniture is not approved for use with a television.
  • Page 24 Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You" to all of our customers for taking the time to assemble this Ameriwood Home product, and to give us your valuable feedback. ameriwoodhome.com Tube...
  • Page 25 Visitez: vis. ameriwoodhome.com Tube Tube Tube...
  • Page 26 (B) BAS (2) CAM BOLT (7) VIS (I) RAIL (10) (11) (Q) TIROIR AVANT Page 8 Page 9 4.3 Fixez (11 Page 12 ameriwoodhome.com Tube Tube Tube...
  • Page 27 Page 18 Page 19 Page 22 Page 23 Page 24 Merci ameriwoodhome.com Tube Tube Tube...
  • Page 28 Español Cubierta Delantera Este libro de instrucciones contiene información IMPORTANTE de seguridad. Por favor lea y manténgalo para referencia en el futuro. No Regrese este producto! Comuniquese con nuestro amistoso equipo de servicio al cliente para obtener ayuda. Llamenos al: 1-800-489-3351 (Gratis) Lunes - Viernes 9am - 5pm CST Visitar: www.ameriwoodhome.com PRECAUCION Este mueble puede volcarse y causar graves heridas y/o muerte.
  • Page 29 Español Página 4 & 5: Identificación de la Junta Página 6: Lista de No es la talla actual Tamaño real (A) PARTE SUPERIOR (1) BLOQUEO DE CAM (B) FONDO (2) PERNO DE LEVA (C) LARGUERO (3) TAPÓN DE MADERA (D) MOLDURA CENTRAL (4) TORNILLO (E) MOLDURA DELANTERA SUPERIOR (5) TORNILLO...
  • Page 30 Visite el sitio web de su tienda local, califique su comprado y denos sus comentarios! Nos gustaría enviar un gran "Agradecimiento" a todos nuestros clientes por tomarse el tiempo de ensamblar este producto de Ameriwood Home, y por darnos sus valiosos comentarios. Gracias ameriwoodhome.com...
