MANUAL CALIBRATION
NOTE: Use a primed system. Verify your calibration. Fluid viscosity changes with temperature.
/ Most accurate
/ Usually only takes one attempt
/ Adjustable to compensate for different measurement containers
Fill a container that can be weighed with approximately 100 gallons. Then select
Divide the weight by uid density to determine gallons dispensed.
"Up"
Adjust the default value
WIRING DIAGRAM
White
Black
Red
Meter Connection
Auto-Batch_High-FlowMeterManual_022024
Adjust
"Dn"
or
to match the volume dispensed.
"Save"
#1 - #5
Press
as uid
Electric valve connection

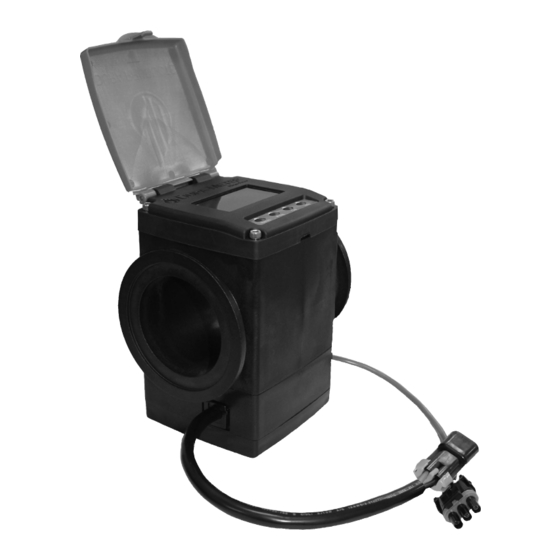

Dura Auto-Batch
High-Flow Meter
Cont"
"
.
Fluid Flow Intiates Measurement
Verify!
and
White
Black
Body Construction Material
Red
*With manual calibration
DPAB-HFM2
Model
M220 Flange
Connection
Meter Accuracy
+/ - 0.5%*
Yes; with back-light timeout
Backlit Display
Max Pressure
Battery Size/Voltage
Polypropylene; Sapphire,
Wetted Materials
EPDM, Viton
40
Minimum GPM
300
Maximum GPM
+32 °F / +140°F
Min/Max Temp
Paddlewheel
Meter Type/Style
GF Polypropylene
Paddle Wheel Bearing
Gallons or Liters
Units Measured
Calibration
6"W x 7"H x 4½"D
Dimensions
Weight
™
DPAB-HFM3
M300 Flange
150 PSI
(2) 9V
Yes
seals
®
80
700
Sapphire
Manual
2.7 lbs
Advertisement
Table of Contents
Related Manuals for DURA Auto-Batch DPAB-HFM2
Summary of Contents for DURA Auto-Batch DPAB-HFM2
- Page 1 MANUAL CALIBRATION Dura Auto-Batch ™ NOTE: Use a primed system. Verify your calibration. Fluid viscosity changes with temperature. / Most accurate High-Flow Meter / Usually only takes one attempt / Adjustable to compensate for different measurement containers Cont” Fill a container that can be weighed with approximately 100 gallons. Then select “...
- Page 2 5 S AV E D C A L I B R AT I O N S INSTALLATION GUIDELINES The following are principles of operation for the Dura Auto-Batch™ High-Flow Meter, intended to This meter is equipped with the ability to save and recall ve different manual calibrations.
