- Page 2 ™ Dura-Meter - Loaded with Features • EP -compliant recirculation system • Fixed or in-line mounting • Extra-large numbers for easy capabilities readability • English or metric units • Easy-to-use menu • Dynamic flow rate in GPM or LPM • Battery strength indicator •...
- Page 3 ™ Thank you for purchasing Dura-Meter New Generation Fluid Meter! Dura Products, Inc. was founded by owners that have been in the farming industry in many capacities, from family farming, to agricultural chemical sales, to sales and ™ service of agricultural pumps and meters. With the introduction of the Dura-Meter in 2011, Dura Products, incorporated durability, versatility and innovation into digital agricultural chemical meters.
- Page 4 ™ Moisture-Sealed Construction Dura-Meter • Electronic circuit impervious to New Generation Fluid Meter moisture Designed for Durability • Strengthened against vibration and Meter Body shock Face Plate • LCD display proven in harsh environments Durable Housing Meter Body • Robust poly-housing with multiple...
-
Page 5: Table Of Contents
T BLE OF CONTENTS POWER UP ......... . 1 Entry, Home HOME SCREEN . -
Page 6: Power Up

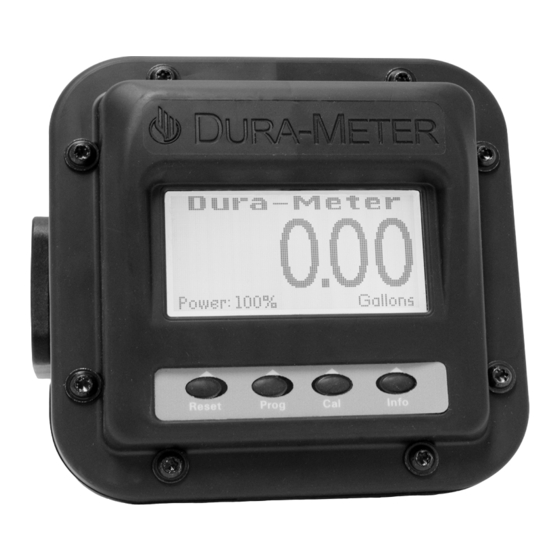

™ Dura-Meter New Generation Fluid Meter Face Plate Operating Instructions Entry Screen I. POWER UP Press any of the four buttons on the FE TURE ™ Dura-Meter to power up. ™ Dura-Meter automatically starts when fluid begins You will see the Entry Screen for a few moving through the meter seconds. -
Page 7: Home Screen
In order to see Batch and Total on the Home screen, make sure Batch Total and Flow Rate (under the Prog button) are set to 'Yes'. . Batch. Keep a tally of the amount metered since Dura-Meter™ was last reset. -
Page 8: Four Button P Nel
III. FOUR-BUTTON P NEL mount Metered Reset Screen Reset. Cycle through several screens to reset the amounts metered (numbers match the Quick-Start Flowchart screen numbers). mount Metered reset screen 2. Batch mount reset screen 3. Total mount reset screen These three screens control three of the values that are visible on the Home screen: Batch ( ), Total (C) and mount Metered (D). - Page 9 7. Unit of Measure Calibration Screen Display Batch/Total* 9. Display Flow Rate* 10. Factory Defaults 11. Water Calibration Reference Cal. Calibrate the meter to the product you are using with either of two methods. 12. Select a calibration method: either Quick or Calib. ™...
-
Page 10: Reset Button
IV. RESET BUTTON mount Metered Reset Screen From the Home Screen, press and hold Reset to see the mount Metered screen. New Button Functions: Home. Return to Home screen Reset. Reset mount Metered to 0.00 Next. From the mount Metered screen, press Next to access the Batch mount Metered screen. -
Page 11: Vprogr M Button
V. PROG BUTTON FE TURE Meter settings are found under the Prog Once you leave the Home button. Here you can select your own Screen, each physical button preferences for each screen, return to the takes on a new function. New factory settings and save a new water digital button labels are displayed above each physical button. -
Page 12: Factory Settings
6. Meter Reset. Preserve the last amount metered or reset to '0.00' when the meter powers on. If you want to preserve the last value for the mount Metered, select 'No'. If you want the mount Metered value to be reset to '0.00' when the meter powers on, choose 'Yes'. -
Page 13: C Libr Tion Button
VI. C L BUTTON Manually calibrate meter for any fluid OR choose from a list of pre-calibrated products. From the Home screen, press and hold Cal to see the Calibration screen. Home. Return to the Home screen Help. Simple instructions about the calibration menus and procedure. Quick. -
Page 14: Quick List Calibration Screen
™ How to use the Calibration Quick-List ™ • The product names in the Quick-List are there to help you find the best reference number for the product you are dispensing. • Search through the list for a product that is similar to the one you are dispensing. -
Page 15: How To Calibrate Manually
How to Calibrate Manually • Purge air from pump hose with two gallons of fluid. ™ • On the Dura-Meter Home screen, press the Cal button, then the Calibr button to access the Calibration screen. The initial value is automatically set at '0.00'. - Page 16 You cannot access the Enter the mount Entered mount Measured screen until at least 2.0 gallons Measured Screen of product have been pumped. • To verify the calibration (optional step), pump product into the calibration container while watching the meter. Stop as close to 5 gallons as possible.
-
Page 17: Inform Tion Button
VII. INFO BUTTON The Info button gives you quick access to Dura Products contact Information, software version and General Help From the Home screen, press and hold Info to see the Contact Information screen. Home. returns you to the Home screen More. -
Page 18: W Rr Nty
Manufacturer. Should the meter be deemed by Dura Products, Inc to be non-repairable it will be replaced, or a credit provided for the cost calculated by the following formula: The number of months since the original manufacture date is divided by 24;... - Page 19 THE PURCH SE PRICE OF THE GOODS. The foregoing warranties will not extend to Goods subjected to misuse, neglect, accident or improper installation or maintenance, or which have been altered or repaired by anyone other than Manufacturer or its authorized representative. Buyer agrees to indemnify, defend and hold harmless Manufacturer, its directors, officers, employees, agents, contractors, representatives, shareholders and affiliates against any loss, damage or liability (including legal costs on a full...
