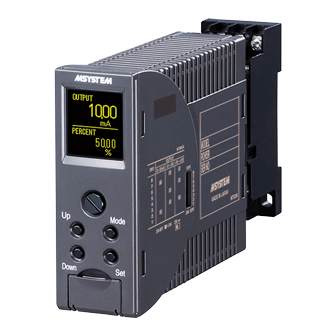

MG Mini-M M2EXS Operating Manual

Self-synch transmitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATING MANUAL
SELF-SYNCH TRANSMITTER
BEFORE USE .... ........................................................................................................... 2
POINTS OF CAUTION ...................................................................................................... 2
COMPONENT IDENTIFICATION .......................................................................................... 2
INSTALLATION ............................................................................................................. 3
TERMINAL CONNECTIONS ............................................................................................... 3
EXTERNAL VIEWS ......................................................................................................... 4
DIP SWITCH ................................................................................................................ 4
SCREEN DISPLAY .......................................................................................................... 5
PROGRAMMING ........................................................................................................... 6
ERROR MESSAGES ...................................................................................................... 18
WIRING INSTRUCTIONS ................................................................................................ 18
CHECKING ................................................................................................................ 18
MAINTENANCE ........................................................................................................... 19
LIGHTNING SURGE PROTECTION ..................................................................................... 19
MG CO., LTD. www.mgco.jp
5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
(PC programmable)
CONTENTS
Mini-M
M2EXS
MODEL
EM-5137-B Rev.6 P. 1 / 19
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini-M M2EXS and is the answer not in the manual?

Questions and answers

Related Manuals for MG Mini-M M2EXS

Summary of Contents for MG Mini-M M2EXS

  • Page 1: Table Of Contents

    SCREEN DISPLAY ......................5 PROGRAMMING ......................6 ERROR MESSAGES ...................... 18 WIRING INSTRUCTIONS ....................18 CHECKING ........................ 18 MAINTENANCE ......................19 LIGHTNING SURGE PROTECTION ..................19 EM-5137-B Rev.6 P. 1 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...

  • Page 2: Before Use

    100 – 120V AC rating: 85 – 132V, 47 – 66 Hz, ≤ 5VA 200 – 240V AC rating: 170 – 264V, 47 – 66 Hz, ≤ 7VA EM-5137-B Rev.6 P. 2 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...

  • Page 3: Installation

    *2. The power input of the unit has polarity. Be sure that the connection for R1 and R2 of the self-synch. When the connetion is reversed, the signal conditioner output will be shifted by 180°. EM-5137-B Rev.6 P. 3 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...

  • Page 4: External Views

    0 – 20 mA -5 – +5 V -10 – +10 V CAUTION: DO NOT set DIP switches while power is supplied. Otherwise, the unit may fail. EM-5137-B Rev.6 P. 4 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...

  • Page 5: Screen Display

    Pressing Mode, Set, Up, or Down button or occurrence of an error restores the display from display off. Set to ‘0’ to keep the display ‘always on’. EM-5137-B Rev.6 P. 5 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...

  • Page 6: Programming

    Hold down Mode Button for ≥ 2 seconds Hold down Mode Button for ≥ 8 seconds Linearization Mode Hold down Mode Button for ≥ 2 seconds EM-5137-B Rev.6 P. 6 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 7 ‘Unlock’. To enable lockout setting again, set ‘Lock’. Even when lockout setting is enabled, it is available to confirm the each setting value. ‘DATA (Locked)’ is indicated in that case. EM-5137-B Rev.6 P. 7 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 8 -5.00 – 0.00 Overrange output < 0 % Down 100.00 – 105.00 Overrange output > 100 % Down Cancel / Set Loop test Down EM-5137-B Rev.6 P. 8 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 9 Overrange output < 0 % -5.00 – 0.00 -5.00 Overrange output > 100 % 100.00 – 105.00 105.00 Loop test -5.00 – 105.00 Cancel EM-5137-B Rev.6 P. 9 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 10 Available range between -5.00 to 0.00 %. [24] Overrange output > 100 % Set the output range not less than 100 %. Available range between 100.00 to 105.00 %. EM-5137-B Rev.6 P. 10 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 11 *1. While loop test is performing, actual input is disregarded. While loop test is performing and ‘Display timeout’ is enabled to display off, return to the display on by pressing a front button. EM-5137-B Rev.6 P. 11 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 12 Output Zero fine adjust -5.000 – 5.000 0.000 Output Span fine adjust 95.000 – 105.000 100.000 Lockout setting Lock / Unlock — Lock EM-5137-B Rev.6 P. 12 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 13 0 − 9 A − Z a − z ! ” # $ % & ’ ( ) = - + * ^ | @ ` [ ] { } ; : < > ? _ , . / Initial value: % EM-5137-B Rev.6 P. 13 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 14 0 (always on), 1 – 60 min. Reset all settings OFF / RESET — Version indication — — — Lockout setting Lock / Unlock — Lock EM-5137-B Rev.6 P. 14 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 15 It is available to set the range between 0 – 60 minutes. Set ‘0’ to display ‘always on’. When error is occurred at display off, the display returns from off. Initial value: 10 EM-5137-B Rev.6 P. 15 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 16 2 – 32 — 102 – Table -5.00 – 105.00 X001 -5.00 Y001 -5.00 X002 105.00 Y002 105.00 Lockout setting Lock / Unlock — Lock EM-5137-B Rev.6 P. 16 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 17 X. These two data are linearly interpolated and Y is obtained and output it. Yn+1 Output % Input % Xn+1 EM-5137-B Rev.6 P. 17 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...

  • Page 18: Error Messages

    180°. 3.3 (.13) max 4) Output: Check that the load resistance meets the de- scribed specifications. mm (inch) EM-5137-B Rev.6 P. 18 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...

  • Page 19: Maintenance

    LIGHTNING SURGE PROTECTION We offer a series of lightning surge protector for protec- tion against induced lightning surges. Please contact us to choose appropriate models. EM-5137-B Rev.6 P. 19 / 19 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
