WAHLAP TECH STORM RIDER 2 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Ver.1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STORM RIDER 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WAHLAP TECH STORM RIDER 2

Summary of Contents for WAHLAP TECH STORM RIDER 2

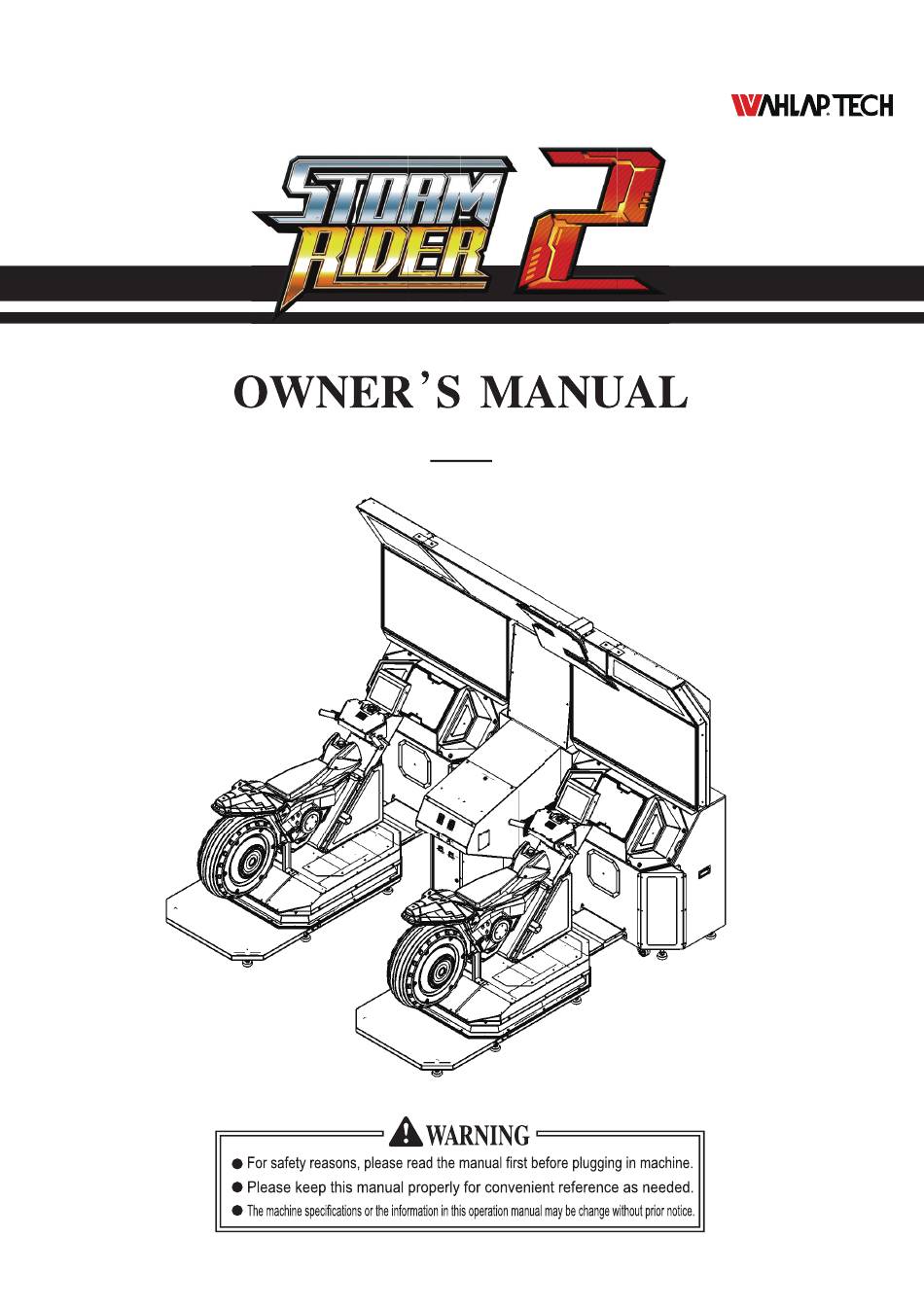

  • Page 1 Ver.1.00...

  • Page 3: Table Of Contents

    Table of Contents About This Manual 1. Safety Precautions 1.1 Warning Stickers 1.2 Placing Site 1.3 Safety Precautions 1.4 Precautions during Play 1.5 Transporting and moving 1.6 Installing and Placing 1.7 Caution & Warning Stickers 2. Product Description 2.1 Product Specification 2.2 Overview 2.3 Parts Name 2.4 Shipment List...
  • Page 4 5.1 Maintenance and service 5.2 Part Replacement 5.2.1 Replacement of woofers 5.2.2 Replacement of light bar under LCD 5.2.3 Replacement of main machine 5.2.4 Replacement of power supply box 5.2.5 Replacement of IO board 5.2.6 Replacement of leakage protection switch 5.2.7 Replacement of token acceptor 5.2.8 Replacement of air compressor 5.2.9 Replacement of relay...
  • Page 5 6.4.6 Assembling of decoration under LCD（SR2-0206000） 6.4.7 Assembling of woofers（SR2-0207000） 6.4.8 Assembling of main machine（SR2-0208000） 6.4.9 Assembling of door for LCD（SR2-0209000） 6.4.10 Assembling of power amplification board,right（SR2-0210000） 6.4.11 Assembling of fan 1（SR2-0211000） 6.4.12 Assembling of right light frame（SR2-0212000） 6.5 Assembling of left frame（SR2-0300000） 6.5.1 Assembling of left bottom frame for LCD（SR2-0301000）...
  • Page 6 6.8.4 Assembling of small LCD（SR2-0604000） 6.9 Assembling of door of supporting seat（SR2-0700000） 6.10 Assembling of theme light box（SR2-0800000） 6.11 Assembling of light box for gameplay description（SR2-0900000） 7.Printing Pattern 8.Wiring Diagram After-sales Service...

  • Page 7: Safety Precautions

    1. Safety Precautions 1.1 Warning Stickers In order to avoid injury to related people and damage to property, please observe the followings: PLEASE READ FIRST PLEASE READ FIRST The following marks can be used to indicate the magnitudes of risk and damage caused by ignorance or improper operation: Warning Warning...

  • Page 8: Safety Precautions

    1.3 Safety Precautions...

  • Page 9: Precautions During Play

    1.4 Precautions during Play 1.5 Transporting and moving...

  • Page 10: Installing And Placing

    1.6 Installing and Placing...

  • Page 11: Caution & Warning Stickers

    1.7 Caution & Warning Stickers...

  • Page 12: Product Description

    2. Product Description 2.1 Product Specification Location Indoor Only Dimension 3060(W)×2670(D)×2490(H) AC220V 50HZ /60HZ Rated Voltage、 Frequency AC110V 50HZ /60HZ Power Consumption 2150W Weight 950kg 5~40 。 C Temperature Range * 110V voltage can be set through the transformer and fuse. Please contact the distributor for details. NOTE:The contents herein described are subject to change without notice.

  • Page 13: Overview

    2.2 Overview Side View Rear View Top View Bottom View...

  • Page 14: Parts Name

    2.3 Parts Name Left light box Theme light box Gameplay signboard Right light box Small LCD on bike body Console Acceleration button Token slot Liquid crystal display Token return bucket Woofer Bike handle Motorcycle body Motion table Safety tail seat...

  • Page 15: Shipment List

    2.4 Shipment List Packing Carton 1 water 2C SR2-9901E05 Right body carton cover 850g T-7 Right body carton water 2C SR2-9901E04 enclosure 850gT-7 Right light box SR2-9906000 packaging SR2-9901E03 limit wood 2 wood SR2-9901E02 limit wood 1 wood Motorbike body floor SR2-9901E01 stand Motorcycle body...
  • Page 16 Packing Carton 2 water 2C SR2-9901E05 Right body carton cover 850g T-7 Right body carton water 2C SR2-9901E04 enclosure 850g T-7 SR2-9907000 Left light box packaging Packaging of loose SR2-9910000 parts SR2-9901E03 limit wood 2 wood SR2-9901E02 limit wood 1 wood Motorbike body floor SR2-9901E01...
  • Page 17 Packing Carton 3 water 2C Right LCD frame carton SR2-9903E05 850g cover water 2C Right LCD frame carton SR2-9903E04 850g enclosure Accessory box Play method Kanban light box SR2-9903E03 Frame limit wood 2 wood SR2-9903E02 Frame limit wood 1 wood SR2-9903E01 LCD body floor stand Right LCD frame...
  • Page 18 Packing Carton 4 water 2C left LCD frame carton SR2-9904E02 850g cover water 2C left LCD frame carton SR2-9904E01 850g enclosure SR2-0500000 LOGO frame assembly SR2-9903E03 Frame limit wood 2 wood SR2-9903E02 Frame limit wood 1 wood SR2-9903E01 LCD body floor stand Left LCD frame Draw No.
  • Page 19 Packing Carton 5 water 2C Console bottomless SR2-9905E04 850g half-page box control panel limit wood SR2-9905E03 wood control panel limit wood SR2-9905E02 wood SR2-9905E01 control panel floor stand control panel Draw No. Name Material/Spec. Qty. Remark...
  • Page 20 Packing Carton 6 Left lamp frame SR2-0307000 assembly Right lamp frame SR2-0212000 assembly Theme light box SR2-0800000 assembly water 2C SR2-9908E01 Themed acrylic cartons 850g Draw No. Name Material/Spec. Qty. Remark...
  • Page 21 Packing Carton 7 Description Support SR2-0000A09 SPCC-1.5T plate water 2C Motorbike handlebar SR2-9909E04 850g T- carton Motorcycle head SR2-0600000 assembly Draw No. Name Material/Spec. Qty. Remark...
  • Page 22 Packing Carton 8 water 2C Motorbike handlebar SR2-9909E04 850g T- carton Motorcycle head SR2-0600000 assembly Draw No. Name Material/Spec. Qty. Remark...
  • Page 23 Packaging carton for right light box SR2-9906E01 Light box carton right light box Draw No. Name Material/Spec. Qty. Remark...
  • Page 24 Packaging carton for left light box SR2-9906E01 Light box carton Left light box Draw No. Name Material/Spec. Qty. Remark...
  • Page 25 Packaging carton for separate parts SR2-0000A03 junction plate SPCC-1.5T SR2-0000A04 Connecting cover plate SPCC-1.2T water 2C SR2-9910E01 Bulk cartons 850g Safety tailstock SR2-0113000 assembly Draw No. Name Material/Spec. Qty. Remark...

  • Page 26: Packing List

    2.5 Packing List Please check the following items after purchasing our product. If any part missing or damaged, please contact our sales person! Description Specification Quantity Remarks Separation column Black-POM Upper connecting SPCC-1.5T plate of light box Lower connecting SPCC-1.5T plate of light box Water absorbent sponge Sponge...

  • Page 27: Install Direction

    2.6 Install Direction Installation Instruction, Step 1 1. Fasten Component 3 onto the bottom of Component 6 using 2 outer hex trio screws M6*16; 2. Insert Component 1 into Component 3; then connect and fasten Component 1 onto Component 6 using two Components 2 and six outer hex trio screws M6*16; 3.
  • Page 28 Installation Instruction, Step 2 1. Unscrew 2 screws of Component 2; open Component 2 with the key for later use; 2. Connect and fasten Component 3 onto Component 1 using two M5*16 cross recessed round head trio screws; 3. Insert Component 4 (light box for gameplay description) into Component 1; then connect and fasten Component 4 onto Component 3 using two M5*16 cross recessed round head trio screws;...
  • Page 29 Installation Instruction, Step 3 1. Connect and fasten Component 1 (right frame) onto Component 2 using four M8*40 outer hex screws (with spring/flat washers); connect corresponding wire connector and air tube; 2. In same way, connect and fasten left frame onto Component 2; then connect corresponding wire connector and air tube.
  • Page 30 Installation Instruction, Step 4 1. Connect and fasten two Components 4 onto Component 5 using 4 cross recessed round head trio screws M5*16; 2. Screw two M8*20 outer hex trio screws holes on back side of Component 3 (do not tighten them); 3.
  • Page 31 Component 2 Component 3 Socket for Component 3 Component 1 1 : 5 Component 4 Component 5...
  • Page 32 Installation Instruction, Step 5 1. Firstly, connect corresponding wire connector; then connect and fasten Component 1 onto Component 5 using five M5*12 cross recessed truss head screws; 2. Firstly, connect corresponding wire connector; then connect and fasten Component 4 onto Component 5 using five M5*12 cross recessed truss head screws; 3.
  • Page 33 Installation Instruction, Step 6 1. Connect and fasten two Components 3 onto Component 4 using four M8*30 outer hex trio screws; 2. Connect and fasten Component 3 onto Component 1 using four M8*30 outer hex trio screws which go through Component 5 (pay attention to the orientation for attaching Component 5);...

  • Page 34: Warranty

    2.7 Warranty Scope Inquiry regarding product can be assisted for free. The warranty scope for consumables and durables may differ from product to product. Please contact our after-sales service center for detailed information. The right of final interpretation is reserved. Exclusive Damage caused by force majeure such as god will.

  • Page 35: Game Description

    3.2 Game introduction Storm Rider 2 is a motorcycle racing game which simulates the joy of real thrilling racing. It offers super cool sense of speed, and supports online competition for up to 4 players as well as separate championship for single player;...

  • Page 36: Test And Setting

    4.Test and Setting 4.1 Description of service panel 1.Test service box operation page [Test/Exit] Enter the main menu/Exit the test menu to return directly to the game screen [Back/Service] Return to the main menu under the submenu/enter service available points without adding a token counter [Optioncycle/Select] To select test items and change the contents of the options [Down] moves the cursor to the set item...

  • Page 37: Game Description

    4.2 Game Description Game Features a. Fun, exciting and realistic motorbike racing game b. Supports up to 4 players in a row c.4 special tracks d.4 motorbikes with different capabilities + 4 different rider characters e. 2 game modes. -Single Player - {CAMPAIGN} -Multiplayer - {CHALLENGER} (supports 4 players simultaneously) f.3 levels of difficulty: Beginner, Normal, Hard g.
  • Page 38 3 - CANTON TOWER 4 - VERZASCA 2.Racing Cars The game has 4 racing cars: 3.Difficulty The game has 3 levels of difficulty: Easy, Normal and Hard. 4.Game Modes - Single Player - {CAMPAIGN} - Multiplayer - {CHALLENGER} (supports 4 players at a time)

  • Page 39: Game Flow

    4.3 Game flow 4.3.1 Game front-end menu The game has two game modes: - Single Player - {CAMPAIGN} - Multiplayer - {CHALLENGER} (supports 4 players at once) The game is preset to - Multiplayer {CHALLENGER} mode. If the player wants to challenge the Single Player - {CAMPAIGN} mode, press and hold the touch screen (small screen) from the [Select Track] page to the [Waiting Lobby] page at the front of the game.
  • Page 40 c.Loading screen 1 Teaching tips will be displayed on the loading screen. d.Selecting a track The game has 4 tracks: 1 - BAIYUN MOUNTAIN 2 - WASTELAND 3 - CANTON TOWER 4 - VERZASCA 1 - BAIYUN MOUNTAIN 2 - WASTELAND 3 - CANTON TOWER 4 - VERZASCA...
  • Page 41 e.Selecting a race car The game has 4 racing cars: S-RAPTOR SIREN RAIOEN 20c THUNDER H8 Motorbike performance: speed, acceleration, control, nitrous acceleration Speed (maximum speed in general conditions) Acceleration (acceleration and speed to overcome a rough track) Control (aerated surfaces will give some advantage) Nitrous acceleration (nitrous acceleration force values) f.Taking photographs The interface will ask the player to look up at the screen to take an avatar photo.
  • Page 42 g.Track confirmation/waiting hall The Confirm Track page in Single Player {CAMPAIGN} mode, the Confirm Track is the track selected by the player. In Multiplayer {CHALLENGER} mode, connected players will enter the waiting lobby. If the maximum number of players connected to the game is not reached, during the countdown period, new players who are already connected to the machine can coin in and join the game together for a {CHALLENGER} game.
  • Page 43 h.Loading screen 2 In single player {CAMPAIGN} mode, the {CAMPAIGN} race is displayed on the loading screen. In multiplayer {CHALLENGER} mode, the loading screen will show the {CHALLENGER} race.

  • Page 44: Game Interface

    4.3.2 Game interface a.Start of the game The game will start as soon as it is loaded. b.HUD game interface During the race, race data will be displayed on the main screen and on the machine's touch screen (small screen).
  • Page 45 Main screen Touch screen (small screen) 1 Number of Laps 1 TIME 2 Attention:Turning ahead 2 Total time 3 Racing speedometer 3 Current lap time 4 Attention：Rear racing 4 Fastest Lap Time 5 Attention：Front racing 5 Map 6 Instant Leaderboard 6 SWITCH VIEW 7 Instant Leaderboard 8 Attention：Nitrogen acceleration...
  • Page 46 c.Finish the game The game ends when the player has completed all laps and crossed the finish line or when time is up. The screen will show the player's ranking. In Single Player {CAMPAIGN} mode. - Players ranked 1-3, will successfully advance to the next match, and the car will be upgraded.

  • Page 47: Game Back-End Menu

    4.2.3 马达测试 4.3.3 Game back-end menu a. Continue the tour -In Single Player {CAMPAIGN} mode, players ranked 4-20 are invited to drop coins and continue playing for the next round. -In multiplayer {CHALLENGER} mode, the player who is not the fastest will be invited to coin in and play the next round in a row.
  • Page 48 4.3.2 投币设定 c.Enter your name The interface will invite the player to enter their name using the machine's touch screen (small screen). d.Track record At the end of the game, the track record will be displayed.

  • Page 49: Usb Drive Update

    4.4 USB drive update USB game update steps. 1. Create a directory on the USB called [SRMT2Update] (e.g. U:\SRMT2Update\) and copy the new game update software to this directory. and copy the new game update software to this directory. 2. Turn off the host PC of STDRM RIDER 2. 3.

  • Page 50: Arcade Operator

    4.5 Arcade Operator 1. To perform the Arcade Operator, dial up the [Test] key on the control box inside the coin door of the machine to access the [Arcade Operator]. The main menu is shown below. 2. After entering a menu, dial [Down] to move the cursor to the menu you want to operate, and then dial [Select] up to confirm or enter a sub-menu.

  • Page 51: Game Settings

    4.5.1 Game Settings 1. Go to [Game Settings] and you can set the following items. Set items Set contents Game Time Short/Medium/Long Difficulty Normal/Difficult/Easy Short/Medium/Long Lobby Time Speed Unit KM Per Hour/Mlie Per Hour Bomus Round FirstRunnerUp/SecoundRunnerUp/Off/Winner Default First person On/Off Reset Ranking On/Off...

  • Page 52: Book Keeping Settings

    4.5.2 Book Keeping Settings 1. Go to [Book Keeping Settings] to view the game history of the machine. Set items Set contents Play Info Total Time On Total Coin In Total Credit In Total Credit Continues Total Service Credit Total Service Credit Continues Total Play Single Player Plays Single Player Continue...

  • Page 53: Credit Settings

    4.5.3 Credit Settings 1. Go to [Credit Settings] and you can set the following items. Set items Set contents Credit Count Service Credits Clear Credits Entry Type Coin/Card Swipe Credit Settings Free Play/ X Coins X Credit Continue Settings Same as Credit Settings/ X Coins X Credit Reset Settings Yes/No Back...

  • Page 54: Input Settings

    4.5.4 Input Settings Camera 1. Go to [Input Settings] and set the following items. Set items Set contents Steering (Display of the machine's current value) Steering Min 0-500 (Reference setting values) Steering Max 1200-1700 (Reference setting values) Steering Center 600-1100 (Reference setting values) Throttle (Display of the machine's current value) Throttle Min...

  • Page 55: Output Settings

    4.5.5 Output Settings Screen Test 1. Go to [Output Settings] and you can set the following items. Set items Set contents Master Volume 0- 2 Isle/Attract Volume 0- 2 Motion Normal/Strong/Off/Weak Off/perform Screen Test Screen Test Sound Test Off/Left/Right/Sub Motion Test Off/Front Left/Front Right Off/Brake/Boost/MotionStop/Drift(red, green, blue)/Wheel(red, green, blue)/ Light Test...

  • Page 56: Clock Settings

    4.5.6 Clock Settings 1. Enter [Clock Settings] to set the following items. Set items Set contents Year Year Month Month Date Date Hour Hour Minute Minute Second Second Apply Back Exit current menu Please note: Selecting the Apply setting will require a restart of the game.

  • Page 57: Network Settings

    4.5.7 Network Settings 1. Go to [Network Settings] and you can set the following items. Set items Set contents Connected/Stations/Connected [X] stations/ Network Status No other stations connected Machine IP (Show IP number) Group ID 1/2/3/4 /5/6/7/8 Cabinet ID 1/2/3/4 Other Machine IP (Show other connected machine IPs) Other Group ID...

  • Page 58: Language Settings

    4.5.8 Language Settings This item does not need to be set.

  • Page 59: Reset All Settings

    4.5.9 Reset All Settings On the [Reset All Settings] page, you can reset all settings to the original settings. If the settings are reset, all records in the arcade are cleared at the same time. All records in the arcade will be erased.

  • Page 60: Maintenance And Service

    5. Maintenance and Service 5.1 Maintenance and service Even though the machine works normally for a long time, the fault will occur. Therefore, please perform routine check and maintenance concerning the following to ensure a long-term use. External Inspection Stick “Warning” stickers correctly, keep it legible. Firmly tighten the bolt for each adjuster.

  • Page 61: Part Replacement

    5.2 Part Replacement 5.2.1 Replacement of woofers 1. Detach woofer grille; 2. Detach the screws that fasten woofers, and take out woofers; 3. Replace or repair woofers; 4. Reattach them in reverse order. Woofer Woofer grille...

  • Page 62: Replacement Of Light Bar Under Lcd

    5.2.2 Replacement of light bar under LCD 1. Detach plastic assembly under LCD; 2. Detach the screws that fasten light bar, and take out light bar under LCD; 3. Replace or repair light bar; 4. Reattach them in reverse order. Light bar Plastic assembly under LCD...

  • Page 63: Replacement Of Main Machine

    5.2.3 Replacement of main machine 1. Detach rear door; 2. Detach the screws that fasten main machine assembly, and take out main machine assembly; 3. Replace or repair main machine; 4. Reattach them in reverse order. Rear door Main machine assembly...

  • Page 64: Replacement Of Power Supply Box

    5.2.4 Replacement of power supply box 1. Detach rear door; 2. Detach the screws that fasten power supply box, and take out power supply box; 3. Replace or repair power supply box; 4. Reattach them in reverse order. Power supply box Rear door...

  • Page 65: Replacement Of Io Board

    5.2.5 Replacement of IO board 1. Detach rear door; 2. Detach the screws that fasten IO board assembly, and take out IO board assembly; 3. Replace or repair IO board; 4. Reattach them in reverse order. IO board assembly Rear door...

  • Page 66: Replacement Of Leakage Protection Switch

    5.2.6 Replacement of leakage protection switch 1. Detach the screws that fasten leakage protection switch assembly; 2. Then detach the screws of leakage protection switch; remove and replace leakage protection switch (pay attention to connection of wires); 3. Reattach them in reverse order. Leakage protection switch Leakage protection switch assembly...

  • Page 67: Replacement Of Token Acceptor

    5.2.7 Replacement of token acceptor 1. Detach the screws of access door, and open access door assembly with the key; 2. Then detach the fastener for token acceptor; remove and replace token acceptor (pay attention to connection of wires); 3. Reattach them in reverse order. Access door assembly Fastener for token acceptor Token acceptor...

  • Page 68: Replacement Of Air Compressor

    5.2.8 Replacement of air compressor 1. Detach the screws of access door, and open access door assembly with the key; 2. Detach the screws that fasten air compressor assembly; 3. Finally, detach the screws of air compressor; remove and replace air compressor (pay attention to connection of wires);...

  • Page 69: Replacement Of Relay

    5.2.9 Replacement of relay 1. Detach the screws of access door, and open access door assembly with the key; 2. Detach the screws that fasten relay assembly; 3. Finally, detach the screws of relay; remove and replace the relay (pay attention to connection of wires);...

  • Page 70: Routine Maintenance Of Air Compressor

    5.3 Routine Maintenance of Air Compressor 1.Purpose of Maintenance and Important Notes A.Proper maintenance and use can extend the service life of the air compressor and reduce malfunction. Daily maintenance and examination MUST be performed by professional technicians. B.Before the maintenance, power down the air compressor and exhaust the air pressure. Otherwise, it could be dangerous.
  • Page 71 Drain Valve Drainage Switch: Drainage Turn down Turn up Water Container er Container Water Container 3.Air Compressor Maintenance Checklist N N o. C C hecklist Item D D escription I I nterval Check the drain valve and see whether the Drain Valve Check water is drained normally.
  • Page 72 Drain Valve Check. The switch on the drain valve is a knob used for adjusting the venting volume. Rotate the switch clockwise to turn it down and counter-clockwise to turn it up. If there is water in the filter, it should be discharged immediately. Otherwise, the water will enter the movable parts and cause malfunction.
  • Page 73 Pressure Switch Check. The pressure switch can adjust the on/off state of the air compressor, and let the air compressor rest by adjusting the pressure in the air tank. Frequently be turned on and off for a long period of time, oxidation and fatigue will happen to the contact points and air spring of the pressure switch.

  • Page 74: Assembly

    6. Assembly 6.1 Assembly tree diagram SR2-0100000 SR2-0101000Assembling of floor Assembling of motorcycle body SR2-0102000Assembling of left decoration frame SR2-0103000Assembling of steering seat SR2-0205000A Assembling of camera SR2-0104000Assembling of right decoration frame SR2-0105000Assembling of button for fuel tank cap SR2-0106000Assembling of right decoration on bike body SR2-0110000AAssembling of retaining plate for tail lamp SR2-0107000Assembling of left decoration on bike body SR2-0108000Assembling of air jet...

  • Page 75: General Assembling（Sr2-0000000

    6.2 General assembling（SR2-0000000）...
  • Page 76 Hexagon triple combination 8*20*16*1.5(Black) external hex socket screw M8*40（Black） cross the big flat head screw M4*8（Black） hex socket cap screw s M4*8（Chrome） Hexagon triple combination 6*16*12*1.2(Black) cross recessed fillister head M5*16（Black） three-combination screw spring w asher M8（Black） plain w ashers φ8*φ22*2.0（Black）...

  • Page 77: Assembling Of Motorcycle Body（Sr2-0100000

    6.3 Assembling of motorcycle body（SR2-0100000）...
  • Page 78 cross the big flat head screw M4*12（Black） plain w ashers Φ6*Φ20*2.0（Chrome） hex socket cap screw s M4*12（Black） cross the big flat head screw M4*8（Black） Hexagon triple combination 6*16*12*1.2(Black) hex head cap screw M4（Colour） cross the big flat head screw M4*45（Chrome） cross recessed fillister head M5*12（Black）...

  • Page 79: Assembling Of Floor（Sr2-0101000

    6.3.1 Assembling of floor（SR2-0101000）...
  • Page 80 SR2-0101A08 Right base light bar fixing sheet metal SPCC-1.2T 1.1.WA46-1120 SR2-0101A07 Left base light bar fixing sheet metal SPCC-1.2T 1.1.WA46-1110 hex head cap screw M4（Colour） cross recessed countersunk M4*16（Chrome） head screw s cross recessed fillister head M5*25（Chrome） three-combination screw Hexagon triple combination 8*20*16*1.5(Black) Hexagon triple combination 6*16*12*1.2(Black)

  • Page 81: Assembling Of Left Decoration Frame（Sr2-0102000

    6.3.2 Assembling of left decoration frame（SR2-0102000） hex head cap screw M4（Colour） DC12V RGB60 5050 strip light 1.4.ZM9E1063 L=1700mm SR2-0102D04 Back plate acrylic 2 PMMA-5.0T 1.7.WA46-0070 SR2-0102D03 Back plate acrylic 1 PMMA-5.0T 1.7.WA46-0060 SR2-0102D02 Backplane left Mirror PMMA-1.0T 1.7.WA46-0050 SR2-P0009 Left body trim panel PMMA-5.0T 1.7.WA46-0160 SR2-0102A01...

  • Page 82: Assembling Of Steering Seat（Sr2-0103000

    6.3.3 Assembling of steering seat（SR2-0103000） headless hex socket screw M4*8（Black） plain washers Φ4*Φ16*1.0（Black） cross recessed fillister head M4*12（Black） three-combination screw spring washer M12（Black） plain washers φ12*φ23*2.0（Black） external hex socket screw M12*40（Black） Hexagon triple combination 8*20*16*1.5(Black) cross recessed fillister head M5*16（Black） three-combination screw Circlip for shaft - type A Φ20...

  • Page 83: Assembling Of Right Decoration Frame（Sr2-0104000

    6.3.4 Assembling of right decoration frame（SR2-0104000） hex head cap screw M4（Colour） DC12V RGB60 5050 strip light 1.4.ZM9E1063 L=1700mm SR2-0102D04 Back plate acrylic 2 PMMA-5.0T 1.7.WA46-0070 SR2-0102D03 Back plate acrylic 1 PMMA-5.0T 1.7.WA46-0060 SR2-0104D02 Backplane right Mirror PMMA 1.7.WA46-0080 SR2-P0010 Right body trim panel PMMA-5.0T 1.7.WA46-0170 SR2-0104A01...

  • Page 84: Assembling Of Button For Fuel Tank Cap（Sr2-0105000

    6.3.5 Assembling of button for fuel tank cap（SR2-0105000） 12V white three lamps led lamp for button 1.4.AJA01040 (T103W-12V-SMD) micro switch D3V-01-1C23 1.4.SW103011 Round illuminated button (with Ф44 white BLC-TN-BK-B- 1.4.AJ104011# lamp holder) SR2-0105C01 fuel tank cap PETA 1.8.WA46-0060 Draw No. Name Material/Spec.

  • Page 85: Assembling Of Right Decoration On Bike Body（Sr2-0106000

    6.3.6 Assembling of right decoration on bike body（SR2-0106000） hex head cap screw M4（Colour） hex socket cap screw s M4*16（Chrome） SR2-P0027 Body trim cover PMMA-3.0T 1.7.WA46-0340 Winter squash w hite SR2-0106D01 Side light guide plate PMMA- 1.7.WA46-0090 12.0T DC12V RGB60 5050 strip light 1.4.ZM 003-03860 L=450mm W=6mm SR2-0106C01...

  • Page 86: Assembling Of Left Decoration On Bike Body（Sr2-0107000

    6.3.7 Assembling of left decoration on bike body（SR2-0107000） hex head cap screw M4（Colour） hex socket cap screw s M4*16（Chrome） SR2-P0027 Body trim cover PMMA-3.0T 1.7.WA46-0340 Winter squash w hite SR2-0106D01 Side light guide plate 1.7.WA46-0090 PMMA- 12.0T DC12V RGB60 L=450mm 5050 strip light 1.4.ZM 003-03860 W=6mm...

  • Page 87: Assembling Of Air Jet（Sr2-0108000

    6.3.8 Assembling of air jet（SR2-0108000） cross recessed fillister head M4*8（Chrome） three-combination screw hose nippler BPC602 1.4.JG002-00450 screw thread direct connector APC10-02 1.4.JG082030 Tw o port tw o position fluid 2V025-08-F 1.4.QD001-00170 control valve SR2-0108A01 Air valve fixing plate SPCC-1.2T 1.1.WA46-0420 Draw No.

  • Page 88: Assembling Of Cardan Shaft Seat（Sr2-0109000

    6.3.9 Assembling of cardan shaft seat（SR2-0109000） spring washer M12（Black） plain washers φ12*φ23*2.0（Black） external hex socket screw M12*40（Black） circlips for shaft GB/T 894.1-1986 25 1.6.DQ336010 bearing with pedestal UCP205 1.4.ZCZ00040 SR2-0109A03 Universal panel 1.1.WA46-0450 SR2-0109A02 Cardan shaft base plate 1.1.WA46-0440 SR2-0109A01 Spider frame 1.1.WA46-0430 Draw No.

  • Page 89: Assembling Of Bike Body（Sr2-0110000

    6.3.10 Assembling of bike body（SR2-0110000）...
  • Page 90 SK6812L=900mm 5050 soft strip lamp (white 950mm*20mm*15m m 1.4.ZM003-03880 latex) （with five clasps） hex socket cap screws M4*8（Chrome） Hexagon triple combination 8*16*16*1.5(Black) cross the big flat head self- M3*8（Chrome） drilling screw cross recessed fillister head M5*12（Black） three-combination screw hex head cap screw M5（Colour）...

  • Page 91: Assembling Of Retaining Plate For Tail Lamp（Sr2-0110000A

    6.3.10.1 Assembling of retaining plate for tail lamp（SR2-0110000A） hex head cap screw M3（Colour） DC12V white light 60 5050 strip light 1.4.ZM9E0026 L=300mm DC12Vwhite light 60 5050 strip light 1.4.ZM9E0016 L=200mm model name box led lights with ME-0508D03 PVC-1.0T 1.7.IG22B00510 tablet SR2-0110A02 Rear trim fixing iron SPCC-1.2T...

  • Page 92: Assembling Of Pneumatic Valve（Sr2-0111000

    6.3.11 Assembling of pneumatic valve（SR2-0111000） cross the big flat head screw M4*40（Black） copper silencer BSL03 1.4.XYQ001-00060 Plug BZ03-S 1.4.JG002-00490 Plug BZ02-S 1.4.JG002-00480 Solenoid valve (five ports and 4V330C-08F 1.4.QD001-00160 three positions) screw thread direct connector PC1003-S 1.4.JG002-00510 pneumatic control valve base 300M-2F 1.4.QD001-00150 Connector...

  • Page 93: Assembling Of Airbag（Sr2-0112000

    6.3.12 Assembling of airbag（SR2-0112000） Hexagon triple combination 8*16*16*1.5(Black) l type screw thread connector APL10-02 1.4.JG072110 air bag 1B5002 1.4.QL000020 SRH-0202A01 air bag fixed iron SPCC-3.0T 1.1.WA16C00390 Draw No. Name Material/Spec. Qty. Product Code...

  • Page 94: Assembling Of Safety Tail Seat（Sr2-0113000

    6.3.13 Assembling of safety tail seat（SR2-0113000） anchor bolt (rubber buttom) M16*100(Colour) 1.6.LSV99014 hexagon nut M16（Colour） 1.6.LM116013 SR2-0113A01 Safety base 1.1.WA46-0490 Draw No. Name Material/Spec. Qty. Product Code...

  • Page 95: Assembling Of Right Frame（Sr2-0200000

    6.4 Assembling of right frame（SR2-0200000）...
  • Page 96 hex socket cap screw s M6*20（Chrome） hex head cap screw M4（Colour） cross recessed fillister head M6*35（Chrome） three-combination screw cross the big flat head screw M4*30（Black） hex socket cap screw s M4*12（Black） cross the big flat head screw M4*20（Black） plain w ashers φ8*φ22*2.0（Black）...

  • Page 97: Assembling Of Right Bottom Frame For Lcd（Sr2-0201000

    6.4.1 Assembling of right bottom frame for LCD（SR2-0201000） cross the big flat head self- M4*12（Black） drilling screw SR2-0201A03 Connection reinforcement iron SPCC-1.5T Hexagon triple combination 8*20*16*1.5(Black) Hexagon triple combination 8*30*16*1.5(Black) cross recessed fillister head M6*35（Chrome） three-combination screw 2.5 inch low center of casters 1.4.JL302520 gravity type...

  • Page 98: Assembling Of Lower Right Decoration Frame（Sr2-0202000

    6.4.2 Assembling of lower right decoration frame（SR2-0202000） hex head cap screw M4（Colour） SR2-0201D03 Side lower plate 3 PMMA-5.0T 1.7.WA46-0110 5050 strip light DC12V RGB60 L=550mm 1.4.ZM9E0506 SR2-0201D02 Side lower plate 2 Mirror PMMA-1.0T 1.7.WA46-0100 Lower right trim panel of SR2-P0019 PMMA-5.0T 1.7.WA46-0260 console...

  • Page 99: Assembling Of Lower Left Decoration Frame（Sr2-0203000

    6.4.3 Assembling of lower left decoration frame（SR2-0203000） hex head cap screw M4（Colour） SR2-0201D02 Side lower plate 2 Mirror PMMA-1.0T 1.7.WA46-0100 SR2-0201D03 Side lower plate 3 PMMA-5.0T 1.7.WA46-0110 SR2-P0018 Lower left trim panel of console PMMA-5.0T 1.7.WA46-0250 5050 strip light DC12V RGB60 L=550mm 1.4.ZM9E0506 SR2-0203A01 Lower left trim frame...

  • Page 100: Assembling Of Lcd（Sr2-0204000

    6.4.4 Assembling of LCD（SR2-0204000） hex socket cap screw s M5*12（Black） Hexagon triple combination 6*16*12*1.2(Black) SR2-0204A02 pressure iron for glass SPCC-1.2T 1.1.WA46-0600 SR2-0204C01 lcd glass Glass-5.0T 1.8.WA46-0110 Liquid crystal display 49 inch 1.4.XS404910 SR2-0204A01 screed frame 1.1.WA46-0590 Draw No. Name Material/Spec. Qty.

  • Page 101: Assembling Of Right Light Box（Sr2-0205000

    6.4.5 Assembling of right light box（SR2-0205000） cross the big flat head screw M5*20（Black） cross the big flat head screw M4*12（Chrome） 5050 strip light DC12V RGB60 L=550mm 1.4.ZM9E0506 5050 strip light DC12V RGB60 L=750mm 1.4.ZM9E1490 SR2-P0021 Top right outer cover plate PMMA-5.0T 1.7.WA46-0280 SR2-0205000A...

  • Page 102: Assembling Of Camera（Sr2-0205000A

    6.4.5.1 Assembling of camera（SR2-0205000A） cross recessed cheese head M2*4（Chrome） screws SR2-0205A02 Camera frame SPCC-1.2T 1.1.WA46-0620 ELP- USBFHD01M-L36 camera 1.4.SX001-00160 (3.6MM lens, 1m cable） Draw No. Name Material/Spec. Qty. Product Code...

  • Page 103: Assembling Of Decoration Under Lcd（Sr2-0206000

    6.4.6 Assembling of decoration under LCD（SR2-0206000） hex head cap screw M4（Colour） SR2-P0024 control panel acryl PMMA-5.0T 1.7.WA46-0310 hex socket cap screws M4*12（Black） SR2-0206A01 Tweeter network screen-1.2T 1.1.WA46-0630 SR2-0206C01 LCD lower decoration PETA 1.8.WA46-0120 Draw No. Name Material/Spec. Qty. Product Code...

  • Page 104: Assembling Of Woofers（Sr2-0207000

    6.4.7 Assembling of woofers（SR2-0207000） cross the big flat head self- M4*12（Black） drilling screw cross the big flat head screw M4*12（Chrome） SR2-0207A01 horn fixed plate SPCC-1.2T 1.1.WA46-0640 speaker 4 inch 4Ω 40W 1.4.LB002-00310 SR2-0207B01 speaker boxes MDF-9.0T 1.2.WA46-0020 Draw No. Name Material/Spec.

  • Page 105: Assembling Of Main Machine（Sr2-0208000

    6.4.8 Assembling of main machine（SR2-0208000） cross recessed fillister head M5*12（Chrome） three-combination screw cross recessed fillister head M6*16（Black） three-combination screw cross recessed fillister head M4*16（Black） three-combination screw lanhe shaped foot shock 1.8.AA000250 IPC-WL001-3470 1.4.ZJ010035 ACG2-0108B02 mother board MDF-15.0T 1.2.FM01A00030 SR2-0208B01 main pc set panel MDF-12.0T 1.2.WA46-0030 Draw No.

  • Page 106: Assembling Of Door For Lcd（Sr2-0209000

    6.4.9 Assembling of door for LCD（SR2-0209000） locking plate Three hole straight film 1.4.SJ120018 Lingzhi door lock (28mm) 1.4.SJ120012 SR2-0209B01 liquid crystal door MDF-15.0T 1.2.WA46-0040 Draw No. Name Material/Spec. Qty. Product Code...

  • Page 107: Assembling Of Power Amplification Board,Right（Sr2-0210000

    6.4.10 Assembling of power amplification board, right（SR2-0210000） cross recessed fillister head M3*12（Chrome） three-combination screw countersunk head tapping M3*10（Chrome） screws l-holder M3mm 1.9.LX103010 MOTION Board B0-080E 1.3.WA46-0020# amplifier AMP_21+51 1.4.BK001-04260 SR2-0210B01 Fixed plate MDF-12.0T 1.2.WA46-0050 Draw No. Name Material/Spec. Qty. Product Code...

  • Page 108: Assembling Of Fan 1（Sr2-0211000

    6.4.11 Assembling of fan 1（SR2-0211000） cross the big flat head screw M3*12（Black） fan cover 120*120 1.4.FS300020 VBP-01-14-01 fan bracket SECC T-1.0 1.1.IG13A00280 DC fan GD 12038H24B-A01 1.4.FS200090 Draw No. Name Material/Spec. Qty. Product Code...

  • Page 109: Assembling Of Right Light Frame（Sr2-0212000

    6.4.12 Assembling of right light frame（SR2-0212000） DC12V RGB60 5050 strip light 1.4.ZM9E1074 L=1200mm SR2-0200A02 Right light frame 1.1.WA46-0510 Draw No. Name Material/Spec. Qty. Product Code...

  • Page 110: Assembling Of Left Frame（Sr2-0300000

    6.5 Assembling of left frame（SR2-0300000）...
  • Page 111 cross the big flat head self- drilling M3*8（Chrome） screw pow er supply LRS-75-5 1.4.DY170090 countersunk head tapping M3*10（Chrome） screw s hex head cap screw M4（Colour） Hexagon triple combination 8*20*16*1.5(Black) cross the big flat head screw M4*8（Black） plain w ashers φ8*φ22*2.0（Black） spring w asher M8（Black）...

  • Page 112: Assembling Of Left Bottom Frame For Lcd（Sr2-0301000

    6.5.1 Assembling of left bottom frame for LCD（SR2-0301000） cross the big flat head self- M4*12（Black） drilling screw SR2-0201A03 Connection reinforcement iron SPCC-1.5T cross recessed fillister head M6*35（Chrome） three-combination screw Hexagon triple combination 8*20*16*1.5(Black) Hexagon triple combination 8*30*16*1.5(Black) 2.5 "heavy movable caster fixed WAH-0000A05 SPCC-2.0T 1.1.AA09000060...

  • Page 113: Assembling Of Left Light Box（Sr2-0302000

    6.5.2 Assembling of left light box（SR2-0302000） cross the big flat head screw M4*12（Chrome） cross the big flat head screw M5*20（Black） 5050 strip light DC12V RGB60 L=550mm 1.4.ZM9E0506 5050 strip light DC12V RGB60 L=750mm 1.4.ZM9E1490 SR2-P0022 Top left outer cover plate PMMA-5.0T 1.7.WA46-0290 SR2-P0016...

  • Page 114: Assembling Of Power Supply Box A（Sr2-0303000

    6.5.3 Assembling of power supply box A（SR2-0303000） cross the big flat head screw M4*8（Black） power supply LRS-450-24 1.4.DY001-00670 SR2-0303A01 Power box fixed iron SECC-1.2T 1.1.WA46-0670 Draw No. Name Material/Spec. Qty. Product Code...

  • Page 115: Assembling Of Power Supply Box B（R2-0304000

    6.5.4 Assembling of power supply box B（R2-0304000） cross the big flat head screw M4*8（Black） power supply LRS-600-12 1.4.DY001-00630 SR2-0303A01 Power box fixed iron SECC-1.2T 1.1.WA46-0670 Draw No. Name Material/Spec. Qty. Product Code...

  • Page 116: Assembling Of Power Amplification Board, Left（Sr2-0305000

    6.5.5 Assembling of power amplification board, left（SR2-0305000） countersunk head tapping M3*10（Chrome） screws cross recessed fillister head M3*12（Chrome） three-combination screw l-holder M3mm 1.9.LX103010 MOTION Board B0-080E 1.3.WA46-0020# LIGHTING Board B2-086C 1.3.WA46-0030# amplifier AMP_21+51 1.4.BK001-04260 I/O Board B0-094C + B2-117C 1.3.WA46-0010# SR2-0210B01 Fixed plate MDF-12.0T 1.2.WA46-0050...

  • Page 117: Assembling Of Ac Power Supply Box（Sr2-0306000

    6.5.6 Assembling of AC power supply box（SR2-0306000） hex head cap screw M4（Colour） cross recessed fillister head M4*8（Chrome） three-combination screw cross recessed fillister head M3*8（Chrome） three-combination screw leakage protection sw itch HD30-2PAC 250V/15A 1.4.SW804011 (double row ) cross recessed countersunk M3*10（Chrome） head screw s filter YB11A2-15A-Q...

  • Page 118: Assembling Of Left Light Frame（Sr2-0307000

    6.5.7 Assembling of left light frame（SR2-0307000） DC12V RGB60 5050 strip light 1.4.ZM9E1074 L=1200mm SR2-0300A01 Left light frame 1.1.WA46-0650 Draw No. Name Material/Spec. Qty. Product Code...

  • Page 119: Assembling Of Light Control Board（Sr2-0308000

    6.5.8 Assembling of light control board（SR2-0308000） cross recessed fillister head M3*12（Chrome） three-combination screw l-holder M3mm 1.9.LX103010 SK6812 lamp control board 1.4.BK001-04270 Draw No. Name Material/Spec. Qty. Product Code...

  • Page 120: Assembling Of Console（Sr2-0400000

    6.6 Assembling of console（SR2-0400000） hex socket cap screw s M4*35（Black） cross the big flat head screw M4*12（Black） cross the big flat head screw M4*20（Black） hex socket cap screw s M5*12（Chrome） hex head cap screw M5（Colour） Hexagon triple combination 8*16*16*1.5(Black) cross the big flat head screw M4*8（Black）...

  • Page 121: Assembling Of Console Frame（Sr2-0401000

    6.6.1 Assembling of console frame（SR2-0401000） Opening retaining ring (E-buckle) M4(Black) cross the big flat head screw M4*8（Black） SR2-0401A09 Control valve repair door SPCC-1.2T 1.1.WA46-1100 cross the big flat head screw M3*12（Chrome） hexagon nut M12（Black） hex head cap screw M4（Colour） Hexagon triple combination 6*16*12*1.2(Black) hexagon nut M16（Colour）...

  • Page 122: Assembling Of Token Acceptor（Sr2-0401000A

    6.6.1.1 Assembling of token acceptor（SR2-0401000A） coin slot fixed button 1.8.AA000050 hex head cap screw M3（Colour） cross recessed fillister head M3*8（Chrome） three-combination screw plain washers Φ4*Φ10*1.0（Chrome） cross the big flat head screw M4*8（Black） SR2-0401A02 Coin holder plate SECC-1.5T 1.1.WA46-0710 WSJ-0109A10 Coin returning pressing plate Mirror SUS430-1.2T 1.1.RA07A00340 WSJ-0109A09...

  • Page 123: Assembling Of Air Compressor（Sr2-0402000

    6.6.2 Assembling of air compressor（SR2-0402000） Self-Locking Nuts M8（Galvanization） Hexagon triple combination 8*16*16*1.5(Black) cross recessed fillister head M6*12（Black） three-combination screw cross recessed fillister head M5*16（Black） three-combination screw Hexagon triple combination 6*16*12*1.2(Black) SRH-0108A02 air compressor fixed iron SPCC-2.5T 1.1.WA16C00230 HXD-0103A03 air compressor pressure iron SPCC-1.5T 1.1.IG19G00160 air compressor...

  • Page 124: Assembling Of Ac Power Supply Box For Console（Sr2-0403000

    6.6.3 Assembling of AC power supply box for console（SR2-0403000） cross recessed fillister head M4*8（Chrome） three-combination screw cross recessed fillister head M3*8（Chrome） three-combination screw hex head cap screw M4（Colour） cross recessed countersunk M3*10（Chrome） head screws leakage protection switch HD30-2PAC250V/15A 1.4.SW804011 (double row) filter YB11A2-15A-Q 1.4.LB100080...

  • Page 125: Assembling Of Door Of Console（Sr2-0404000

    6.6.4 Assembling of door of console（SR2-0404000） cross the big flat head screw M4*8（Black） hex head cap screw M4（Colour） SR2-0404A03 refund mechanism 1.1.WA46-0820 cross recessed fillister head M4*12（Black） three-combination screw SR2-0404A04 Lock plate 2 SPCC-3.0T 1.1.WA46-0830 ACG3-0404A03 Lock plate 1 SPCC-2.0T 1.1.FM02A00440 Lingzhi door lock (21.5mm) 1810S...

  • Page 126: Assembling Of Water Receiver（Sr2-0405000

    6.6.5 Assembling of water receiver（SR2-0405000） SR2-0405E01 Water absorbent sponge Sponge 1.9.HM002-00060 SR2-0405A02 flume 1.1.WA46-0850 SR2-0405A01 flume fixed plate 1.1.WA46-0840 Draw No. Name Material/Spec. Qty. Product Code...

  • Page 127: Assembling Of Cashbox（Sr2-0406000

    6.6.6 Assembling of cashbox（SR2-0406000） locking plate Two hole straight film 1.4.SJ120019 Lingzhi door lock 1.4.SJ120014 (miscellaneous) 21.5mm SR2-0406A01 coin box 1.1.WA46-0860 Draw No. Name Material/Spec. Qty. Product Code...

  • Page 128: Assembling Of Service Box（Sr2-0407000

    6.6.7 Assembling of service box（SR2-0407000） cross the big flat head screw M4*8（Black） hex head cap screw M4（Colour） cross recessed fillister head M3*8（Chrome） three-combination screw power switch 4PIN 1.4.KG008-00040 electronic double show counter DC5-24V 7 G037 1.4.JS100040 (reset） toggle switches 3P KNX123D 1.4.SW503010 SR2-0407A03 Code meter fixing iron...

  • Page 129: Assembling Of Keypad（Sr2-0408000

    6.6.8 Assembling of keypad（SR2-0408000） locking plate 90 degree locking tab 1.4.SJ120016 Lingzhi door lock (21.5mm) 1810S 1.4.SJ120011 SR2-0408A01 Console cover SPCC-1.2T 1.1.WA46-0900 Draw No. Name Material/Spec. Qty. Product Code...

  • Page 130: Assembling Of Rear Door Of Console（Sr2-0409000

    6.6.9 Assembling of rear door of console（SR2-0409000） locking plate 90 degree locking tab 1.4.SJ120016 Lingzhi door lock (28mm) 1.4.SJ120012 SR2-0409A01 console back door 1.1.WA46-0910 Draw No. Name Material/Spec. Qty. Product Code...

  • Page 131: Assembling Of Relay（Sr2-0410000

    6.6.10 Assembling of relay（SR2-0410000） cross the big flat head screw M4*8（Black） cross the big flat head screw M4*12（Chrome） cross the big flat head self- M3*8（Chrome） drilling screw Single-phase solid state relay KSI380D40R-L 1.4.DC200150 Solid state relay special KHS-1A 1.4.DC200140 radiator Exposed a multi-purpose Rated 20A/250V 1.4.IC220020...

  • Page 132: Assembling Of Filter（Sr2-0411000

    6.6.11 Assembling of filter（SR2-0411000） cross recessed fillister head M4*12（Black） three-combination screw l type screw thread connector APL10-02 1.4.JG072110 Clean Air Conponent GF200-08 1.4.LB200020 SRH-0113A01 filter fixed iron SPCC-1.5T 1.1.WA16C00280 Draw No. Name Material/Spec. Qty. Product Code...

  • Page 133: Assembling Of Fluid Control Valve（Sr2-0412000

    6.6.12 Assembling of fluid control valve（SR2-0412000） cross recessed fillister head M5*12（Black） three-combination screw one-w ay throttle valve - pipe ASL10-04B 1.4.JG09A020 connector l type screw thread connector APL10-04 1.4.JG072100 fluids control valve 2KW050-15-F 1.4.JG09A040 tw o in-exit electromagnetic SRH-0114A01 SPCC-1.5T 1.1.WA16C00290 valve fixed iron Draw No.

  • Page 134: Assembling Of Fan 2（Sr2-0413000

    6.6.13 Assembling of fan 2（SR2-0413000） cross the big flat head screw M3*12（Black） fan cover 120*120 1.4.FS300020 VBP-01-14-01 fan bracket SECC T-1.0 1.1.IG13A00280 DC fan GD 12038H24B-A01 1.4.FS200090 Draw No. Name Material/Spec. Qty. Product Code...

  • Page 135: Assembling Of Logo Frame （Sr2-0500000

    6.7 Assembling of LOGO frame （SR2-0500000） cross the big flat head screw M4*25（Black） cross recessed fillister head M5*16（Black） three-combination screw DC12V Red light 60 5050 strip light L=2950mm 1.4.ZM 003-03840 Wire length 400mm SR2-STRIPL2- 5050 strip light 1.4.ZM 003-03890 V1.0 SR2-0500A02 LOGO low er plate 1.1.WA46-0930...

  • Page 136: Assembling Of Motorcycle Head（Sr2-0600000

    6.8 Assembling of motorcycle head（SR2-0600000） Cap nuts M6（Chrome） Hexagon triple combination 6*16*12*1.2(Black) hex socket cap screw s M4*16（Chrome） cross recessed fillister head M5*16（Black） three-combination screw hex socket cap screw s M4*8（Chrome） cross recessed fillister head M4*12（Black） three-combination screw SR2-0604000 Assembling of small LCD Assembling of emergency SR2-0603000 button...

  • Page 137: Assembling Of Bike Handles（Sr2-0601000

    6.8.1 Assembling of bike handles（SR2-0601000） 1 : 2...
  • Page 138 Φ8*Φ14*1.5(Stainless plain w ashers steel ） cross recessed fillister head M3*16（Chrome） three-combination screw plain w ashers Φ6*Φ20*2.0（Black） socket head cap screw s M6*70（Black） headless hex socket screw M4*8（Black） cross recessed fillister head M4*12（Black） three-combination screw cross recessed fillister head M3*8（Chrome） three-combination screw Self-Locking Nuts M5（Galvanization）...

  • Page 139: Assembling Of Handle For Acceleration Button（Sr2-0601000A

    6.8.1.1 Assembling of handle for acceleration button（SR2-0601000A） cross the big flat head screw M3*12（Black） cross recessed countersunk M3*10（Chrome） head screws Motorcycle handle HM01L left 1.8.BS001-0010 SR2-0601C05 Left acceleration cover 1.8.WA46-0170 SR2-0601A16 Accelerating spring 65Mn 1.1.WA46-1020 SR2-0601C06 Accelerator key 1.8.WA46-0180 LED Beads 1.4.IC002-00010 SR2-0601C04 Right acceleration cover...

  • Page 140: Assembling Of Blower（Sr2-0602000

    6.8.2 Assembling of blower（SR2-0602000） hose nippler BPC6M5 1.4.JG002-00460 cross the big flat head screw M4*45（Chrome） fan cover 80*80 1.4.FS300040 blower KD1297PNB1 1.4.FS1A0030 SR2-0602A01 Air duct 1.1.WA46-1040 Draw No. Name Material/Spec. Qty. Product Code...

  • Page 141: Assembling Of Emergency Button（Sr2-0603000

    6.8.3 Assembling of emergency button（SR2-0603000） hex socket cap screws M4*8（Chrome） micro switch D3V-01-1C23 1.4.SW103011 12V White 3-Light led lamp for button 1.4.AJA01040 (T103W- 12V-SMD) Round illuminated button (with BLC-TNWA-BK-A-CR 1.4.AJ001-00800 lamp holder) SR2-P0020E Handle panel PMMA-5.0T 1.7.WA46-0270-EN SR2-P0017E Stop keypad PMMA-8.0T 1.7.WA46-0240-EN SR2-0603A01...
  • Page 142 6.8.4 Assembling of small LCD（SR2-0604000） hex socket cap screws M4*8（Black） cross recessed fillister head M4*8（Chrome） three-combination screw 10.4" 4:3 with capacitive Liquid crystal display 1.4.XS002-10030 touch SR2-0604A04 Touch screen back cover 1.1.WA46-1080 SR2-0604A02 Touch screen board SPCC-1.0T 1.1.WA46-1070 SR2-0604A01 Touch screen frame SPCC-1.0T 1.1.WA46-1060 Draw No.
  • Page 143 6.9 Assembling of door of supporting seat（SR2-0700000） locking plate 90 degree locking tab 1.4.SJ120016 Lingzhi door lock (28mm) 1.4.SJ120012 SR2-0700A01 Lower door of support base SPCC-1.2T 1.1.WA46-1090 Draw No. Name Material/Spec. Qty. Product Code...
  • Page 144 6.10 Assembling of theme light box（SR2-0800000） hex socket cap screws M5*12（Chrome） DC12V White light60 5050 strip light 1.4.ZM9E0704 L=1500mm DC12V White light 60 5050 strip light 1.4.ZM9E0077 L=1300mm SR2-P0008E light box theme acryl PMMA-5.0T 1.7.WA46-0150-EN SR2-0000A01 Relay board 1.1.WA46-0010 Draw No. Name Material/Spec.
  • Page 145 6.11 Assembling of light box for gameplay description（SR2-0900000） DC12V White light60 5050 strip light 1.4.ZM9E1081 L=650mm 5050 soft strip light string SR2-STRIPL1-V1.0 1.4.ZM003-03820 SR2-0000A02 Description Playbox SPCC-1.0T 1.1.WA46-0020 Draw No. Name Material/Spec. Qty. Product Code...
  • Page 146 7. Printing Pattern...
  • Page 148 8. Wiring Diagram...
  • Page 149 This diagram shows: GN/YL AWG16 OTHER COLOR AWG18 AWGXX AWGXX WIDE LINE: SR2-L0043 USB_MiniB MOTION Board XHP-11 WOOFER NARROW LINE: ALL COLOR AWG22 AWGXX AWGXX TO-PC VHR-12N 8Inch 8Ω 120W TEST/EXIT B0-080E AMP_21+51 The wiring diagram for reference only, change without prior notice YLP-02V YLR-02V SERVICE...
  • Page 150 This diagram shows: YLP-01V GN/YL AWG16 OTHER COLOR AWG18 AWGXX AWGXX WIDE LINE: WT/GN YLP-04V （Spare） NARROW LINE: ALL COLOR AWG22 AWGXX AWGXX SR2-L0051 WT/GN VHR-3N SR2-L0082 The wiring diagram for reference only, change without prior notice C84 5559-06P （Spare） XADRP-18V CN5 AWG20 YLR-01VF...
  • Page 151 This diagram shows: GN/YL AWG16 OTHER COLOR AWG18 AWGXX AWGXX WIDE LINE: 5050 Strip Light WT/GN NARROW LINE: ALL COLOR AWG22 AWGXX AWGXX WT/RD （2P） WT/BU The wiring diagram for reference only, change without prior notice C5 5557-14R DC12V RGB 60 L=300mm W=6mm SMP-04V SMR-04V ...
  • Page 152 This diagram shows: GN/YL AWG16 OTHER COLOR AWG18 AWGXX AWGXX WIDE LINE: SR2-L0043 XHP-11 WOOFER PCB Assy MOTION Board NARROW LINE: ALL COLOR AWG22 AWGXX AWGXX C65 YLR-06V VHR-12N 8Inch 8Ω 120W SR2-L0067 AMP_21+51 TEST/EXIT The wiring diagram for reference only, change without prior notice B0-080E YLP-02V YLR-02V...
  • Page 153 This diagram shows: GN/YL AWG16 OTHER COLOR AWG18 AWGXX AWGXX WIDE LINE: SR2-L0062 USB-A Male U18（U20） USB-B U21（U22） NARROW LINE: ALL COLOR AWG22 AWGXX AWGXX SR2-L0109 10.4Inch Touch Panel BLOWER 1/6 B1 4 To-PC The wiring diagram for reference only, change without prior notice 4/6 B1 g (Capacitive Screen) KD1297PNB1...
  • Page 154 This diagram shows: GN/YL AWG16 OTHER COLOR AWG18 AWGXX AWGXX WIDE LINE: NARROW LINE: ALL COLOR AWG22 AWGXX AWGXX The wiring diagram for reference only, change without prior notice   5050 Strip Light SMR-02V SMP-02V DC12V WT 60 L=300mm SR2-L0037 SMR-02V 5050 Strip Light...
  • Page 156 SR2-P0044E...

Table of Contents

Save PDF
