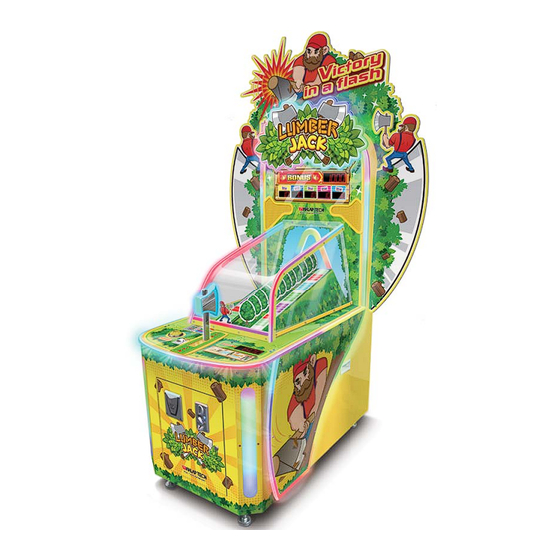

WAHLAP TECH LUMBER JACK Owner's Manual
  1. Manuals
  2. Brands
  3. WAHLAP TECH Manuals
  4. Arcade Game Machines
  5. LUMBER JACK
  6. Owner's manual

WAHLAP TECH LUMBER JACK Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Ver.2.00
Ver.2.00
For safety reasons, please read the manual first before plugging in machine.
For safety reasons, please read the manual first before plugging in machine.
Please keep this manual properly for convenient reference as needed.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LUMBER JACK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WAHLAP TECH LUMBER JACK

Summary of Contents for WAHLAP TECH LUMBER JACK

  • Page 1 Ver.2.00 Ver.2.00 For safety reasons, please read the manual first before plugging in machine. For safety reasons, please read the manual first before plugging in machine. Please keep this manual properly for convenient reference as needed.
  • Page 3 About This Manual 1. Safety Precautions 1.1 Warning Stickers 1.2 Placing Site 1.3 Safety Precautions 1.4 Precaution during Play 1.5 Transporting and Moving 1.6 Installing and Placing 1.7 Caution & Warning Stickers 2. Product Description 2.1 Product Specification 2.2 Overview 2.3 Parts Name 2.4 Shipment List 2.5 Packing List...
  • Page 4 5.2 Part Replacement 5.2.1 LOGO RGB LED change 5.2.2 LOGO white LED change 5.2.3 Stand bordering RGB LED change 5.2.4 Stand interior RGB LED change 5.2.5 Console bordering RGB LED change 5.2.6 Side bordering RGB LED change 5.2.7 Front side trimming RGB LED change 5.2.8 Cover RGB LED change 5.2.9 Hillside RGB LED change 5.2.10 Axe RGB LED change...
  • Page 5 6. Assembly Drawing 6.1 Assembly Tree Drawing 6.2 General assembly (FMG2-0000000) 6.3 Frame assembly (FMG2-0100000) 6.3.1 Box assembly (FMG2-0101000) 6.3.2 Power box assembly (FMG2-0102000) 6.3.3 Service panel assembly (FMG2-0103000) 6.3.4 Circuit board assembly (FMG2-0104000) 6.3.5 Switching power supply assembly (FMG2-0105000) 6.3.6 Coin box assembly (FMG2-0106000) 6.3.7 Front side LED assembly of machine(FMG2-0107000) 6.3.8 Axe seat assembly (FMG2-0108000)
  • Page 6 In order to avoid injury to related people and damage to property, please observe the followings: PLEASE READ FIRST The following marks can be used to indicate the magnitudes of risk and damage caused by ignorance or improper operation: Warning means “may result in serious injury or death”...
  • Page 7 The owner shall pay attention to the followings when placing, checking and repairing machine to insure player’s security and avoid damage: Warning please check the voltage is 120V or 220V before the machine connectes to the power supply,or it may cause a fire or electric shock. Make sure to plug the game into 120V or 220V main outlet to avoid fire and electric shock.
  • Page 8 Caution In order to avoid injury and accident during play, the following people shall not play the game: People who are injured or less mobile. Person with poor health condition, such as hypertension or heart disease. Person wearing high-heeled or slippery shoes. Person who can’t touch the pedal.
  • Page 9 Pay attention to the following when placing the machine. Caution Place the machine on the flat and slip resistant area. Use the adjusters to fix the machine (See diagram 1) 1.Loosen the nuts for the adjusters (clockwise), tighten the bolts with a wrench (clockwise). 2.Tighten the nut firmly(counter clockwise) and fix it well.
  • Page 11 Location Indoor Only Dimension 1127(W)×1173(D)×2141(H) Rated Voltage 120V Frequency 60Hz Power Consumption 350 W Game-machine weight 115kg 。 Temperature Range 5~40 1127mm 70mm 1173mm 646mm Front View Side View...
  • Page 12 Side View Rear View Bottom View Top View...
  • Page 13 The POP theme board Left side of the POP Light box Triangular light assembly LED strip assembly on Scoreboard both sides of cover Right side of the POP Character slider assembly Speaker Mesh Axe ejection assembly Small tree Start button Ramp assembly Front door Hand clasping...
  • Page 14 Modes of packing FMG2-0700D01 Andy plate -5.0T POP plate right side Andy plate -5.0T POP plate left side FMG2-0600D01 Andy plate -5.0T FMG2-0000D01 POP plate Shipment assembly FMG2-0000000-A components FMG2-9901E05 Frame limit wood02 Solid wood 30.0*30.0*1365.0 FMG2-9901E04 Frame limit wood01 Solid wood 30.0*20.0*620.0 FMG2-9901E03 Frame canopy...
  • Page 15 Please check the following items after purchasing our product. If any part missing or damaged, please contact our sales person! Description Specification Quantity Remarks 3m（1.0mm ) Power cord Fuse tube 6.3A/ 125V（5X20） Allen large flat head screw M4*8（chroming） Allen large flat head screw M4*12（chroming）...
  • Page 16 Package transportation parts Package transportation protection wood Package transportation iron 3 General assembly of stand Remove 2 inner hexagonal screws M4*20 on the rear upper door, and open the rear upper door. Remove 2 hexagon socket large truss head screws M4*12 of the package transportation iron “3”...
  • Page 17 Scope Inquiry regarding product can be assisted for free. The warranty scope for consumables and durables may differ from product to product. Please contact our after-sales service center for detailed information. The right of final interpretation is reserved. Exclusive Damage caused by force majeure such as god will. Failure caused by carelessness, such as water contact, falling down, toppling, knocking.
  • Page 18 “LUMBER JACK” is a kind of single person game used to test the players’ grasp of the strength. The player can pull the axe handle by controlling the strength to eject the woodcutter to different colorful areas so as to obtain the number of lotteries corresponding to the color.
  • Page 19 Description about service panel Open front access door, and then you can see service panel above coin box. COIN TICKET K1 Move down, Next item K3 Add SOUND K2 Move up, Previous item POWER K5 Setting、Exit and save K4 subtract、Exit TEST SERVICE Power box Power socket...
  • Page 20 1.Open the front maintenance door with the key and find the service panel. 2.Turn on the power of the machine, at the same time, press[Test] key continuously to enter into the test mode, press key to move to next item, press key to move to previous test, when the test finishes, press key to quit the test.
  • Page 21 No. Test items Remarks In test mode, press key to choose the test item of small tree electromagnet #1, the TreeMagnet 1 TEST electromagnet 1 makes pick-up contact and the first small tree falls. In test mode, press key to choose the test item of small tree electromagnet #2, the TreeMagnet2 TEST electromagnet 2 makes pick-up contact and the second small tree falls.
  • Page 22 No. Test items Remarks In test mode, press the start button once, the coin stopwatch increases/decreases by one 36 >>CoinMeter TEST number in order. test mode, press start button once, lottery-dispensing stopwatch 37 >>TickMeter TEST increases/decreases by one number in order. In test mode, press key to choose the item of #1 sound test, and demonstrate the 38 #1 Sound TEST...
  • Page 23 1.Turn on the power of the machine, at the same time, press key continuously to enter into the photoelectric test, at this time, “Please pull the axe for test” occurs on the LCD screen, at the same time, the red axe lamp flashes quickly. 2.Pull the axe, eject the woodcutter, if the area where the woodcutter passes is detected to be effective, the blue lamp will be ON, otherwise, the blue lamp will be OFF.
  • Page 24 1.Open the front maintenance door with the key and find the service panel. 2.Turn on the power of the machine, at the same time, press key continuously to enter into the parameter setting, press key to move the sub-item down to next item (continuously press it to move it quickly), press key to move the sub-item to previous item.
  • Page 25 1.Open the front maintenance door with the key and find the service panel. 2.Turn on the power of the machine, at the same time, press key continuously to enter into the parameter setting, press key to move the sub-item to [5 Total tickets P12], the default setting of this sub-item is [Inactivate].
  • Page 26 1.Open the front maintenance door with the key and find the service panel. 2.Turn on the power of the machine, at the same time, press key continuously to enter into the business data, press key to enter into next data query, press key to enter into previous data query, after the data query finishes, press key to quit the data query.
  • Page 27 1.Open the front maintenance door with the key and find the service panel. 2.Turn on the power of the machine, at the same time, press key continuously to enter into the record query, press key to move to next round record, press key to move to previous round record, after the record query finishes, press key to quit the record query.
  • Page 28 1.Open the front maintenance door with the key and find the service panel. 2.Turn on the power of the machine, at the same time, press & keys continuously, when “Coins and lotteries cleared” occurs on the LCD screen, the above keys are released and the clearing finishes.
  • Page 29 Left side of the POP Light box Scoreboard LED strip assembly on both sides of cover Right side of the POP Character slider assembly Axe ejection assembly Small tree return tension Start button spring Tree Ticket dispenser E03、E10-48 Slope E03、E10-48 Slope LK009W photoelectric detection board photoelectric detection board...
  • Page 30 Error Error meaning Elimination method code Character or slider Check if there is failure for the slider electromagnet and lines, or check if there is foreign matter to block the abnormal return slide way. 1.Check if there is not lottery, if yes, load the lottery and press key to send out the remaining lottery;...
  • Page 31 Error Error meaning Elimination method code #1 fault of photoelectric unit 1.If the rack electromagnet is faulty by checking if the character slides to the starting point on time; Photo-electricity look from bottom to top 2.There is it is blocked by foreign matter; #2 fault of photoelectric unit 3.Photoelectric unit and lines are damaged.
  • Page 32 Error Error meaning Elimination method code #20 fault of photoelectric unit 1.If the rack electromagnet is faulty by checking if the character slides to the starting point on time; Photo-electricity look from bottom to top 2.There is it is blocked by foreign matter; #21 fault of photoelectric unit 3.Photoelectric unit and lines are damaged.
  • Page 33 Even though the machine works normally for a long time, the fault will occur. Therefore, please perform routine check and maintenance concerning the following to ensure a long-term use. External Inspection Stick “Warning” stickers correctly, keep it legible. Firmly tighten the bolt for each adjuster. Tighten screws for speaker assembly.
  • Page 34 1.Open the upper rear maintenance door with the key and unplug one connecting terminal. 2.Remove three screws with the screwdriver, then remove LOGO LED box assembly. 3.Remove six nuts with the screwdriver, then remove the Andy plate. 4.Remove the soft light bar.Replace new and install it in reverse order. 1.Open the upper rear maintenance door with the key and unplug two connecting terminals.
  • Page 35 1.Open the upper rear maintenance door with the key and unplug one left connecting terminal, then cut off the fixing tape and draw out the soft light bar downward. 2.Replace new and install it in reverse order. 1.Open the upper rear maintenance door with the key and unplug one connecting terminal and take out the stand interior assembly.
  • Page 36 Note: The tail of the two light strips Note: The tail of the two light strips should not touch. should not touch. 1.Open the lower rear maintenance door with the key and unplug one connecting terminal. 2.Unplug one upper left connecting terminal and one upper right connecting terminal. 3.Remove fourteen screws with the screwdriver and loosen the console Acryl.
  • Page 37 1.Open the front maintenance door with the key and unplug one connecting terminal. 2.Remove ten screws with the screwdriver, then remove the Acryl. 3.Remove one soft light bar.Replace new and install it in reverse order. 1.Open the front maintenance door with the key and unplug one connecting terminal.
  • Page 38 1.Open the front maintenance door with the key and unplug one left connecting terminal and one right connecting terminal. 2.Remove twelve screws with the screwdriver, then remove the cover. 3.Remove twelve nuts with the screwdriver, then remove three soft light bars.Replace new and install it in reverse order.
  • Page 39 Backup LED Backup LED Wiring terminal Wiring terminal Backup wiring Backup wiring terminal terminal Wiring terminal Wiring terminal Backup wiring Backup wiring terminal terminal Backup LED Backup LED 3.Open the front maintenance door with the key，unplug two connecting terminals. 4.Remove two left soft light bars and two right soft light bars.Replace new and install it in reverse order.
  • Page 40 1.Remove four screws with the screwdriver, then remove the stainless steel decorated on the axe. 2.Remove four screws with the screwdriver, then remove the acryl decorated on the axe. 3.Gently draw out two soft light bars for 3cm and weld two soft light bars. 4.Replace new and install it in reverse order.
  • Page 41 FMJ-LED1.5x4.PCB FMJ-LED1.5x4.PCB XXH-180424A XXH-180424A 1.Open the upper rear maintenance door with the key and remove four screws, then unplug three connecting terminals and remove the digital tube FMJ-LED1.5x4.PCB. 2.Replace new and install it in reverse order. FMJ-LED1.0 inch x3x5.PCB FMJ-LED1.0 inch x3x5.PCB XXH-180425A XXH-180425A 1.Open the upper rear maintenance door with the key, remove five screws with the...
  • Page 42 JF-S1670DL 12V JF-S1670DL 12V 1.Open the front maintenance door with the key and unplug one connecting terminal, then remove two screws and the axe electromagnet JF-S1670DL 12V. 2.Install it again in reverse order after changing into new axe electromagnet and make sure that all screws are coated with the screw glue.
  • Page 43 1.Repeat 5.2.8 operation and remove the cover; remove six screws with the screwdriver, then remove the hardware and the Acryl. 2.Push the woodcutter to the middle position of the hillside platform and uplift the hillside assembly, then pull up the hardware bracket to fix it. 3.
  • Page 44 KI1300-AA07LF 1.Open the front maintenance door with the key and unplug one connecting terminal, then remove one screw and opposite photoelectric board KI1300-AA07LF of axe reset. 2.Replace new and install it in reverse order. 1.Open the lower rear maintenance door with the key and unplug one connecting terminal.
  • Page 45 FMJ-SENSOR.PCB FMJ-SENSOR.PCB 1.Open the lower rear maintenance door with the key and unplug one connecting terminal. 2.Unplug one connecting terminal and remove two screws and the JP（Bonus）Ticket control U-shaped photoelectric board FMJ-SENSOR.PCB.Replace new and install it in reverse order. 12V power 12V power Photoelectric board Photoelectric board...
  • Page 46 1.Remove four left screws and four right screws with the screwdriver, then remove the stainless steel decorated on the axe. 2.Remove four left screws and four right screws with the screwdriver, then remove the acryl decorated on the axe. 3.Open the front maintenance doo with the key and unplug four connecting terminals. 4.Remove four screws.
  • Page 47 Make sure to turn it over into the angle in this Make sure to turn it over into the angle in this picture and take out the linear slider picture and take out the linear slider 7.Remove one screw with the screwdriver, then remove the stop sleeve and buffer rubber. 8.Remove two screws with the screwdriver, then remove the axe handle cushion.
  • Page 48 PMD1212PTB1-A(2).F.GN PMD1212PTB1-A(2).F.GN （include 12cm wire net） （include 12cm wire net） 1.Open the lower rear maintenance door with the key and unplug one connecting terminal. 2.Remove four screws with the screwdriver, then remove the cooling fan.Replace new and install it in reverse order. 1.Open the front maintenance door with the key and unplug one connecting terminal, remove four nuts, then remove the lottery...
  • Page 49 Fuse of AC220Vmachine: T4A/5×20mm 250V Fuse of AC220Vmachine: T4A/5×20mm 250V Fuse of AC120Vmachine: T6.3A/5×20mm 125V Fuse of AC120Vmachine: T6.3A/5×20mm 125V 1.Turn off the power and remove the fuse with the slotted screwdriver. 2.Replace new and install it in reverse order. 1.Open the front maintenance door with the key and remove six screws.
  • Page 50 LRS-100-5 LRS-100-5 LRS-450-12 LRS-450-12 1.Turn off the power, open the lower rear maintenance door with the key, unplug one connecting terminal. 2.Unplug six connecting terminals, remove six screws with the screwdriver, then remove the power box.Replace new and install it in reverse order (firstly insert the terminals back according to the labels and insert the terminals back according to the side of pin seat).
  • Page 51 1.Turn off the power, open the lower rear maintenance door with the key, unplug one connecting terminal, see the components shown as the following figure: JP（Bonus）Ticket control U-shaped JP（Bonus）Ticket control U-shaped photoelectric board XXH-181020A photoelectric board FMJ-SENSOR.PCB Slope photoelectric detection board Slope photoelectric detection board WL-FMG-EYE-V1.0 WL-FMG-EYE-V1.1...
  • Page 52 Small tree electromagnet drive board（FMJ-CH12Magnet.PCB） Tree1-7output Tree 8-12 output 12V power 1-12 tree control DC drive board（FMJ-MotorDrvier.PCB） Output of axe and slider electromagnet 12V power Control of axe and slider electromagnet...
  • Page 53 LED control panel（FMJ-DKQ.PCB） 12V power LED box colorful lamp output Wooden crate colorful lamp control P4 colorful lamp control P3 colorful lamp control P2 colorful lamp control Slope photoelectric detection board（WL-FMG-EYE-V1.1） Slider electromagnet control Photoelectric board control 12V power...
  • Page 54 1.Since the structure of overseas-version ticket dispenser is different from the structure of the general-version ticket dispenser, a piece of ticket dispenser pin-board and a dedicated wire should be added (the overseas-version ticket dispenser is DL-1275 ticket dispenser of DELTRONIC LABS and TD-963CR ticket dispenser of Entropy 2000. The pin-board is WL-OnlyTickDRV_V1.0 and the dedicated wire is HSD - L0013).
  • Page 55 1.Open the front maintenance door with the key. 2.Pull out the terminal of the ticket dispenser，Remove 4 nuts to fix the ticket dispenser and remove the ticket dispenser. Reinstall in a reverse order after replacing. DELTRONIC LABS Entropy 2000 TD-963CR TD-963CR DL-1275 DL-1275...
  • Page 56 1.Open the front maintenance door with the key. 2.Pull out 2 terminals plugged onto the pin-board of ticket dispenser. Dispenser pin-board Dispenser pin-board WL-OnlyTickDRV_V1.0 WL-OnlyTickDRV_V1.0 3.Remove 2 Philip's head screws to fix the ticket dispenser pin-board and remove the ticket dispenser pin-board. Reinstall in a reverse order after replacing (When the ticket dispenser pin-board is installed, note that OUT should be on the left and IN should be on the right.
  • Page 57 FMG2-0101000 Box assembly FMG2-0102000 Power box assembly FMG2-0109000-01 FMG2-0103000 Service panel assembly Score electric eye assembly FMG2-0104000 Circuit board assembly FMG2-0109000-02 FMG2-0105000 Stop rack assembly Switching power supply assembly FMG2-0100000 FMG2-0109000-03 FMG2-0106000 Coin box assembly Frame assembly Regulating motor assembly FMG2-0107000 Front side LED assembly of machine FMG2-0109000-04...
  • Page 59 The three combination 1.6.LS863012 M6*30 chromeplating screw round head 1.6.DP106062 Flat gasket 6* 20*2.0 chromeplating 1.6.DP104012 Flat gasket 4* 10*1.0 chromeplating Hexagon socket large 1.6.LS140032 M4*8 chromeplating truss head screw Hexagon socket large 1.6.LS141032 M4*16 chromeplating truss head screw Cross large truss 1.6.LS241012 M4*10 chromeplating head screw...
  • Page 60 Impulse group filter YB24D3-6A-Q 1.4.LB100010 Hexagon socket large 1.6.LS141022 M4*12 chromeplating truss head screw Hexagon socket large 1.6.LS142022 chromeplating M4*25 truss head screw 1.6.LM306014# M6 zinc plating Self-locking nut Cross large truss head screw chromeplating 1.6.LS241032 M4*16 Cross recessed head screws chromeplating 1.6.LSC42012 M4*20...
  • Page 62 Cross round head three M4*10 chromeplating 1.6.LS841012 combination screw Cross large truss head M4*12 chromeplating 1.6.LS341022 self-tapping screw Hexagon socket large M4*12 chromeplating 1.6.LS141022 truss head screw Hexagon socket large M4*25 chromeplating 1.6.LS142022 truss head screw Hexagon socket large M4*16 chromeplating 1.6.LS141032 truss head screw Cross large truss...
  • Page 63 Fuse tube 6.3A/ 125V（5X20） 1.4.BX120080 1.6.LM204013 Hexagon flange surface nut 1.6.LSC30032 M3*8 chromeplating Cross recessed head screws 1.5.CZ007-00030 Three-in-one AC socket JR-101-1FR1-03 1.1.WA47-0090 FMG2-0102A01 Power box SPCC-1.2T Drawing No. Name Qty. Remarks Note Material/specifications...
  • Page 64 Cross large truss 1.6.LS241012 M4*10 chromeplating head screw Hexagon flange 1.6.LM204013 surface nut Cross round head three 1.6.LS830012 M3*6 chromeplating combination screw HS9-E1 1.4.KG008-00030 Rocker switch Sanhe red SDP- Round buckle-type key 1.4.AJ500012# 103C-22RB Potentiometer knob 13mm 1.4.VR201310 Volume VR module VR-B10K 1.4.VR160010 DC 12V...
  • Page 65 Cross large truss 1.6.LS230032 M3*8 chromeplating head screw Cross large truss chromeplating 1.6.LS331022 M3*12 head self-tapping screw 10 channel Lamp FMJ-DKQ.PCB 1.4.BK001-04160 control panel FMJ-CH12Magnet. 1.4.BK001-04170 12 channel drive board 4 channel DC drive FMJ-MotorDrvier. 1.4.BK001-04180 board L-shaped foot stock M3mm 1.9.LX103010 FMJ-MainBoard.
  • Page 66 Cross large truss head 1.6.LS240012 M4*6（chromeplating） screw Cross the big flat head M3*12（chromeplating） 1.6.LS331022 self tapping screw Cross large truss head 1.6.LS240022 M4*8（chromeplating） screw 1.1.WA47-0120 Fixing iron for power supply SPCC-1.2T FMG2-0105A01 LRS-450-12 Power box LRS-450-12 1.4.DY001-00660 1.4.DY170130 Power box LRS-100-5 LRS-100-5 On/off power supply 1.7.WA47-0230 FMG2-0105D01...
  • Page 67 Slant bend locking piece 1.4.SJ500060 No. 001 1.3.WA35-7010# Lock 1.8.AA000060 Plastic coin box No. Drawing No. Name Material/specifications Qty. Remarks Note...
  • Page 68 DC12V SM16703 lamp BRG60 1.4.ZM003-03690 5050 soft light bar lamp L=500mm YLP-3P terminal FMG2-0107A01 Fixing plate of 1.1.WA47-0130 front side light bar SPCC-1.2T Paint yellow Drawing No. Name Qty. Remarks Note Material/specifications...
  • Page 70 Cross round head three M4*10 chromeplating 1.6.LS841012 combination screw Hexagon socket large 1.6.LS141012 M4*10 chromeplating truss head screw Cross recessed head screws M4*25 chromeplating 1.6.LSC42022 Cross recessed head screws M4*10 chromeplating 1.6.LSC41012 Cross round head three M4*12 chromeplating 1.6.LS841022 combination screw Truss screw M5*50 chromeplating...
  • Page 72 Cross recessed head M4*10 chromeplating 1.6.LSC41012 screws Cross large truss M4*12 chromeplating 1.6.LS241022 head screw The three combination M4*10 chromeplating 1.6.LS841012 screw round head Slider baffle SPCC-2.0T FMG2-0109A22 1.1.WA47-0430 Cross recessed head M4*14 chromeplating 1.6.LSC41032 screws Cross round head three M4*8 chromeplating 1.6.LS840022 combination screw...
  • Page 73 Hex flange nut M3(Color) 1.6.LM203013 Truss screw M3*12（chroming） 1.6.LS231022 Truss screw M3*4（chroming） 1.6.LS230010 Photoelectric board WL_FMG_EYE_V1.1 1.4.ZJ030491 FMG2-0109A02 Electric eye mount SPCC-1.2T 1.1.WA47-0240 Drawing No. Name Material/specifications Qty. Remarks Note...
  • Page 74 Cross recessed M3*6 chromeplating 1.6.LSC30022 head screws Blue zinc FMG2-0109A03 Rack pull tab 1.1.WA47-0250 SPCC-2.0T plating FMG2-0109D05 Stop rack 1.7.WA47-0180 Drawing No. Name Material/specifications Qty. Remarks Note...
  • Page 75 Cross round head three 1.6.LS841022 M4*12 chromeplating combination screw Flat gasket 1.6.DP104012 （ chromeplating ） Cross round head three 1.6.LS841012 M4*10 chromeplating combination screw Cross round head three 1.6.LS830022 M3*8 chromeplating combination screw Cross round head three 1.6.LS830012 M3*6 chromeplating combination screw Electromagnet JF-1040B 12V...
  • Page 76 Hex flange nut 1.6.LM204013 Truss screw M4*16（chroming） 1.6.LS241032 M3 （zinc） Caulking nut 1.6.LM303014 Truss screw M3*8（chroming） 1.6.LS230032 The three combination M4*8（chroming） 1.6.LS840022 screw round head The three combination 1.6.LS850012 M5*8（chroming） screw round head Truss screw M3*6（chroming） 1.6.LS230022 The three combination 1.6.LS830012 M3*6（chroming）...
  • Page 77 The headless socket M4*6（Black） 1.6.LST40011# head screw The three combination M3*6（chroming） 1.6.LS830012 screw round head Motor 37YD530-12V10RPM 1.4.MD001-01000 FMG2-0109A14 Gear Q235 1.1.WA47-0350 1.1.WA47-0340 FMG2-0109A13 Motor fixture SPCC-1.5T Drawing No. Name Material/specifications Qty. Remarks Note...
  • Page 78 The three combination M4*8 （chromeplating） 1.6.LS840022 screw round head Motor photo eye 1.1.WA47-0360 FMG2-0109A15 SPCC-1.2T holder iron Prize-killing U-shaped 1.4.BK001-04190 FMJ-SENSOR.PCB photoelectric board Drawing No. Name Material/specifications Qty. Remarks Note...
  • Page 79 Flat gasket （chroming） The three combination M4*10（chroming） 1.6.LS841012 screw round head 604 Bearing 4*12*4 1.4.ZC001-00480 Fixing hardware SPCC-1.5T FMG2-0109A16 1.1.WA47-0370 of bearing Drawing No. Name Material/specifications Qty. Remarks Note...
  • Page 80 1.6LS240022 Truss screw M4*8（chroming） Truss screw 1.6LS230032 M3*8（chroming） Truss screw 1.6LS231022 M3*12（chroming） The three combination 1.6LS841012 M4*10（chroming） screw round head Bearing SG15 1.4.ZC001-00470 Rack snap spring 0.3X5X10 1.4.TH002-00080 TF10X5X20 Flat wire springs 1.4.TH002-00070 FMG2-0109D07 Character 1.7.WA47-0380 PC-1.0T 1.1.WA47-0410 FMG2-0109A20 Electric eye sensor SPCC-1.0T Paint yellow 1.1.WA47-0400...
  • Page 81 Award-winning FMG2-0110D04 PVC-0.5T 1.7.WA47-0420 FMG2-0110A05 1.1.WA47-0480 Cover fastener 5 SPCC-1.5T 1.1.WA47-0470 FMG2-0110A04 Cover fastener 4 SPCC-1.5T FMG2-0110A03 Cover fastener 3 SPCC-1.5T 1.1.WA47-0460 Cover fastener 2 1.1.WA47-0450 FMG2-0110A02 SPCC-1.5T Cover fastener 1 FMG2-0110A01 SPCC-1.5T 1.1.WA47-0440 Console FMG2-0110D03 PMMA-3.0T 1.7.WA47-0280 decoration part 4 Console 1.7.WA47-0270 FMG2-0110D02...
  • Page 82 FMG2-0112D04 PVC-0.5T 1.7.WA47-0400 Ax protector, 1 Axe head bottom sticker FMG2-0112D03 PVC-0.5T 1.7.WA47-0410 Round button with lamp TN-BK-C-CY D Yellow 1.4.AJ002-00230 (include lamp holder) FMG2-0112C01 Axe protector 2 Yellow PE 1.8.WA47-0010 FMG2-0112D02 PC-1.5T Axe protector 1 1.7.WA47-0190 FMG2-0112D01 Console trimming 1 PMMA-4.0T 1.7.WA47-0250 Drawing No.
  • Page 84 Hexagon socket large M4*12 chromeplating 1.6.LS141022 truss head screw Cross large truss M4*12 chromeplating 1.6.LS241022 head screw Hexagon flange surface nut M4 1.6.LM204013 Caulking nut M6 zinc plating 1.6.LM306014# Hexagon socket large M4*20 chromeplating 1.6.LS142012 truss head screw Hexagon socket large M8*35 stainless steel 1.6.LS183025 truss head screw...
  • Page 85 Hexagon socket large M4*25 chromeplating 1.6.LS142022 truss head screw Hexagon socket large M4*16 chromeplating 1.6.LS141032 truss head screw Cross recessed head M4*16 chromeplating 1.6.LSC41042 screws Cross large truss M4*16 chromeplating 1.6.LS241032 head screw Cross large truss M4*12 chromeplating 1.6.LS241022 head screw Hexagon flange 1.6.LM204013 surface nut...
  • Page 86 Cross large truss M4*8 chromeplating 1.6.LS240022 head screw Cross recessed head M4*8 chromeplating 1.6.LSC40022 screws DC12V SM16703 RGB 60 lamp 5050 soft light bar 1.4.ZM003-03740 L=400mm YLP-3P terminal 3 FMG2-0202A01 Triangle fixing iron SPCC-1.5T 1.1.WA47-0560 Cover plate of stand 2 FMG2-0202D02 PMMA-3.0T 1.7.WA47-0370 interior lamp...
  • Page 87 Self-locking nut M4 zinc plating 1.6.LM304014 Flat gasket 4* 16*1.0 chromeplating 1.6.DP104042 Hexagon socket large M4*25 chromeplating 1.6.LS142022 truss head screw DC12V SM16703 RGB 60 lamp 1.4.ZM003-03730 5050 soft light bar L=1850mm YLP-3P terminal 3 FMG2-0203D03 LOGO lamp box parts 3 PMMA-3.0T 1.7.WA47-0320 Andy plate-5.0T...
  • Page 88 DC12V white light 60 lamp 5050 soft light bar 1.4.ZM003-03720 L=350mm YLP-2P terminal Light bar holder 1 1.1.WA47-0570 FMG2-0204A01 SPCC-1.0T Drawing No. Name Material/specifications Qty. Remarks Note...
  • Page 89 5050 soft light bar DC12V white light 60 lamp 1.4.ZM003-03710 L=250mm YLP-2P terminal Fixing plate of lamp Andy plate-5.0T 1.7.WA47-0220 FMG2-0205D01 panel Drawing No. Name Material/specifications Qty. Remarks Note...
  • Page 90 Slant bend locking piece 1.4.SJ500060 No.001 Door lock 1.3.WA35-7010# FMG2-0206A01 Upper rear door SPCC-1.5T 1.1.WA47-0580 Drawing No. Name Material/specifications Qty. Remarks Note...
  • Page 91 Cross the big flat head self 1.6.LS330022 M3*8 （chroming） tapping screw Truss screw M4*25(Black) 1.6.LS242021 Hex flange nut 1.6.LM204013 Truss screw M4*8 chroming 1.6.LS240022 1.4.BK200091 Lottery adapter WL-OnlyTickDRV_V1.0 Hanging board for wire FMG2-0300C01 1.8.WA47-0020 rope clips Oblique bent lock plate No.002 1.4.SJ500050 Lock...
  • Page 92 Oblique bent lock No.002 1.4.SJ500050 plate Hexagon flange 1.6.LM204013 surface nut Cross large truss M4*50 Stainless steel 1.6.LS245015 head screw PMD1212PTB1-A(2).F.GN Cooling fan 12cm 1.4.FS101012 include 12CM wire net 1.3.WA357010# Lock FMG2-0400B01 Lower rear door 1.2.WA47-0050 MDF-15.0T Drawing No. Name Material/specifications Qty.
  • Page 93 Cross large truss M4*12 chromeplating 1.6.LS241022 head screw 5050 soft light bar DC12V SM16703 RGB 60 lamp Hood left and right 5050 soft light bar 1.4.ZM003-03750 L=850mm YLP-3P terminal DC12V SM16703 RGB 60 lamp 5050 soft light bar 1.4.ZM003-03740 L=400mm YLP-3P terminal Front trimming of FMG2-0500A03 SPCC-1.2T...
  • Page 94 Cap nuts M4 chromeplating 1.6.LM404012 Hexagon socket large M4*12 chromeplating 1.6.LS141022 truss head screw The lower right display FMG2-0600A01 SPCC-1.5T 1.1.WA47-0640 bracket FMG2-0600D01 Left side of POP plate Andy plate-5.0T 1.7.WA47-0440 Drawing No. Name Material/specifications Qty. Remarks Note...
  • Page 95 Cap nuts M4 chromeplating 1.6.LM404012 Hexagon socket large 1.6.LS141022 M4*12 chromeplating truss head screw The lower right display FMG2-0600A01 SPCC-1.5T 1.1.WA47-0640 bracket Andy plate-5.0T 1.7.WA47-0450 FMG2-0700D01 Right side of POP plate Drawing No. Name Material/specifications Qty. Remarks Note...
  • Page 100 SPARES AND SERVICE CONTACT INFORMATION - SEGA TOTAL SOLUTIONS - 42 Barwell Business Park Leatherhead Road, Chessington, Surrey, KT9 2NY United Kingdom Parts: +44 (0) 2083918060 stssales@segaarcade.com - TECHNICAL SUPPORT - +44 (0) 2083918060 technical@segaarcade.com - PLAY IT AMUSEMENTS - 870 Lively Blvd Wood Dale, 602191...
  • Page 101 FMG2-P0037CEC Ver.2.00 The specifications and operation instructions in this Manual are subject to change without notice for reasons such as performance.
