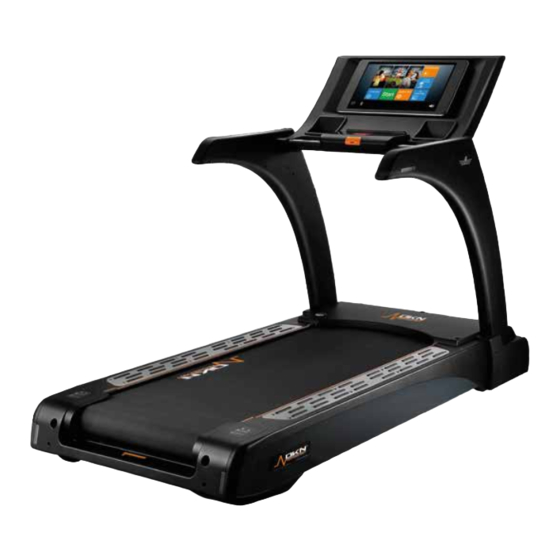

DKN technology PRO RUN X Owner's Manual
  1. Manuals
  2. Brands
  3. DKN technology Manuals
  4. Treadmill
  5. PRO RUN X
  6. Owner's manual

DKN technology PRO RUN X Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
1
PRO RUN X
OWNER'S MANUAL
WEBSITE
MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO RUN X and is the answer not in the manual?

Questions and answers

Related Manuals for DKN technology PRO RUN X

Summary of Contents for DKN technology PRO RUN X

  • Page 1 PRO RUN X OWNER’S MANUAL WEBSITE MANUAL...
  • Page 2 MOTORIZED TREADMILL PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY AND USING THE TREADMILL KEEP THE MANUAL FOR FUTURE REFERENCE.
  • Page 3 WARNING ----When using this treadmill, keep attaching the safety key rope to your clothes. ----When you are running, keep your hands swinging naturally, your eyes staring frontward and never look down at your feet. ----Increase the speed step by step when running. ----When emergency happens, take away the “safety key”...
  • Page 4 IMPORTANT SAFETY PRECAUTIONS 1. Plug the power cord of the treadmill directly into a dedicated grounded circuit. This product must be grounded. If it has breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. 2.
  • Page 5 17. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 18. Put your feet on the side rail before using the treadmill, and always attach the safety key rope to your clothing.
  • Page 6 NAME straps wooden pallets S S T T E E P P 2 2 : : 1. Connect rear end cap lamp power supply line (101) and rear end cap lamp power supply medium line (102); connect the computer lower wire 1 (104) and computer connecting wire 1 (105);...
  • Page 7 S S T T E E P P 3 3 : : 1. As picture shown Connect the rear end cap lamp power supply medium line (102) and rear end cap lamp power supply line (103) Connect the computer connecting wire (105) and computer upper line (106); Attach the power of armrest lamp (107) and power of the armrest lamp (108);...
  • Page 8 S S T T E E P P 4 4 : : 1. Make sure the all wires are hide along the inner wall of computer, then lock the kettle box(27)on the computer(3); 2. Attach the computer cover (30L/R)on the computer(3),and lock tightly with cross recessed pan head screw(71);...
  • Page 9 S S T T E E P P 6 6 : : 1. Attach the motor cover (18) on the main frame (1) with cross recessed pan head screw (58), and then put the silicone bolt stopper (41) inside the screw hole 2.
  • Page 10 TECHNICAL PARAMETER ASSEMBLY SIZE 2155*990*1510 POWER AS ORDER (mm) RUNNING MAX OUTPUT 600X1600 AS ORDER SURFACE (mm) POWER INPUTVOLTAGE NET WEIGHT 241KG AS ORDER GROSS WEIGHT 330KG SPEED RANGE 1.0-25 KM/H INCLINE 180KG 0-15% USER’S WEIGHT OPERATION INSTRUCTIONS Keys Functions Instructions 1.
  • Page 11 the incline to the incline value marked on the key. I Volume add-substract key： adjust the volume when playing music ， J Previous/next key： select playlist to play music ， K PLAY/STOP： Used to play and pause music 2、 、 MANUAL PROGRAM： ： ①How to enter manual program：...
  • Page 12 Start up screen 1. Conspectus This system is the upper table controller (console) of the treadmill. The user can operate all function pages of the system through the TFT LCD screen with touch function. Below, the human-machine interface of this system will be described in detail. All software-related design and development in the system will be based on the description in this article, and any specification revisions will also be marked in the revision table for tracking, record.
  • Page 13 2.1 Abbreviation HOME CTRL PAGE WORKOUT CTRL PAGE ENGINEER CTRL PAGE Graphics User Interface TFT LCD Graphical User Interface The GUI of this system is operated by touch. The following describes the general design specifications for all functional screens for "effective operation": It show two or more icon variations.
  • Page 14 3.1 CONSOLE KEY FUNCTION 3.1.1 Description of each function of the key board ITEM INSTRUCTION If the program is being set, press START KEY to accept the set value and start the ⚫ treadmill. Press START KEY to start the program, DM displays "3 2 1 START", (3, 2, 1 are short ⚫...
  • Page 15 INCLINE There are four quick keys on the console for the 3/6/9/12 segment slope. ⚫ QUICK KEY This KEY is use to lower volume of media and setting interface(minus 0.1% for each ⚫ VOLUME- adjustment) Press this KEY for two seconds to enter continuous KEY mode. ⚫...
  • Page 16 3.2.2 workout program selection function The six sub function workout program (as short for [workout program])will be described in the following section, and use the [workout program] setting function, [workout program] shared function, [workout program] exclusive function respectively describe. Among them, the setting functions are different in each program, so they are proposed separately;...
  • Page 17 3.2.3 [Workout program] setting page 3.2.1 Function summary of exercise parameter setting page CATE DEFAU GORY DESCRIPTION RANGE UNIT FUNCTION When the input time is less than SETTI TIME ⚫ 5, it will automatically become 0 When the input time is ⚫...
  • Page 18 GENDER Male Max[99] Min[10] Refer to METRIC：Max[200]/Min[20] ⚫ WEIGHT 70kg/1 KG/LB ENGLISH：Max[440]/Min[44] ⚫ 54lb description Refer to table 3.2.9 (60 % /80 % ) Refer to table 3.2.9 Max[180] TARG Min[80] ET HR The max /min speed is ⚫ Refer to PROFIL KPH/ subject to the final calibration...
  • Page 19 Value adjustment keys The value on the parameter configuration page is adjusted by imputing the value panel, as shown in Table 3.2.3, which describes the operation and function of each function key. FUNCTION KEY Instruction Value type Display the impute value category at the top of the panel ⚫...
  • Page 20 3.2.4 START invalidation of setting page 3.2.1.2 [WORKOUT PROGRAM] Share Function In addition to the above descriptions, there are 6 possible system functions including PREPARE/WORKOUT/PAUSE/COOL DOWN/SUMMARY/MEDIA. Refer to Table 3.2.4 for possible operations and timing of each function/state. The detailed description of each function/state will be explained independently in the subsequent chapters (the corresponding chapters are shown in Table 3.2.4).
  • Page 21 3.2.4 Correspondence table of shared function description Function/ Description Condition [ENTRY CONDITIONS] Press START KEY ⚫ [ENTRY CONDITIONS] In the PAUSE mode, pressing continue. ⚫ [LEAVE CONDITION] After 3-2-1-GO is displayed, leave this page and ⚫ PREPARE enter the WORKOUT page. [LEAVE CONDITION] Unplug the SAFETY KEY and then plug it back in, ⚫...
  • Page 22 [ENTRY CONDITIONS]Press MEDIA key on the upper left while ⚫ WORKOUT MODE, the screen display Multimedia menu. [ENTRY CONDITIONS]Enter from HCP. ⚫ [LEAVE CONDITION]Press BACK KEY, and go back to WORKOUT mode. ⚫ [LEAVE CONDITION]If any workout condition is satisfied, then engage to ⚫...
  • Page 23 3.2.1.5 GOAL SETTING FUNCTION Setting page 3.2.6 3.2.6 GOAL setting The target parameters are shown in Table 3.2.6, and the rest refer to Table 3.2.1~ Table 3.2.3. Each workout can only chose one of the target parameters from TIME/DISTANCE/CALORIES. If setting more than one target parameter, the previous target parameters will be ignore and keep the final one.
  • Page 24 3.2.6 GOAL parameter related information CATEGORY DEFAULTS INSTRUCTION COOLDOWN when the time counts down to 0:00 ⚫ TIME DISTANCE COOLDOWN when achieve the goal ⚫ CALORIES COOLDOWN when achieve the goal ⚫ 3.2.1.6 GOAL SHARING FUNCTION Refer to Table 3.2.4 3.2.1.7 QUICK START SETTING There is no setting page in this mode, and the four default values of GENDER/AGE/WEIGHT in the setting field of Table 3.2.1...
  • Page 25 3.2.7 HRC setting After HRC60%/HRC80% mode is selected, the mode will be displayed in blue characters on the screen, representing the selected state; after TARGET HR is selected user can input THR (target heartbeat value). The target parameters are as follows Table 3.2.7, the rest refer to Table 3.2.1~Table 3.2.3.
  • Page 26 CATEGORY DEFAULTS INSTRUCTION COOL DOWN, when the time counts down to 0:00. TIME ⚫ If user chose TARGET HR, then use this value as the speed/incline control ⚫ reference If user ⚫ chose HRC60%/HRC80%, the THR calculated by the system will be used as the speed/incline control benchmark.
  • Page 27 3.2.1.10 HRC SHARING FUNCTION Refer to Table 3.2.4 3.2.1.11 HRC Exclusive function HRC program monitors your heart rate in beats and provide it to system for adjust speed and incline, to help you to keep your heart rate at (HRC60%//HRC80%/TARGET HR) within +-6%, the control logic is shown in Table 3.2.8: 3.2.8 HRC Control Logic The initial value of SPEED/INCLINE is the system minimum...
  • Page 28 3.2.9 FITNESS TEST setting page The target parameters refer to Table 3.2.1~Table 3.2.3. 3.2.1.13 FITNESS TEST SHARING FUNCTION Refer to Table 3.2.4. Only in the WORKOUT mode, the user cannot manually adjust the speed/incline value, so the keys will be in the Disable state, as shown in Figure 3.2.10: 3.2.10 FITNESS TEST WORKOUT PAGE - 26 -...
  • Page 29 3.2.9 FITNESS TEST PROGRAM shows the difference from other modes FUNCTIO INSTRUCTION N ITEM ⚫ A single screen displays total of 30 segment (one bar represents one segment) Speed/Incline The current segment is filled with yellow segment 31-41 cover segment 1-11, likewise, Profile segment 42-60 cover segment 12-30.
  • Page 30 Table 3.2.10 FITNESS TEST Warm Up speed, incline control and other functions FUNCTION INSTRUCTION ITEM SPEED ⚫ Fixed to 3MPH (4.8KPH). INCLINE ⚫ Keep incline 0%. ⚫ Total of 3 minutes, after that, enter WORKOUT mode and start testing WORKING TIME process.
  • Page 31 Table 3.2.11 FITNESS TEST calculation logic Step Time Speed(kph/mph) Incline( %) VO2 Max. 0 to 1:00 4.5/7.2 31.15 1:15 4.5/7.2 32.55 1:30 4.5/7.2 33.6 1:45 4.5/7.2 34.65 2:00 4.5/7.2 35.35 2:15 5.0/8.0 37.45 2:30 5.0/8.0 39.55 2:45 5.0/8.0 41.3 3:00 5.0/8.0 43.4 3:15...
  • Page 32 Table 3.2.12 FITNESS TEST Score Evaluation Form - FEMALE VeryPoor Poor Excellent Superio <25.0 25.0- 31.0- 35.0- 39.0- >41 <23.6 23.6- 29.0- 33.0- 37.0- >41 <22.8 22.8- 27.0- 31.5- 35.7- >40 <21.0 21.0- 24.5- 29.0- 32.9- >36 <20.2 20.2- 22.8- 27.0- 31.5- >35...
  • Page 33 3.2.13 USER PROGRAM mode setting page You can change the category of each PROFILE which you desired by clicking incline/Speed. Press START key after above setting, then enter PREPARE mode and start workout. The target parameters are shown in Table 3.2.14, and the rest refer to Table 3.2.1~Table 3.2.3.
  • Page 34 3.2.14 Virtual reality setting page The target parameters are shown in Table 3.2.15, and the rest refer to Table 3.2.1~Table 3.2.3 3.2.15 Information about virtual reality target parameters Categor Defult Description The total time it takes for When the time counts down to 0:00, enter the TIME the video to play at the COOLDOWN mode.
  • Page 35 3.2.1.19 VIRTUAL REALITY PROGRAM EXCLUSIVE FEATURES In process of this function, the system has special corresponding functions for speed, which are explained as follows: The speed system will dynamically and real-time adjust the playback speed of the video portion according to running belt speed adjusted by the user. The lowest running belt speed corresponds to the lowest video playback speed ratio, and the highest running belt speed corresponds to the highest video playback speed ratio.
  • Page 36 3.2.1.21 SHARING FUNCTION – WORKOUT The running belt speed/lift can be adjusted in real time (except in FITNESS TEST mode), or pause current exercise in WCP, at the same time, all real-time exercise information is listed at the top of this page, as shown in Figure 3.2.17: 3.2.17 WORKOUT mode screen Above is the first real-time sports information area (area 1 marked in Figure...
  • Page 37 ⚫ If DISTANCE is selected as the target in workout mode, the value Max[99.9] Distance traveled displayed in this field will become DISTANCE (KM/MILE) Min[0.0] the remaining distance, ⚫ If CALORIES is selected as the target in workout mode, the value displayed in this field will become the remaining calories.
  • Page 38 ⚫ The high-speed correction value in engineering mode is the maximum value Max[descript ⚫ The low-speed ion] SPEED correction value in Min[descripti engineering mode is the minimum value Central information area This area is the information display function, including a total of 2 types: Speed Profile/Incline Profile, the details are shown in Table 3.2.17: Function Item Descri...
  • Page 39 Table 3.2.17 Central-workout information display description Main control area It is divided into three categories and two control items, the first category is workout parameter control, including Speed/Incline on) and fine-tuning +/- buttons, refer to Table 3.2.17; the second category is workout state control, which is STOP button, refer to Table 3.2.18.
  • Page 40 Speed fine-tuning +/- keys The adjustment amount is 0.1, and the rest are the same as the ⚫ /Max-corrected Speed panel. maximum value Min-corrected minimum value Incline fine-tuning +/- keys The adjustment amount is 1, and the rest are the same as the Incline ⚫...
  • Page 41 Table 3.2.19 Main Control Area Category 2 - Workout State Control Description Item Description Press to stop the current workout immediately, and the system enters the STOP key PAUSE mode, refer to 3.2.19. START key Start the treadmill 3.2.1.22 SHARE FUNCTION– PAUSE In the Pause mode, the system is in a pause state, and there are only three operating situations at this time, including CONTINUE/QUIT/standstill.
  • Page 42 Main function Description category CONTINUE Press to enter the prepare state and 3-2-1-START countdown, 3, 2, 1 ⚫ countdown with a short "beep" sound, "START" with a long "beep" sound. After the countdown is over, the speed will continue to run at the corrected minimum speed, and the incline will continue to run at 0.
  • Page 43 Main Description function category In the 3 minutes COOLDOWN： SPEED ⚫ ◆ Decelerate at speed*0.8, and change every 10 seconds. When the speed reaches the lowest speed of the system, it will be carried out at this speed until the COOLDOWN ends. Ex: 12km/h before entering COOLDOWN, 9.6km/h (12*0.8) after ◆...
  • Page 44 SUMMARY page in each workout program Main function Description category HOME key ● Press to leave the current page immediately and returns to HCP. ● Swipe left/right on the screen to switch between four different types SUMMARY of workout summary information ●...
  • Page 45 3.2.22 MEDIA page Chinese language: A total of 6 different media sub-functions are supported: Firefox/Weibo/iQiyi/Music/Video/Le Bo/QQ Music 3.2.23 MEDIA page Entering the MEDIA sub function from the HCP On the HCP page, you can directly enter the MEDIA sub-function, execute the function, and start to workout.
  • Page 46 screen, the control area at the bottom and the MEDIA sidebar on the right are all visible or operable. When the icon is pressed , it will turn to full screen display, including the sidebar. In all MEDIA full-screen images, clicking the icon on the screen will return to the original screen immediately.
  • Page 47 Video switching timing For movies or music, the on/off control will be done in a unified manner. Functional category Description For any video or web page with or without sound, once you leave the ⚫ playback and return to the WORKOUT page or the PAUSE mode, the Video currently playing video and sound will be terminated immediately ⚫...
  • Page 48 、 3.2.25 multi-language setting function System setting Chinese: This function page includes multi-language switch (default is Chinese), backlight brightness adjustment, volume adjustment and manual refueling, all three will take effect immediately without restarting the system. Foreign language: This function page includes multi-language switch, TFT LCD backlight brightness adjustment, volume adjustment and multimedia update and manual refueling, all three will take effect immediately without restarting the system.
  • Page 49 Manual refueling: Clicking in Manual lubricant will enter the refueling page. If the lubricant pot is short of lubricant, it will prompt "The lubricant pot is short of lubricant, please add lubricant oil in time". If there is lubricant in the lubricant pot, it will prompt "After clicking OK, the lubricant pot will automatically lubricate the running belt", click OK, the lubricant pot will automatically lubricate the running belt for 20 seconds, and the refueling mileage of Factory II will be reset to the set value.
  • Page 50 3.2.27 Bluetooth connection Network setting Turn on WIFI, the system will automatically scan the nearby WIFI, click the name of the WIFI you want to connect, enter the password of the WIFI, the system will connect with the parameters input by the user, if the connection is successful, if the connection is successful, press the return key to return to After setting the page, press the Home button to return to the main screen, otherwise it will only appear that it has been saved and will not be connected, see Image 3.4.1 for details.
  • Page 51 3.4.1 Lock Setting (need Password) Enter Customer Password [default 0000]/SR Password [fixed 1234] to enter Lock Setting, press Reset to set Distance/Time lock, and display the remaining Distance/Time at the same time. As shown in Image 3.2.26: 3.2.26 Lock Setting function enable and DISTANCE/TIME lock setting Password Setting Customer Password [default 0000]/SR Password [fixed 1234] after pressing the Reset key, you can enter the password of the Customer Password by yourself, as...
  • Page 52 3.3 – Engineering mode ECP includes system-related parameter setting and information display that are not required by ordinary users, which are respectively placed in the Factory 1/Factory 2 function items. Press and hold the ergo icon at the bottom of the center of the HCP for more than 10 seconds or click 10 times within 5 seconds to automatically switch to ECP, as shown in Image 3.3.1: 3.3.1 Engineering mode Function Page...
  • Page 53 Remove the safety key, Default: OFF ⚫ ⚫ Incline Revert put back the safety key, （disenable） the incline not return to zero when power on. Enter the workout page, incline returns to zero. Pause/ Stop the incline to ⚫ zero. Press start while paused, continue workout when the incline...
  • Page 54 Total time Total used time refer to table 3.3.2 Total distance Total used distance Software version APP version, can’t revise System SDK version SDK version, can’t revise message Hard disk version Hard disk version, can’t revise Lower console Lower console version, can’t version revise Reset...
  • Page 55 Unit： % ⚫ Setting the max incline value of the machine. Max Incline ⚫ ⚫ If the input value exceeds the value range, it is Value range： ⚫ automatically set to the upper or lower limit Max[20]/Min[10] value. Default：15 ⚫ Input with software keyboard Value range：...
  • Page 56 For example: set the refueling mileage to 150km, when this exercise reaches 160km, it will automatically refuel for 20 seconds after returning to the home interface, and it will also automatically refuel for 20 seconds when the next exercise reaches 140km and returns to the home page. Software update function After pressing the Update S/W button, the screen will bring up the file list selection page and the subsequent update process.
  • Page 57 Table 3.3.4 Logo updating 3.4 – Error message window System alarm messages are presented in different windows, some describe errors in text, and some are displayed with specific codes (eg: E01H/E02H, etc.), see Figure 3.4.1. For a complete list of error codes, see Table 3.4.1. - 55 -...
  • Page 58 3.4.1 Alarm message window There are different processing and elimination methods for different types of alarm messages, refer to Table 3.4.1. 3.4.1 Summary table of alarm message processing methods Alert message Solution description EMERGENCY STOP After the Safety Key is removed, the system will automatically ⚫...
  • Page 59 Other Except for the above, other alarm messages cannot be ⚫ removed manually, only power on again after turning power off and eliminating the error. 4 Attachment 1 Speed/Incline Correspondence Table of Each Mode corresponding codes following programs are: [1]GOAL, [2]QUICK START, [3] HRC,[4]USER Table 4.1.1 is Metric and Table 4.1.2 is Imperial) (S is the speed field element, I is the incline field, LS is the system minimum speed)
  • Page 60 2、 Check whether the connection of the power plug, socket and switch is loose 3、 Check whether the power supply voltage is too low 4、 Please contact customer service if it cannot be restored to normal, E02H ntCF Temperature 1、 After 1 minute of power failure, restart the sensor abnormal power supply.
  • Page 61 E0AH Motor overload 1、 Confirm that the load is within the design range 2、 Check whether the running belt needs to be luburated, whether the running belt is seriously worn and needs to be replaced, and whether the transmission mechanism (roller, etc.) is abnormal E0BH Inverter overload...
  • Page 62 temperature, turn on the power again. Calibration failure Incline learning 1、 Check whether incline VR wire is connected failure well. 2、 Connect and recalibrate Emergency stop Safety switch 1、 Check whether safety key switch is smoothly. abnormal 2、 Check whether safety key switch connection wire is loose or falls off.
  • Page 63 / 30 = Time Setting time The running time of each section routine 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 SPD 2 2 3 3 3 INC 1 1 2 3 3 SPD 2 2...
  • Page 64 SPD 3 3 7 6 10 7 3 3 10 10 5 6 3 1 INC 1 1 5 2 2 SPD 3 3 10 10 7 7 10 7 10 7 7 6 3 3 INC 1 1 5 2 2 SPD 3 3 5 4 1 INC 2 2...
  • Page 65 connect, and after the connection is successful, you can control the movement of the electronic watch through the APP. 7. 2 If and only when the electronic watch is in the home interface, it can be connected to Bluetooth, and only the quick start mode can enter sports.
  • Page 66 exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch. As you get fitter you may need to train longer and harder. It is advisable to train at least three times a week, and if possible space your workouts evenly throughout the week. To tone muscle while on your Treadmill you will need to have the resistance set quite high.
  • Page 67 TENSIONING THE BELT If you can feel a slipping sensation when running on the treadmill, the running belt must be tightened. In most cases, the belt has stretched from use, causing the belt to slip. This is a normal and common adjustment.
  • Page 68 WARRANTY DKN-Technology warrants this product to be free from defects in material at the time of the product’s tender of delivery. This ‘Carry-in’ Limited Warranty applies for a period of two (2) years, beginning on the date mentioned on your product invoice or proof of purchase of product issue by DKN-Technology.
  • Page 69 EXPLODED DRAWING - 67 -...
  • Page 70 PARTS LIST Part Part Description Description Cross recessed pan head screw Main frame M6*20 Cross recessed pan head screw 2L/R Upright tube joint per. M6*15 inner hexagon sunk head bolt Computer M6*45 Chamfering bolt with hexagon Incline frame head M6*15 Cross slotted washer head screw Oil tube connecting frame M5*20...
  • Page 71 Computer bottom cover Handrail indicator lamp clamp 30L/R Computer cover Rear cap indicator lamp clamp Computer board upper Handrail light cover Computer board bottom Rear cap light cover Computer keyboard Adaptor 34L/R Handle bar Security lock component Silicon cushion Pump Belt Power line Running belt...
  • Page 72 WEBSITE Make an Appointment to Visit our Showroom...
