2. Raising and Lowering the Roll-Over Protective Structure (ROPS)

WARNING
Avoid injury:
●NEVER operate the tractor with the Roll-Over
Protective Structure (ROPS) in the lowered (folded)
position unless the tractor needs to be operated in a
low clearance situation.
Keep the retractable seat belt fastened while operating the
tractor with the Roll-Over Protective Structure (ROPS) in
the raised position. This practice will reduce the possibility
of injury or death in the event of roll-over accident. If the
Roll-Over Protective Structure (ROPS) has been removed
for any reason, be sure to reinstall all the associated parts
before operating the tractor. NEVER alter the Roll-Over
Protective Structure (ROPS). The altered Roll-Over
Protective Structure (ROPS) may fail to provide the
designed protection. Replace the damaged Roll-Over
Protective Structure (ROPS) immediately. Contact your
local Cub Cadet Yanmar dealer for technical assistance.
NEVER use the retractable seat belt if the foldable Roll-
Over Protective Structure (ROPS) is in the folded position
or the tractor does not have the Roll-Over Protective
Structure (ROPS).
1. Lowering (Folding Down) the Roll-Over
Protective Structure (ROPS)

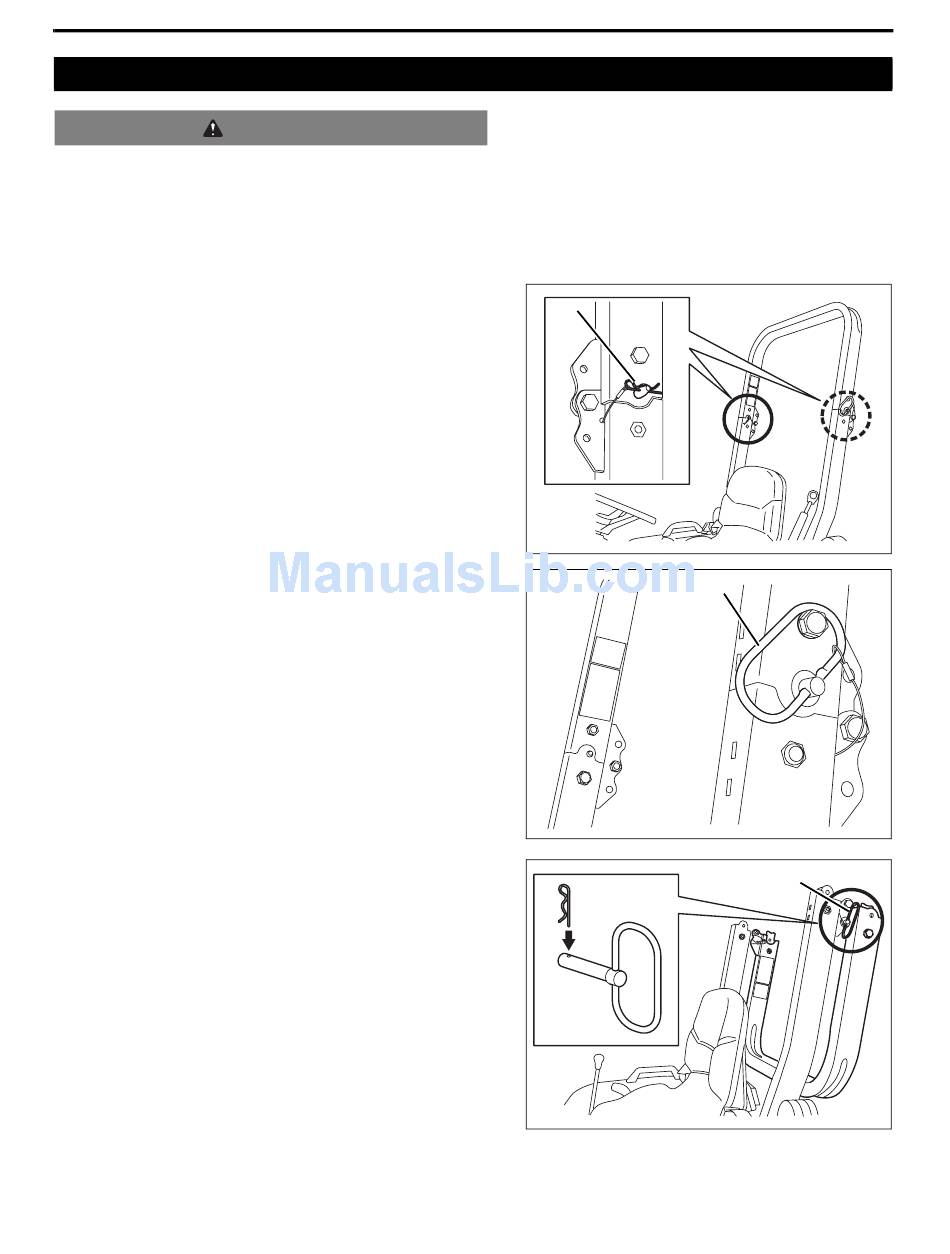

1. Pull out the cotter pin from each of the insert pins on
both sides of the Roll-Over Protective Structure
(ROPS).
2. Pull out the insert pins from both sides of the Roll-Over
Protective Structure (ROPS).
3. Lower (fold) the Roll-Over Protective Structure
(ROPS).
4. There are folded Roll-Over Protective Structure
(ROPS) retaining holes on both sides of the lowered
Roll-Over Protective Structure (ROPS). Install the
insert pins into these holes.
5. There are holes on both ends of the insert pin. Install
the cotter pin into these holes.
NOTE:
●To secure the play-absorbing vibration-insulating
rubber block, pull the upper bolt to the near side and
insert the pins.
(A) Cotter pin
(B) Insert pin
Ex2900 / 3200 Operator's Manual
8. OPERATING THE TRACTOR
8-3
(A)
A3013706
(B)
A3013708
A3013709
(B)
