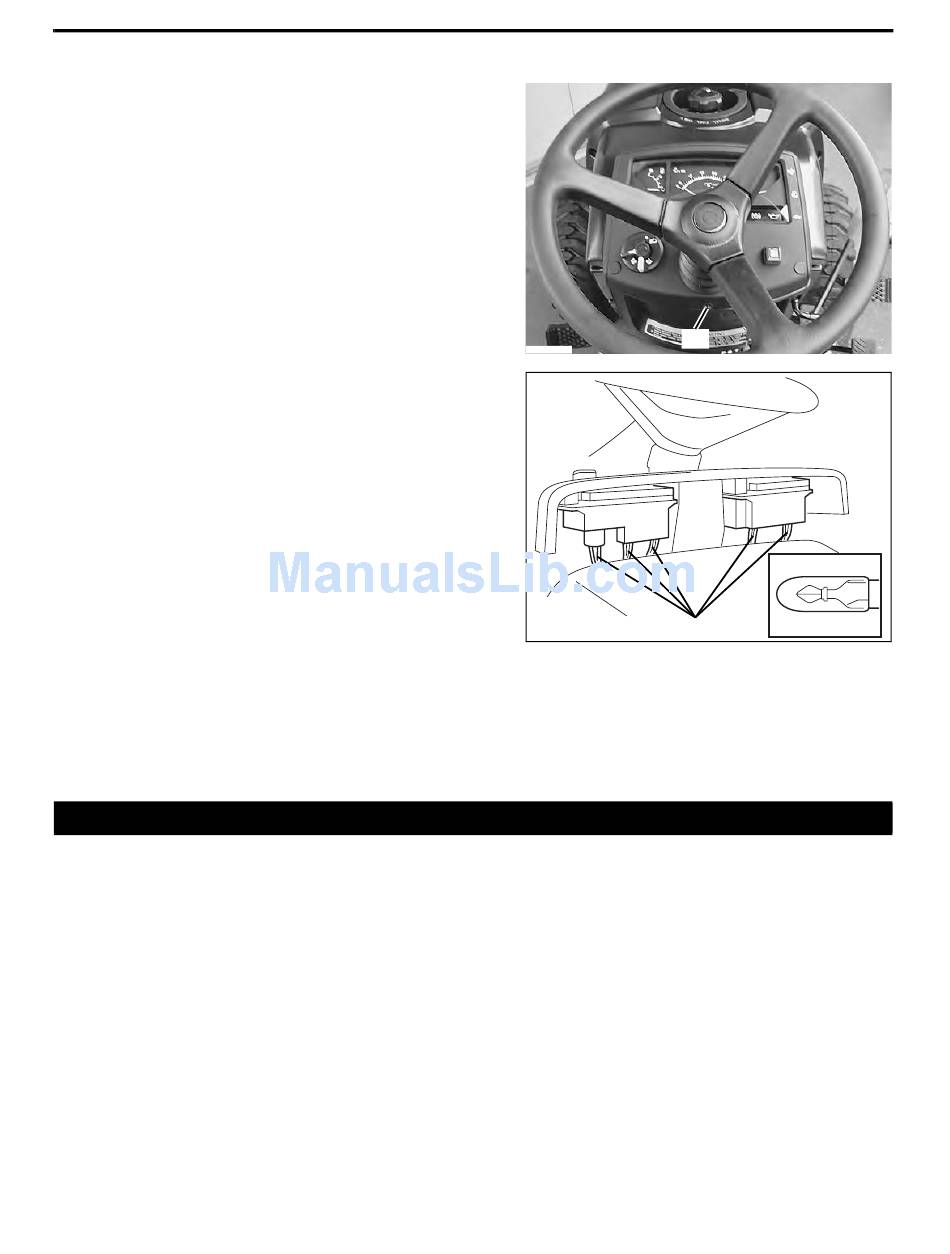

■ Replacing the Instrument Panel Light Bulb

1. Park your tractor safely.
2. Remove the dashboard.
3. Stop the engine and remove the key.
4. Remove the four screws from the instrument panel
housing. Carefully move the housing rearward.
5. Locate the failed light bulb.
6. Remove the bulb holder from the socket on instrument
panel. Do not twist.
7. Push the new bulb into the socket.
8. Install the bulb holder to the instrument panel.
9. Check that the instrument panel light operates
normally.
10. Install the instrument panel housing.
(A) Screw (4 used)
(B) Bulb holder
(C) New bulb
NOTE:
●If only an insufficient work space is available, the
steering wheel may be temporarily removed.

4. Headlights

■ Adjusting the Headlights

The headlights are fixed. If their adjustment is required,
contact your local Cub Cadet Yanmar dealer for technical
assistance.
15. SERVICING THE ELECTRICAL SYSTEM
15-9
(A)
P3013746
(B)
3013746
Ex2900 / 3200 Operator's Manual
(C)
