I
NTRODUCTION

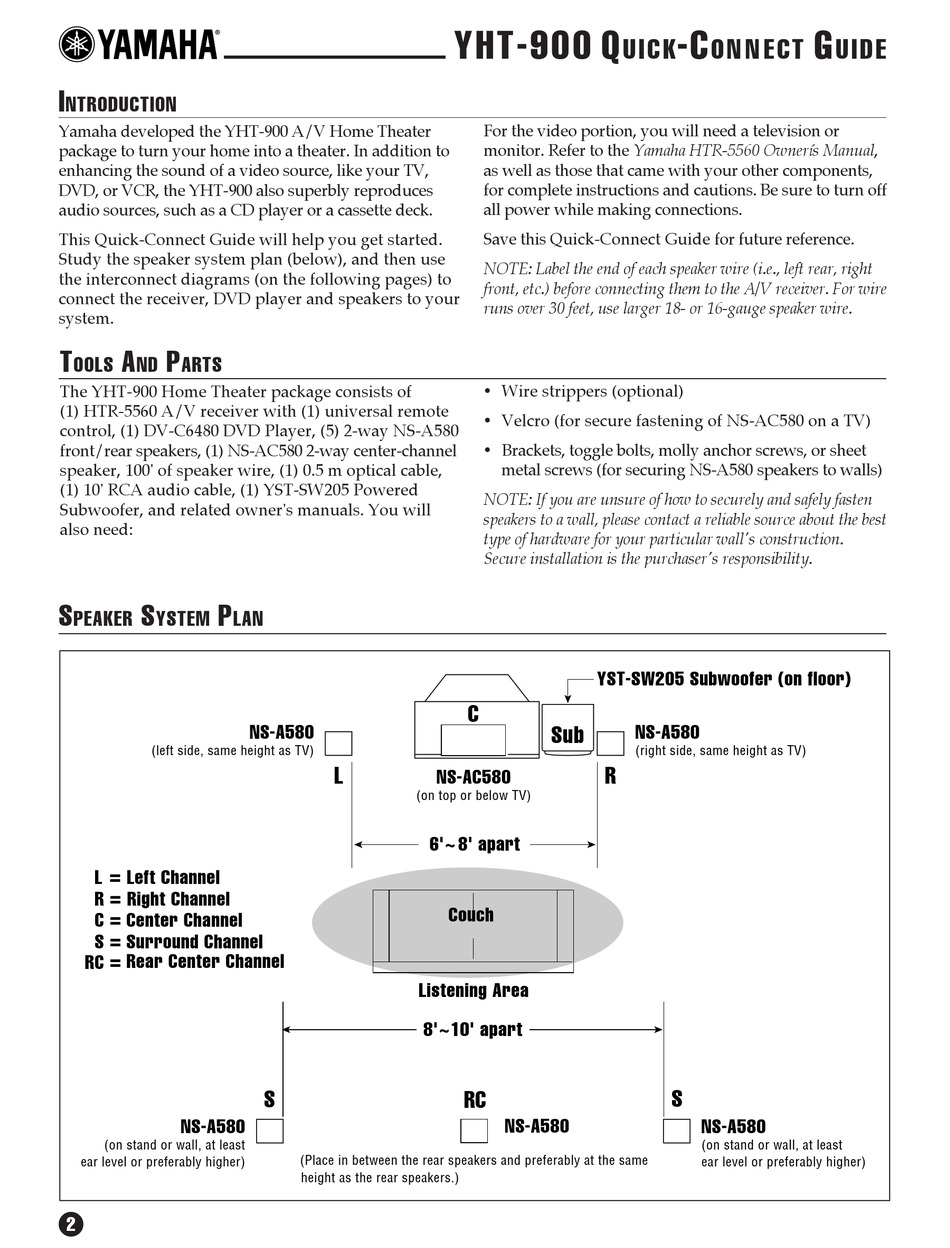

Yamaha developed the YHT-900 A/V Home Theater
package to turn your home into a theater. In addition to
enhancing the sound of a video source, like your TV,
DVD, or VCR, the YHT-900 also superbly reproduces
audio sources, such as a CD player or a cassette deck.
This Quick-Connect Guide will help you get started.
Study the speaker system plan (below), and then use
the interconnect diagrams (on the following pages) to
connect the receiver, DVD player and speakers to your
system.
T
A
P
OOLS
ND
ARTS
The YHT-900 Home Theater package consists of
(1) HTR-5560 A/V receiver with (1) universal remote
control, (1) DV-C6480 DVD Player, (5) 2-way NS-A580
front/rear speakers, (1) NS-AC580 2-way center-channel
speaker, 100' of speaker wire, (1) 0.5 m optical cable,
(1) 10' RCA audio cable, (1) YST-SW205 Powered
Subwoofer, and related owner's manuals. You will
also need:
S
S
P
PEAKER
YSTEM
LAN
(left side, same height as TV)
L = Left Channel
R = Right Channel
C = Center Channel
S = Surround Channel
RC = Rear Center Channel
NS-A580
(on stand or wall, at least
ear level or preferably higher)
2
NS-A580
L
(on top or below TV)
Listening Area
8'~10' apart
S
(Place in between the rear speakers and preferably at the same
height as the rear speakers.)
YHT-900 Q
For the video portion, you will need a television or
monitor. Refer to the Yamaha HTR-5560 Ownerís Manual,
as well as those that came with your other components,
for complete instructions and cautions. Be sure to turn off
all power while making connections.
Save this Quick-Connect Guide for future reference.
NOTE: Label the end of each speaker wire (i.e., left rear, right
front, etc.) before connecting them to the A/V receiver. For wire
runs over 30 feet, use larger 18- or 16-gauge speaker wire.
Wire strippers (optional)
Velcro (for secure fastening of NS-AC580 on a TV)
Brackets, toggle bolts, molly anchor screws, or sheet
metal screws (for securing NS-A580 speakers to walls)
NOTE: If you are unsure of how to securely and safely fasten
speakers to a wall, please contact a reliable source about the best
type of hardware for your particular wall's construction.
Secure installation is the purchaser's responsibility.
YST-SW205 Subwoofer (on floor)
C
Sub
R
NS-AC580
6'~ 8' apart
Couch
RC
NS-A580
-C
U I C K
O N N E CT
NS-A580
(right side, same height as TV)
S
NS-A580
(on stand or wall, at least
ear level or preferably higher)
G
U I D E
