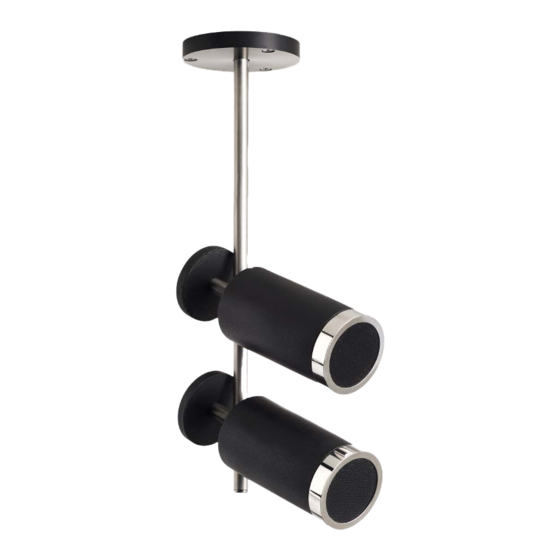

ARCHITETTURA SONORA ICARUS MULTICEILING Quick Start Manual

ICARUS_
MULTICEILING

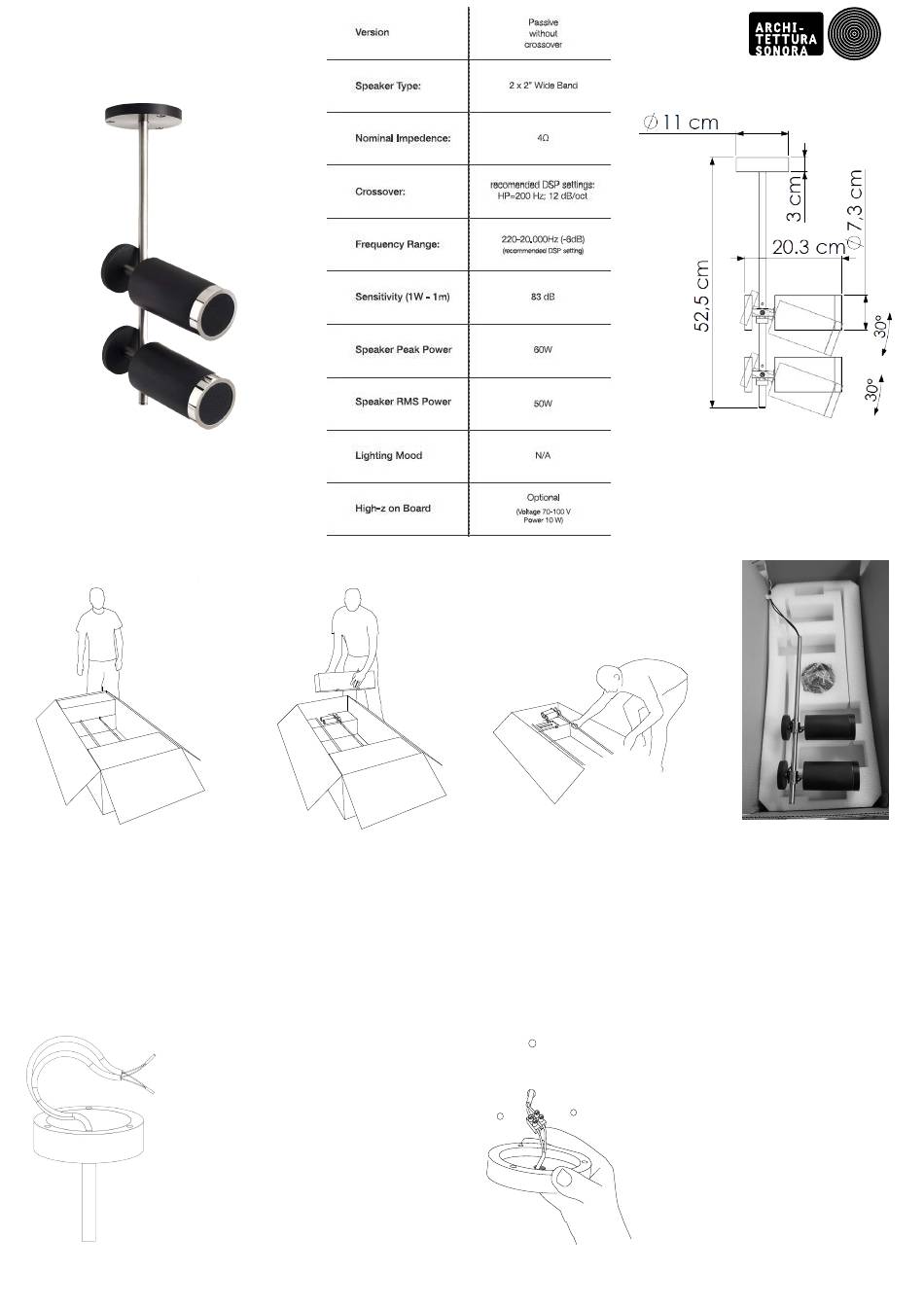

Unpacking
: to remove Icarus_Multiceiling from the shipping box carefully follow these steps:
1.
Icarus_Multiceiling is
shipped in a box secured
with packing foam.
Installation
Gently remove the item from the
package and proceed by
screwing (clockwise) the black
plate onto the tube (from the
smooth side of the plate) into the
relative thread.
Screw all the way down (without
forcing too hard) after passing the
acoustic cable through the center
hole in the plate.
We recommend using a
threadlocker (not supplied).
2.
Remove the upper part
of the packing foam
protecting the model
inside the box, in order
to release them.
3.
Firmly hold the metal
pole and gently pull
the
Icarus_Multiceiling
out of the box.
Once screwed in (and by getting
help from another person),
mark the 3 ceiling mounting holes,
making sure that the leads of the
two satellites remain in the back
side of where you intend to radiate
sound.
Lay the MC aside and proceed
with drilling the ceiling and with
inserting the related black screw
(supplied) into the suitable Fisher
wall plugs (not supplied).
4.
Turn the item and
place into position,
now ready for set-up
and installation.
