ARCHITETTURA SONORA ICARUS Quick Start Manual

ICARUS_
STAND-ALONE
27cm
10.62"

Unpacking:

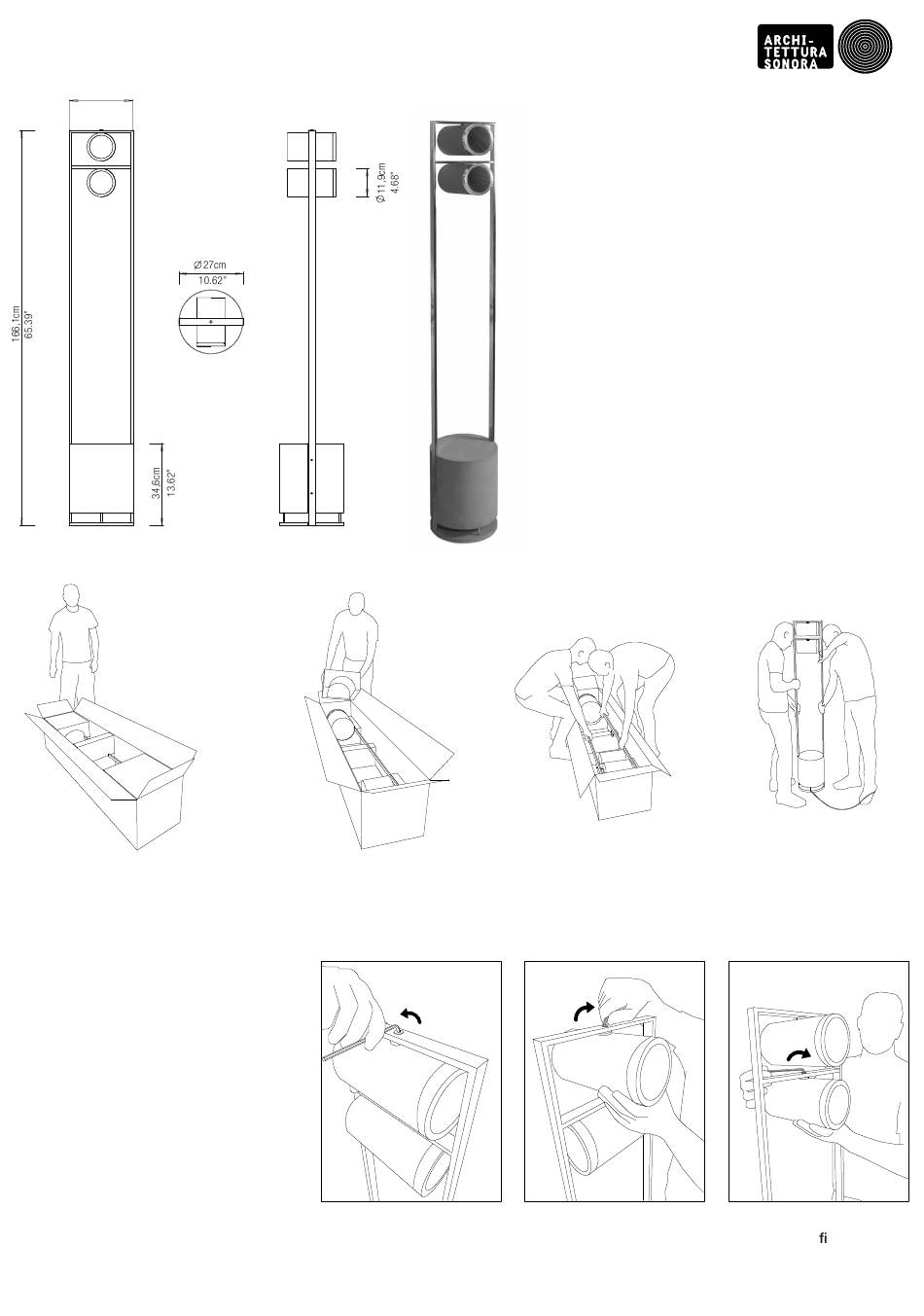

to remove Icarus from the shipping box carefully follow these steps
1.
Icarus is shipped in a box
secured with packing foam;
due to its size and weight it
must always be handled by
two people.

Set up:

after unpacking Icarus proceed
with the orientation of the two satellites.
Using the supplied Allen wrench, unscrew the
joint that connects the satellite to the frame,
orient it in the desired position according to the
acoustic requirements and tighten it again so
that to keep the satellite in the desired position.
Repeat the same operation for both satellites.
Keep the supplied Allen wrench in a safe place
for future use.
Acoustic connectivity & settings:
ped with DSP on board: one for satellites and the other for the subwoofer. For everything concerning the regulation of the DSP, please
refer to the website www.architetturasonora.com or to your specialized dealer.
2.
Remove the upper part of
the foam packing
protecting the module
inside the box, to release it.
the Icarus stand-alone necessarily requires a two channels ampli er equip-
3.
Holding the metal frame
firmly gently pull the
Icarus out of the box. As
already mentioned it
requires two people.
4.
Turn the module and
place into position,
ready for set-up and
installation.
