Matrix G1-FW153 Installation Instructions

© 2020 Johnson Health Tech. All Rights Reserved. Specifications subject to change without notice.
VA R S I T Y S ERI ES

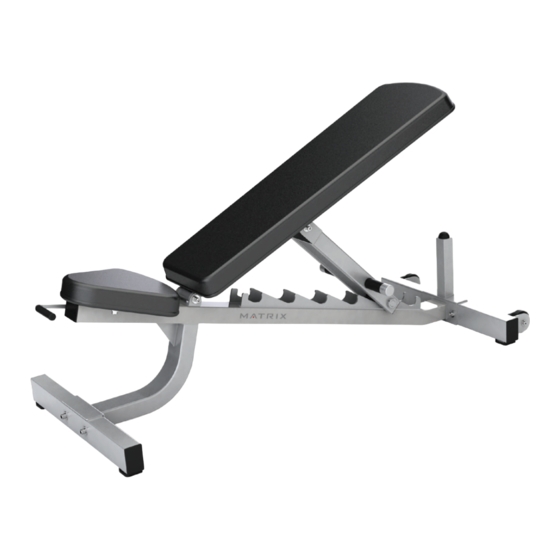

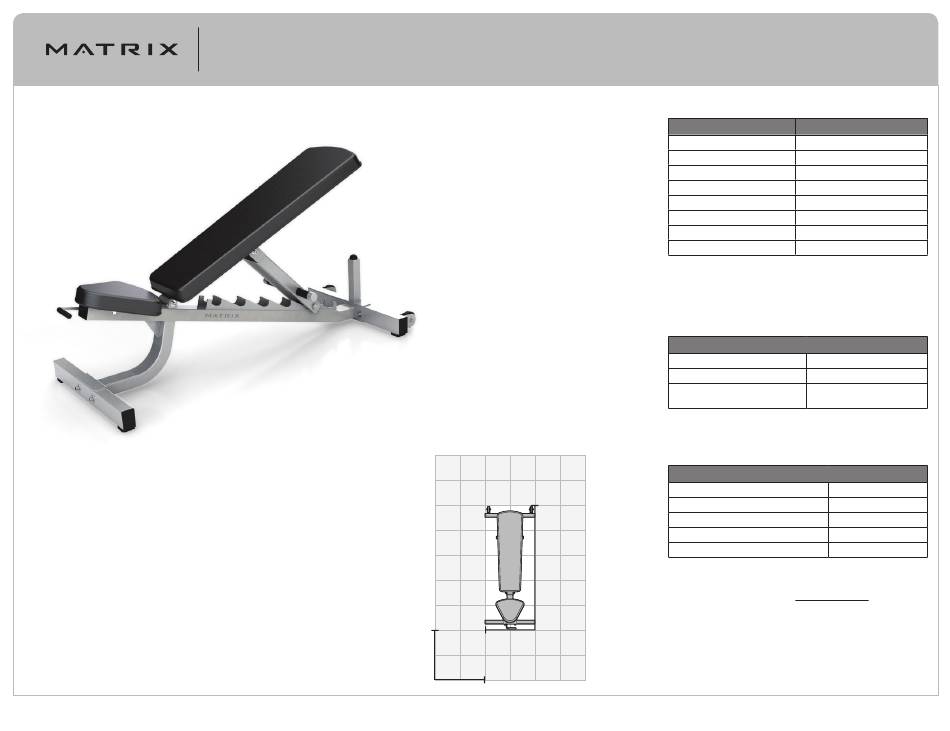

G1-FW153 / ADJUSTABLE INCLINE BENCH
FREE AREA
0.6 (2
M
WIDE PATH
PROPER USAGE
1. Do not exceed weight capacity of this
equipment.
2. If applicable, set safety stops to
appropriate height.
3. If applicable, adjust seat pads, leg
pads, foot pads, range of motion
adjustment, or any other type
of adjustment mechanisms to a
comfortable start position. Make
certain that the adjusting mechanism is
fully engaged to prevent unintentional
movement and to avoid injury.
4. Sit on bench (if applicable) and get into
appropriate position for exercise.
5. Exercise using no more weight than
you can safely lift and control.
6. In a controlled manner, perform
exercise.
7. Return weight to its fully-supported
start position.
TRAINING AREA
155
CM
(61")
61
CM
)
FT
(24")
MAINTENANCE CHECKLIST
ACTION FREQUENCY
Clean Upholstery * Daily
Inspect Cables Daily
Clean Guide Rods Monthly
Inspect Hardware Monthly
Inspect Frame Bi-Annually
Clean Machine As Needed
Clean Grips * As Needed
Lubricate Guide Rods † As Needed
* Upholstery & Grips should be cleaned with a mild soap and water
or a non-ammonia based cleaner.
† Guide rods should be lubricated with Teflon based lubricant. Apply the
lubricant to a cotton cloth and then apply up and down the guide rods.
PRODUCT SPECIFICATIONS
TECH SPECS
Maximum User Weight 159 kg / 350 lbs
Product Weight 39 kg / 86 lbs
Overall Dimensions 155 x 61 x 48 cm /
(L x W x H)* 61" x 24" x 19"
* Ensure a minimum clearance width of 0.6 meters (24") for access to
and passage around MATRIX strength equipment. Please note, 0.91
meters (36") is the ADA recommended clearance width for individuals
in wheelchairs.
TORQUE VALUES
M10 Bolt (Nyloc Nut & Flowdrill) 77 Nm / 57 ft -lbs
M8 Bolts 25 Nm / 18 ft-lbs
M8 Plastic 15 Nm / 11 ft-lbs
M6 Bolts 15 Nm / 11 ft-lbs
Pad Bolts 10 Nm / 7 ft-lbs
WARRANTY
For North America, please visit matrixfitness.com
for warranty information along with warranty exclusions
and limitations.
