VA RS IT Y SERIES

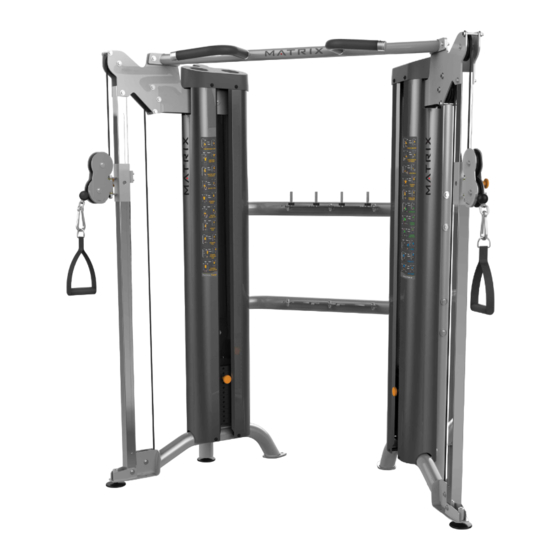

VY-6044-02 / FUNCTIONAL TRAINER 1:2
MAINTENANCE CHECKLIST
ACTION FREQUENCY
Clean Upholstery * Daily
Inspect Cables Daily
Clean Guide Rods Monthly
Inspect Hardware Monthly
Inspect Frame Bi-Annually
Clean Machine As Needed
Clean Grips * As Needed
Lubricate Guide Rods † As Needed
* Upholstery & Grips should be cleaned with a mild soap and
water or a non-ammonia based cleaner.
† Guide rods should be lubricated with Teflon based lubricant. Apply
the lubricant to a cotton cloth and then apply up and down the
guide rods.

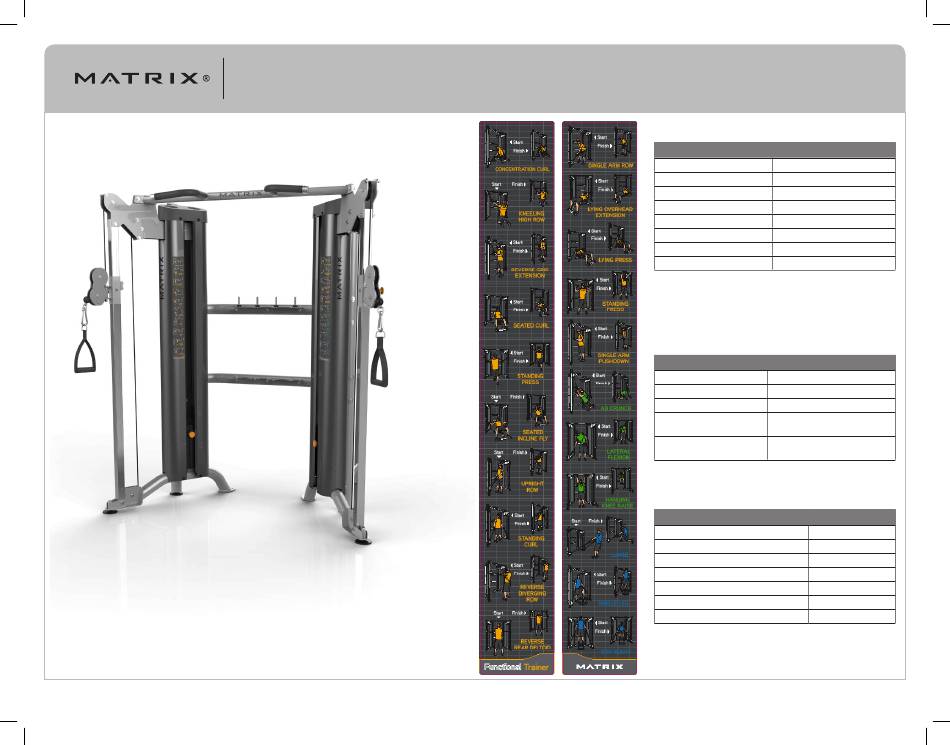

PRODUCT SPECIFICATIONS
TECH SPECS
Maximum User Weight 159 kg / 350 lbs.
Maximum Training Weight 71 kg / 156 lbs.
Product Weight 311 kg / 686 lbs.
Overall Dimensions 107 x 180 x 208 cm /
(L x W x H)* 42" x 71" x 82"
Weight Horn Diameter
47.63 mm / 1.875"
(Weight Plate Storage)
* Ensure a minimum clearance width of 914 mm / 36" for access
to and passage around MATRIX strength equipment.
WARRANTY
Valid in USA only
Frame (not coatings) * 10 years
Weight stacks 5 years
Pulleys 5 years
Pivot bearings 5 years
Any items not specified 3 years
Labor (excludes upholstery/cables/grips) 3 years
Upholstery/cables/grips/springs 1 year
* Frame is defined as the welded metal base of the unit and does
not include removable parts.
Rev 1.0 / 2013.06.12
