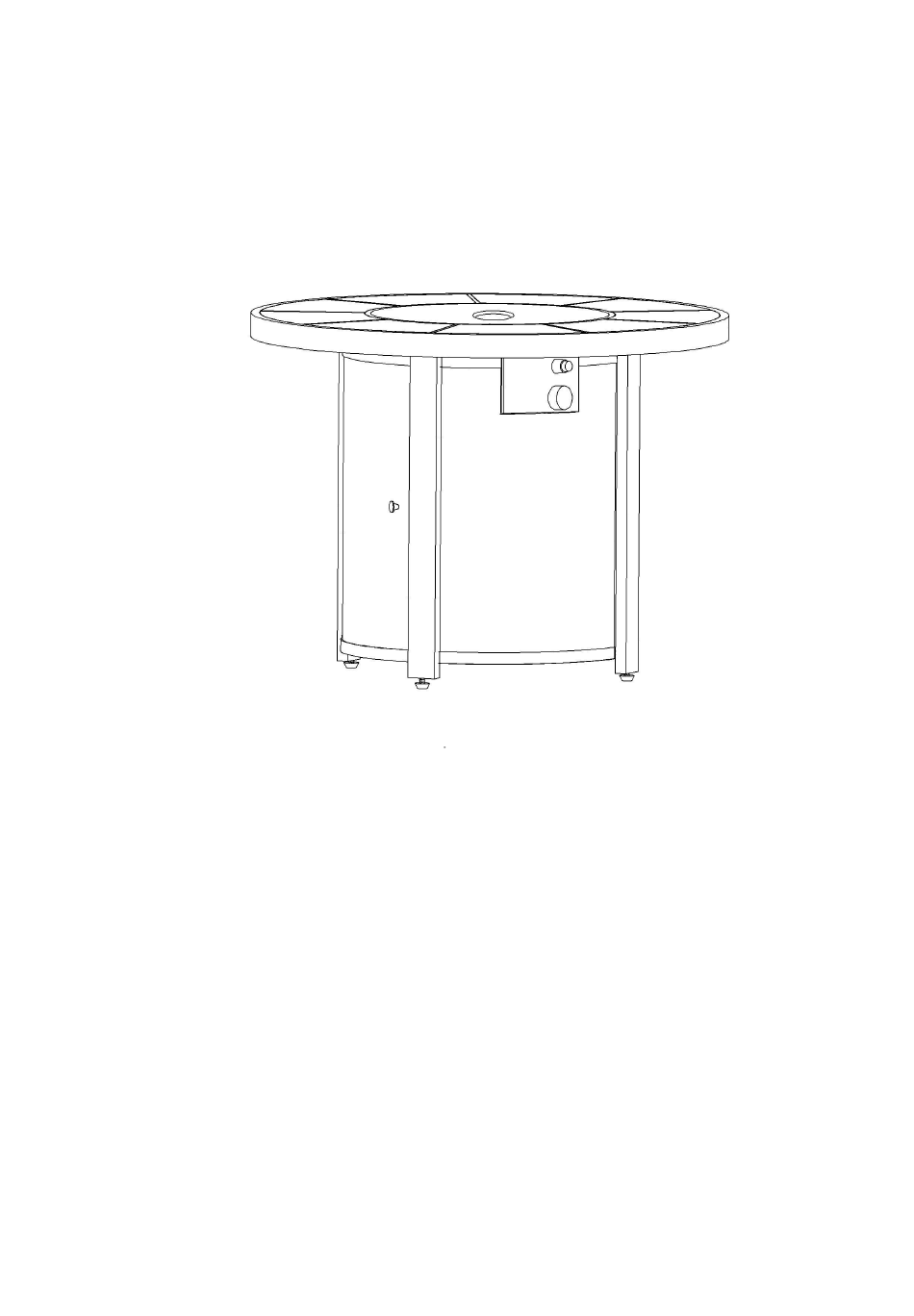

- Page 1 ASSEMBLY INSTRUCTION Outdoor Fire Pit Table User Guide ITEM#: P014-776 SAVE THESE INSTRUCTIONS Producthas been CSA tested and certified. THIS PRODUCTWAS MANUFACTURED BY JIAXING HERO IMP & EXP CO,.LTD FOR ASHLEY FURNITURE INDUSTRIES, INC. P014-776...
- Page 2 P014-776...
- Page 3 If no local codes exist, follow National Fuel Gas Code, ANSI Z223. 1. In Canada, installation must conform to local codes. If no local codes exist, follow the current National standards of CANADA CAN/CGA-B 149.2. P014-776...
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. Important Safety Information............5 2. Information about Propane............... 7 3. Specifications..................7 4. Parts List....................8 5. Installation....................9 6. Natural Gas Conversion..............13 7. Batteries....................14 8. Lighting Instructions................15 9. Maintenance..................16 10. Troubleshooting Guide..............16 P014-776... -
Page 5: Important Safety Information
Do NOT ignite or use the fire pit if the burner media (lava rock or fire ice) are wet. Ensure the burner media are completely dry before igniting as intense heat could cause the media to crack and pop. Always place the cover on the appliance when not in use in order to avoid water contacting the media. P014-776... - Page 6 Use only the burner listed in these instructions. Keep the fuel supply hose away from any heated surfaces. If you have any questions regarding the use of this unit, or find that your fire pit unit needs service, please contact manufacturer. P014-776...
-
Page 7: Information About Propane
CSA (Canadian Standards Association) certified to ANSI Z21.97•CSA 2.41- 2017 “ Outdoor Decorative Gas Appliances”. Figure 1 SPECIFICATIONS INPUT 30,000 Btu/hr Propane Regulator 11 inches water column Pressure Clearances to Sides: 35.88in. / 88cm Top: 72 in. / 182 . 9 cm combustible surfaces P014-776... -
Page 8: Parts List
PARTS IDENTIFICATION LIST Item Description Burner Cover Back Post Front Right Post Front Left Post Ignition Side Side Door Cylinder Holder 1 Box Lava Rock Adjustable Leveler PVC Cover Slate Knob Battery (AAA 1.5V) Flat Washer P014-776... - Page 9 Spring Washer 1/4 in x 15 mm Bolt 1/4 in x 20 mm Bolt #4 x 20 mm Screw Allen Wrench P014-776...
-
Page 10: Installation
(Q) and 6 flat wahsers (P) as shown on the right. 2. Secure the side (G), back post (C), ignition side (F), front left side (E) with 6 pieces ¼ in x 20 mm bolts (S), 6 spring washers (Q) and 6 flat wahsers (P). P014-776... - Page 11 #4 x 20mm (T) attaching from back of door. 5. Assemble the base frame to the top with 8 pieces ¼ in x 20 mm bolts (R), 8 spring washers (Q) and 8 flat wahsers (P). P a g e 11 of 49 P014-776...
- Page 12 8. Pour the box of lava rocks (J) into the fire table body around (B). Note: (A) Cover must be removed when burner is in operation. DANGER To ensure proper function, the guard on this burner should be free of lava rocks at all times. P014-776...
-
Page 13: Natural Gas Conversion
P014-776... -
Page 14: Batteries
BATTERIES Make sure the control knob is in the “OFF” position. Unscrew the push button cap on the ignition module located on the control panel to access the battery compartment. The ignition module requires one AAA size battery. P014-776... -
Page 15: Lighting Instructions
If igniter does not light burner, use a long match or long butane lighter. After burner ignites, adjust flame to desired flame with the control knob. To Extinguish Turn and push the control knob clockwise to the OFF position. Close cylinder valve, disconnect propane cylinder P014-776... -
Page 16: Maintenance
Burner won’t Tighten the thermocouple nut at Thermocouple stay lit after the back of the valve. connection at the main lighting controlvalve is loose Cover the burner with fire No lava rocks on Burner ices per the instructions P014-776...
