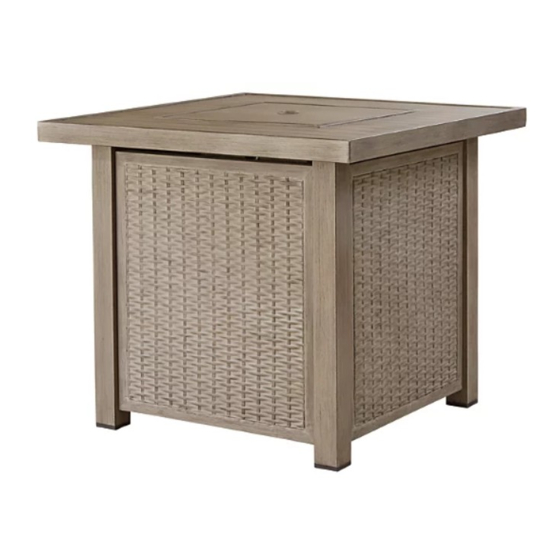

- Page 1 Outdoor Square Fire Pit User Guide ITEM#: P016-772 SAVE THESE INSTRUCTIONS Product has been CSA tested and certified. THIS PROODUCT WAS MANUFACTURED BY QUANZHOU SANSHUI COMPOSITE MATERIALS INDUSTRY AND TRADE CO.,LTD. FOR ASHLEY FURNITURE INDUSTRIES, INC. Page 1 of 46 P016-772...
- Page 2 IMPORTANT, FAILURE TO CAREFULLY READ, UNDERSTAND AND FOLLOW EVERY PART OF THIS DOCUMENT MAY RESULT IN PROPERTY DAMAGE, SERIOUS BODILY INJURY OR DEATH ASSEMBLY INSTRUCTIONS CSA MODEL S5-023 Installer: Leave these instructions with consumer. Consumer: Keep these instructions for future reference SAFETY INFORM ATION FOR USE WITH 20LB (9KG) PROPANE CYLINDER DANGER...
- Page 3 SAFETY INFOR MATION DANGER DANGER EXPLOSION-FIRE HAZARD CARBON MONOXIDE HAZARD This fire pit is a combustion appliance. All combustion Keep solid combustibles, such as building materials, appliances produce carbon monoxide (CO) during the paper of cardboard, a safe distance away from the combustion process.
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. Important Safety Information ..........5 2. Information about Propane ............ 7 3. Specifications ................7 4. Parts List ..................8 5. Hardware List ................9 6. Installation ..................10 Natural Gas Conversion .............14 Lighting Instructions ..............9. Maintenance ................ -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION The installation must conform with local codes or, in the absence of all applicable local codes, including, without limitation, with the National Fu el Gas Code, ANSI Z223.1/NFP A 54; International Fuel Gas Code; Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as applicable. - Page 6 Keep the fuel supply hose away from any heated surfaces. If you have any questions regarding the use of this unit, or find that your fire pit unit needs service, please contact Ashley Furniture Industries at the below number. 1 (800) 477-2222 Customer Service.
-
Page 7: Information About Propane
IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS A self-contained LP-gas cylinder for use with this appliance must have a capacity of 20 lbs. and must be equipped with a Type 1 connector and an OP D (overfill protection device). See Figure 1. The LP-gas supply cylinder to be used must be constructed and marked in accordance with the specification for LP- gas cylinders of the U.S. -
Page 8: Parts List
PARTS IDENTIFICATION LIST Description Item 2PCS Side Frame Control Panel Tank holder Table Top Door frame PVC Rain Cover Lava Rocks ( Weight: 3kg) Page 8 of 46 P016-772... -
Page 9: Hardware List
H A R D W AR E L I S T Item Description 4mm Allem Wrench 1/4"*16 Bolt 16PCS 1/4"*25 Bolt 4PCS ∅6.5*∅16 Flat Washer 20PCS 1/4" Lock Washer 20PCS Before beginning assembly of this product be sure all parts are present. Compare parts with package contents list and hardware contents list. -
Page 10: Installation
INSTALLATION 1. Attach Leg (A and C) to Side Frame (E) using 4pcs of 1/4"*16 Bolt (P), 4pcs of 1/4" Lock Washer (S) and 4pcs of ∅6.5*∅16 Flat Washer (R) by 4mm Allen Wrench (N). 2. Then attach to to another Side Frame (E) and Leg (B) using 4pcs of 1/4"*16 Bolt (P), 4pcs of 1/4"... - Page 11 INSTALLATION 4. Then attach to Tank holder(G) using 4pcs of 1/4"*25 Bolt (Q), 4pcs of 1/4" Lock Washer (S) and 4pcs of ∅6.5*∅16 Flat Washer (R) by 4mm Allen Wrench (N). 5. Then attach to Table Top(H) using 4pcs of 1/4"*16 Bolt (P), 4pcs of 1/4"...
- Page 12 INSTALLATION 7. Fix the bottom of door frame. Pour the Lava Rocks into fire bowl. DANGER To ensure proper function, the guard on this burner must not be covered by lava rocks. Cover the Lid (K) on the fire bowl. Page 12 of 46 P016-772...
- Page 13 INSTALLATION Make sure the control knob is in the “OFF” position. Open the door and place the propane gas tank(not included)into tank holder. Tighten preassembled wing screw clockwise to ensure the propane tank is secure. Replace the door after the tank is connected to the regulator.
-
Page 14: Natural Gas Conversion
NEVER USE A FLAME TO CHECK FOR LEAKS. This unit can be converted to operate on natual gas. If you wish to convert this unit, please contact your Ashley Furniture representative and order PA50-1 (sold separately). NATURAL GAS CONVERSION Natural gas conversion must be performed only by your natural gas provider or service company. -
Page 15: Lighting Instructions
Prior to turning gas on and attempting to light the appliance, make sure the appliance is outside, in a well ventilated area and free of any debris and is not in contact with or near any people, animals, materials or structures. Failure to adhere to the above instruction may result in property damage, serious bodily injury or death. -
Page 16: Maintenance
MAINTENANCE • Before performing any maintenance always disconnect propane gas tank. • Keep the heating item free and clear from combustible materials. • Visually inspect burner for obstructions and keep tank enclosure free and clear from debris. • Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner is completely cooled down.
