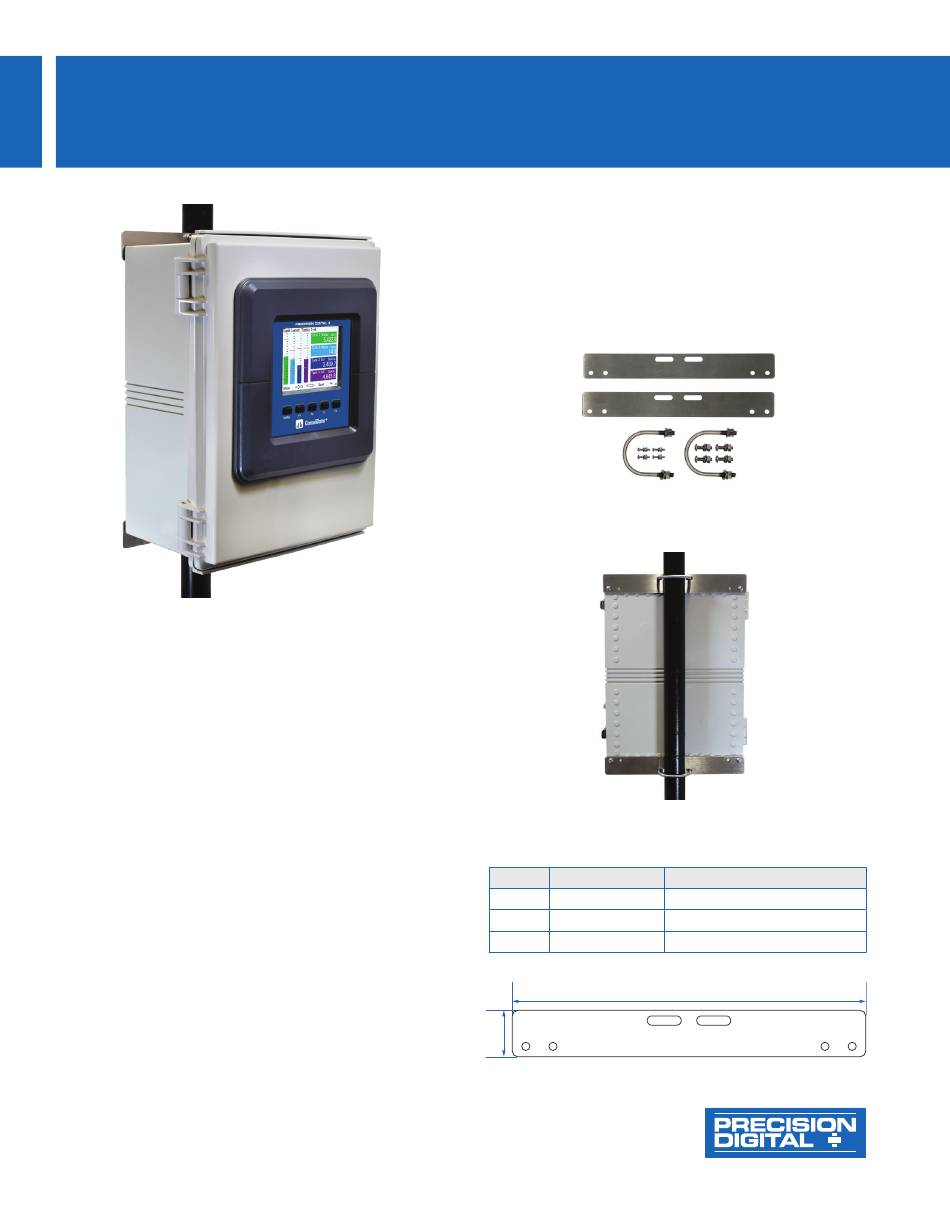

Precision Digital Corporation PDA6909 Instruction Manual

PDA6909 Stainless Steel Pipe Mounting Kit
Instruction Manual

KEY FEATURES

•
Mounts PD9000-ENC ConsoliDator+ Steel and Plastic
Enclosures to 1.5" or 2" Pipe
•
Suitable for Vertical Pipes
•
All Necessary Hardware Provided
•
Stainless Steel

OVERVIEW

The PDA6909 provides a convenient way to mount Precision
Digital PD9000-ENC ConsoliDator+ enclosures to vertical 1.5"
or 2" pipes. The mounting kit is made from stainless steel and
includes all necessary hardware to mount the ConsoliDator+
enclosure to the pipe.

MOUNTING INSTRUCTIONS

1. Attach the two mounting plates to the enclosure with the
provided hardware.
a. The mounting holes on the steel enclosures are found
on the flanges at the top and bottom of the enclosure.
The mounting holes for the plastic enclosure are located
on each corner of the backside of the enclosure.
b. Refer to Figure 3 for the location of the holes on the
plates for vertical pipe mounting.
2. Mount the two plates to the pipe with the provided U-bolts
and hardware.
PRECISION DIGITAL CORPORATION

CONTENTS

•
All hardware is stainless steel
•
Two 13 gauge mounting plates
•
Four (each) bolts, washers, lock washers & nuts to
mount PD9000-ENC ConsoliDator+ Enclosure to plates
•
Two U-bolts and four (each) washers, lock washers &
nuts to mount plates to pipe
Figure 1. PDA6909 Pipe Mounting Kit Contents

MOUNTING (Rear View)

Figure 2. Rear View of PDA6909 Pipe Mounting Kit

MOUNTING HOLES LOCATION

Hole ID Mount Orientation
1 Vertical Pipe
2 Vertical Pipe
3 Vertical Pipe
Units: Inches (mm)
1.70
3
(43)
1 2
Figure 3. Hole Location Table & Dimension Drawing
Enclosure Model
PDA1939, PDA2929, and PDA3939
PDA1909, PDA2909, and PDA2919
Slots for U-Bolt (All Models)
13.0
(330)
3
2
www.predig.com
1
