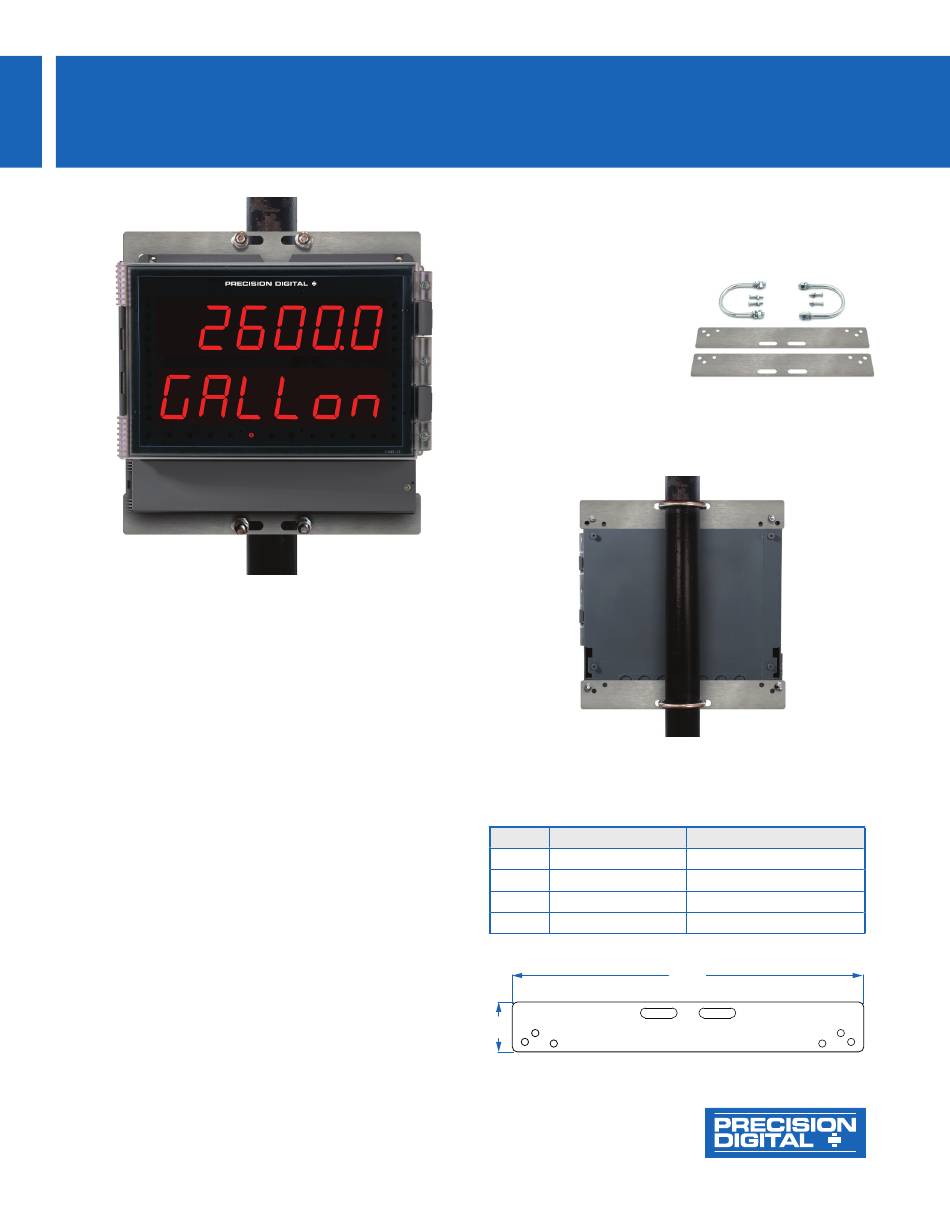

PDA6260-SS Stainless Steel Pipe Mounting Kit
Instruction Manual

KEY FEATURES

•
Mounts PD2 & PD4 Meters to 1.5" or 2" Pipe
•
Suitable for Horizontal or Vertical Pipes
•
All Necessary Hardware Provided
•
316 Stainless Steel

OVERVIEW

The PDA6260-SS provides a convenient way to mount
Precision Digital Series PD2 and PD4 NEMA 4X Large
Display Meters to horizontal or vertical 1.5" or 2" pipes. The
mounting kit is made from 316 stainless steel and includes
all necessary hardware to mount the meter to the pipe.

MOUNTING INSTRUCTIONS

1. Attach the two mounting plates to the PD2 or PD4
with the provided hardware.
a. The holes for the screws are found on the flange
at the top of the instrument and inside the small
door at the base of the instrument.
b. Refer to Figure 2 for the location of the holes
on the plates for vertical and horizontal pipe
mounting.
2. Mount the two plates to the pipe with the provided
U-bolts and hardware.
PRECISION DIGITAL CORPORATION

CONTENTS

•
All hardware is stainless
steel
•
Two mounting plates
•
Four (each) bolts, washers,
lock washers & nuts to
mount meter to plates
•
Two U-bolts and four
(each) washers, lock
washers & nuts to
mount plates to pipe

MOUNTING (Rear View)

Figure 1. Rear View of PDA6260 Pipe Mounting Kit

MOUNTING HOLES LOCATION

Hole ID Mount Orientation
1 Vertical Pipe
2 Vertical Pipe
3 Horizontal Pipe
1 Horizontal Pipe
Units: Inches (mm)
1.70
(43.2)
1
2
3
Figure 2. Hole Location Table & Dimension Drawing
Enclosure Hole Location
Top of Meter
Bottom of Meter
Top of Meter
Bottom of Meter
12 (305)
1
3
