Precision Digital Corporation PDA1002 Manual

PDA1002
DIN Rail Mounting Kit for 2 Modules
KEY FEATURES
•
Provides Convenient Way to Mount One or Two
Modules to a DIN Rail
•
Great for Serial Adapters & Converters and P
Expansion Modules
•
6" (152.4 mm) DIN Rail Included
•
Four Mounting Clips with Adhesive Backing
OVERVIEW
The PDA1002 DIN Rail Mounting Kit provides a convenient way to
mount Precision Digital expansion modules and serial adapters &
converters.
CONTENTS
The contents of the mounting kit are shown in Figure 1 and contain
enough parts to mount two modules and includes:
•
(1) 6" (152.4 mm) Length of DIN Rail
•
(4) Mounting Clips with Adhesive Backing

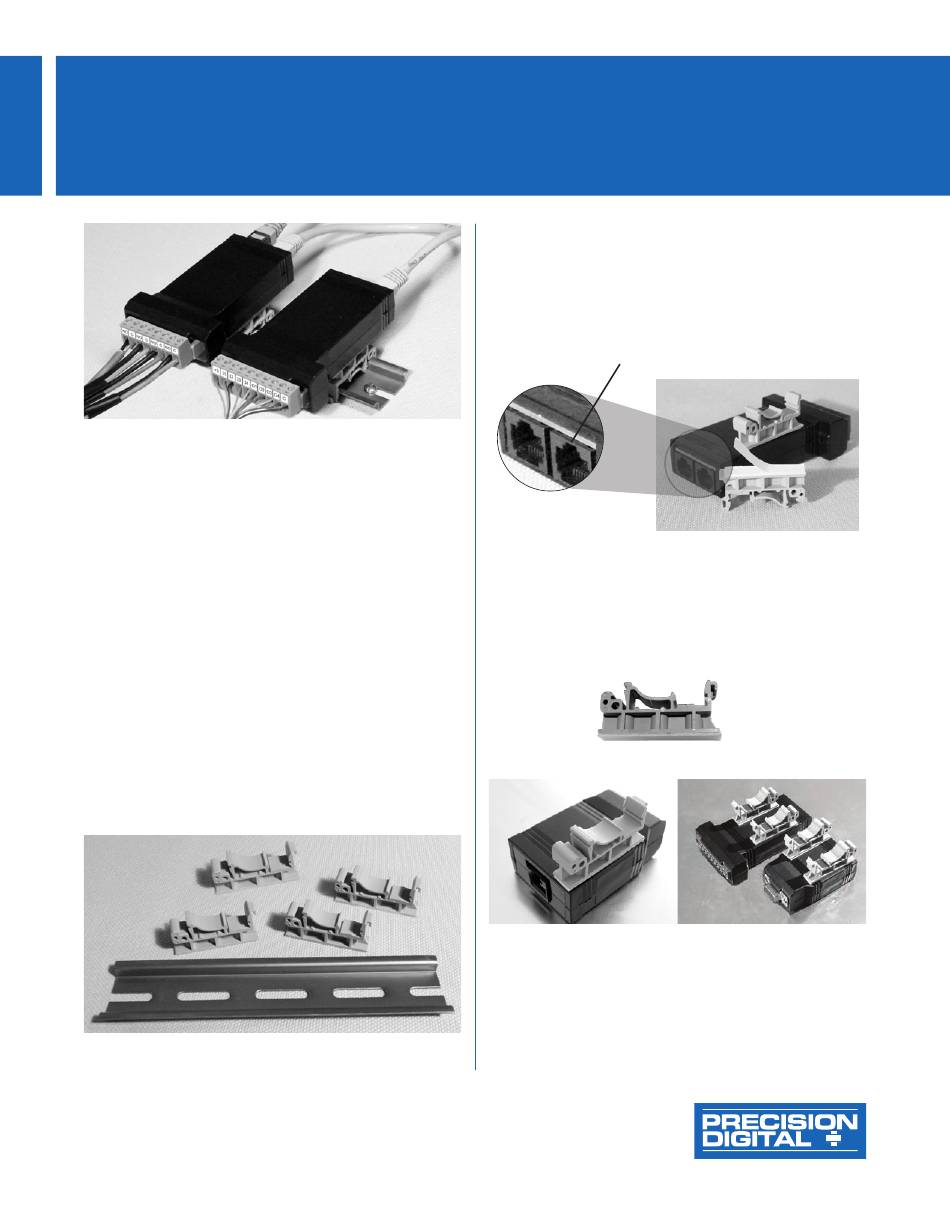

Figure 1. DIN Rail Mounting Kit for 2 modules
PRECISION DIGITAL CORPORATION
MOUNTING INSTRUCTIONS
Step 1: Mounting the DIN Rail Clips to Module
Place the expansion module on a flat surface with the bottom
surface facing up. The bottom surface can be identified as the
surface closest to the locking tab slot on the modular connector as
shown in Figure 2.
V
RO U
Figure 2. DIN Rail Clips Mounted to Expansion Module
Peel the protective layer off the adhesive tape on the bottom of
one of the mounting clips. With the hinge end of the clip, as shown
in Figure 3, facing the end of the module with the communications
connector, align the clip along the long (side) edge of the module
and centered lengthwise within the flat surface of the module as
shown in Figure 4.
Hinge End
Figure 3. Hinge & Latch End of DIN Rail Clip
Figure 4. DIN Rail Clips
Mounted to Module
Firmly press down on the clip for 10 seconds. Repeat this
procedure on the adjacent side. Once the clips are properly
installed, the modules with clips mounted should look similar to
one or both of the modules pictured in Figure 5. While the adhesive
is initially quite strong, this strength improves significantly over a
period of approximately 12 hours.
Locking Tab Slot
Latch End
Figure 5. Examples of Clips
Mounted to Modules
