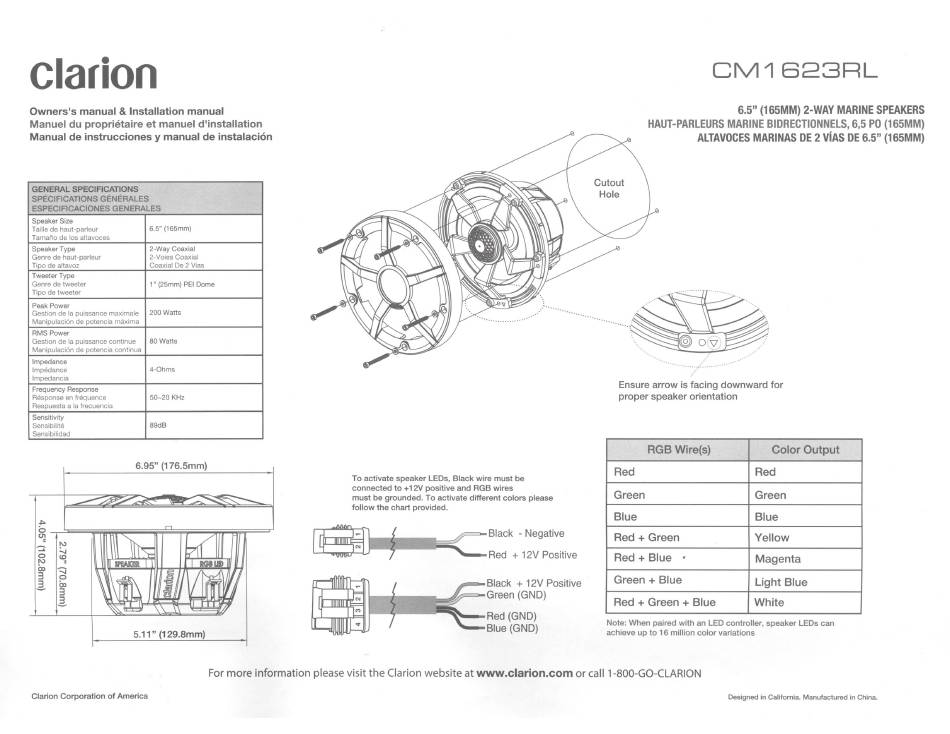

Clarion CM1623RL Owner's Manual

clarion
Owners's manual & Installation manual
Manuel du proprietaire et manuel d'installation
Manual de instrucciones y manual de instalaci6n
GENERAL SPECIFICATIONS
SPECIFICATIONS GENERALES
ESPECIFICACIONES GENERALES
Speaker Size
Taille de haut-parleur
6.5" (165mm)
Tamafio de los altavoces
Speaker Type 2-Way Coaxial
Genre de haut-parleur
2-Voies Coaxial
Tipo de altavoz Coaxial De 2 Vias
Tweeter Type
Genre de tweeter 1" (25mm) PEl Dome
Tipo de tweeter
Peak Power
Gestion de Ia puissance maximale
200Watts
Manipulaci6n de potencia maxima
RMS Power
Gestion de Ia puissance continue
80 Watts
Manipulaci6n de potencia continua
Impedance
Impedance
4-0hms
lmpedancia
Frequency Response
Response en frGquence 50-20KHz
Respuesta a Ia frecuencia
Sensitivity
Sensibitite
89dB
Sensibilidad
6.95" (176.5mm)
.,.
0
~
1\)
....
:...,
0
~
1\)
())
~
3
0
.2. ())
3
.2.
5.11" (129.8mm)
To activate speaker LEOs, Black wire must be
connected to
+
12V positive and RGB wires
must be grounded. To activate different colors please
follow the chart provided.
/
~0 ~
CBiack -Negative
~ •;•-~
Red + 12V Positive
Black + 12V Positive
'---"""'"--Green (GND)
Red (GND)
Blue (GND)
CM1623RL
6.5" (165MM) 2-WAY MARINE SPEAKERS
HAUT-PARLEURS MARINE BIDRECTIONNELS, 6,5 PO (165MM)
ALTAVOCES MARINAS DE 2 ViAS DE 6.5" (165MM)
Ensure arrow is facing downward for
proper speaker orientation
RGB Wire(s) Color Output
Red Red
Green Green
Blue Blue
Red+ Green Yellow
Red+ Blue
.
Magenta
Green+ Blue
Light Blue
Red
+
Green
+
Blue White
Note: When paired with an LED controller, speaker LEOs can
achieve up to 16 million color variations
For more information please visit the Clarion website at www.clarion.com or call 1-800-GO-CLARION
Clarion Corporation of America
Designed in California. Manufactured in China.
