MOUNTING METHOD
METHODE DE MONTAGE
Fiberglass panel
panneau du fibre de verre
Speaker
Haut-parleur
WIRING DIAGRAM
DIAGRAMME DE CABLAGE
Main unit
Unite principal
Mounting screw (4)
Vis de Montage (4)
Clarion Corporation of America
CMQ1620R

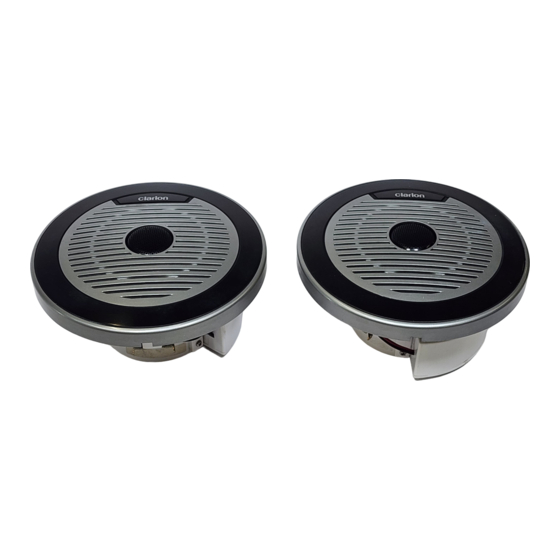

6.5" Coaxial Speaker
Haut-parleur coaxial 6.5"
Speed nut (4)
Ecrou de vitesse(4)
Speaker
Haut-parleur
