Front Panel - DJ-Tech SCOTT DJX 10 i User Manual

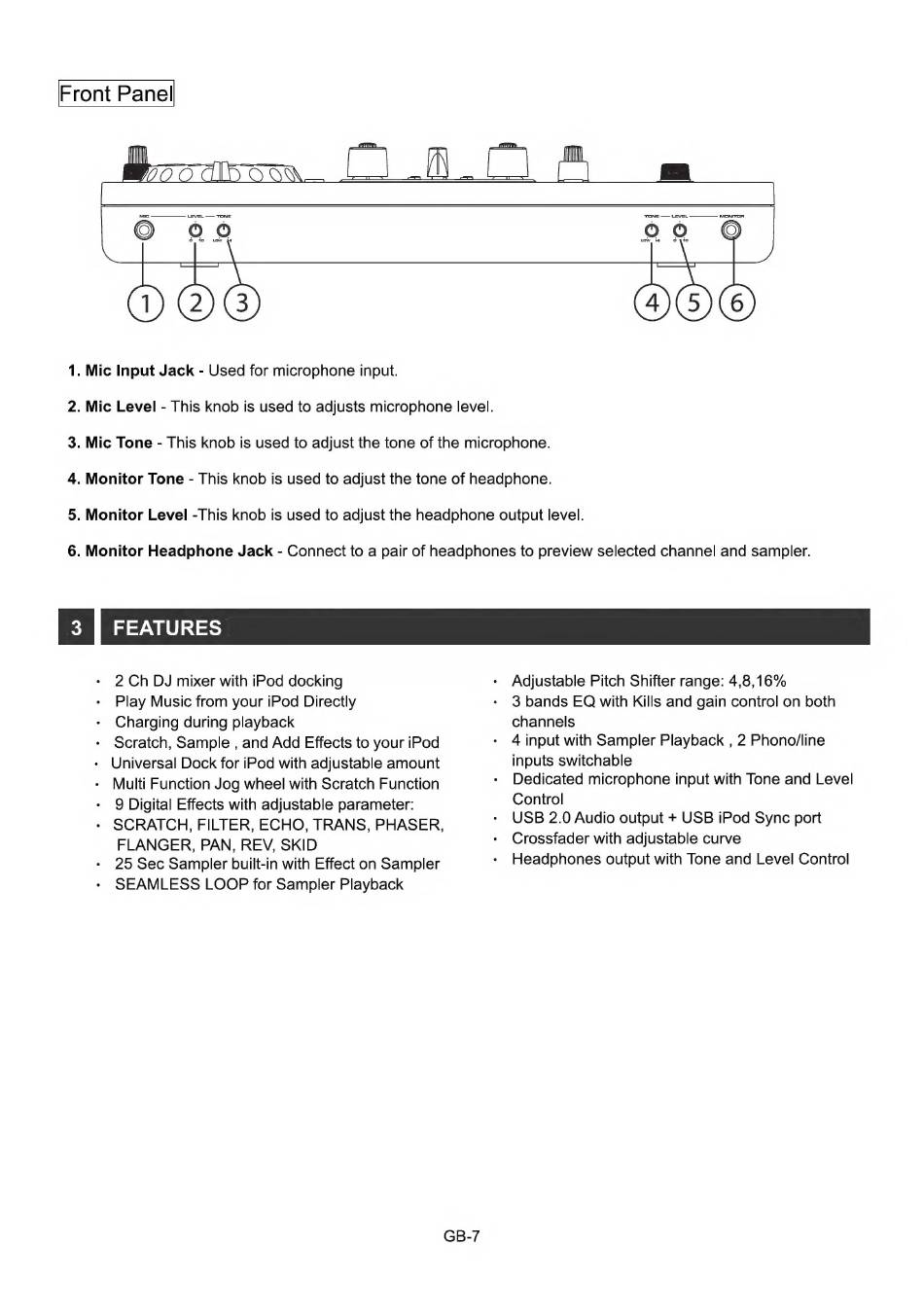

Front Panel
M
MW/70 AIS oSA
1. Mic Input Jack - Used for microphone input.
2. Mic Level - This knob is used to adjusts microphone level.
3. Mic Tone - This knob is used to adjust the tone of the microphone.
4. Monitor Tone - This knob is used to adjust the tone of headphone.
5. Monitor Level -This knob is used to adjust the headphone output level.
6. Monitor Headphone Jack - Connect to a pair of headphones to preview selected channel and sampler.
Pa [Features
2 Ch DJ mixer with iPod docking
Play Music from your iPod Directly
Charging during playback
Scratch, Sample , and Add Effects to your iPod
+ Universal Dock for iPod with adjustable amount
Multi Function Jog wheel with Scratch Function
9 Digital Effects with adjustable parameter:
+ SCRATCH, FILTER, ECHO, TRANS, PHASER,
FLANGER, PAN, REV, SKID
25 Sec Sampler built-in with Effect on Sampler
SEAMLESS LOOP for Sampler Playback
GB-7
Adjustable Pitch Shifter range: 4,8,16%
3 bands EQ with Kills and gain control on both
channels
4 input with Sampler Playback , 2 Phono/line
inputs switchable
Dedicated microphone input with Tone and Level
Control
USB 2.0 Audio output + USB iPod Sync port
Crossfader with adjustable curve
Headphones output with Tone and Level Control
